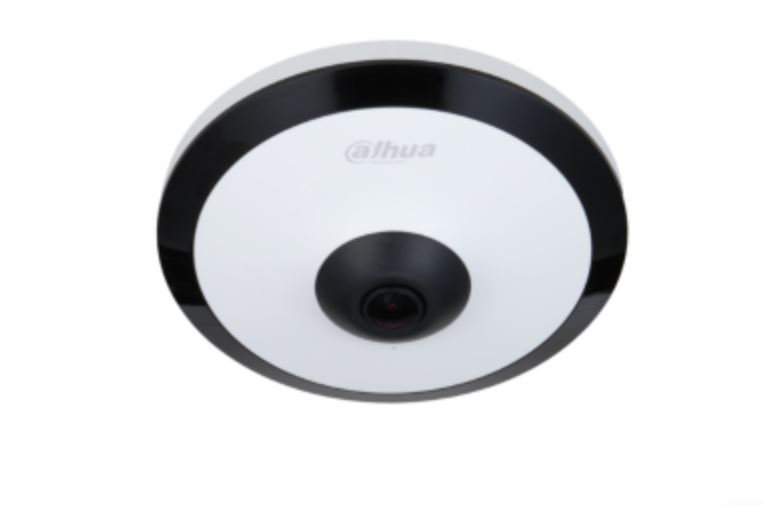

Fisheye IP AI 5 MP 1.4 mm IR mic

Name: Fisheye IP AI 5 MP 1.4 mm IR mic
Brand: Dahua
SKU: IPC-EW5541-AS
Price: 305.00 EUR
Availability: BackOrder

Dahua

COD: IPC-EW5541-AS Categoria: Telecamere IP speciali Tag: 5MP

305,00 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 610,00 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP Fisheye IR WizMind 5MP

> Sensore di immagine CMOS 5MP 1/2.7″, bassa illuminazione, alta definizione dell’immagine

> Uscita max. 5MP (2592 × 1944) @25/30 fps

> Codec H.265, alto tasso di compressione, bit rate ultra-basso

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Functions
Smart Codec	WDR
Camera
Image Sensor	1/2.7" 5Megapixel progressive CMOS
Max. Resolution	2592 (H) × 1944 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.006 Lux@F2.0 (Color, 30IRE)
Min. Illumination	0.0006 Lux@F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	10 m (32.8 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR LED)
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	1.4 mm
Max. Aperture	F2.0 Horizontal: 180°
Field of View	Vertical: 180° Diagonal: 180°
Iris Type	Fixed
Close Focus Distance	0.2 m (0.7 ft) Detect Observe Recognize Identify 28 m 11.2 m 5.6 m 2.8 m (91.9 ft) (36.7 ft) (18.4 ft) (9.2 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
Heat Map	Yes
Professional, Intelligent
IVS (Perimeter Protection)	detection of human) Support people counting in area, and displaying and
People Counting	outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas Work together with Smart NVR to perform refine
Intelligent Search	intelligent search, event extraction and merging to event videos.
Fisheye
Installation	Ceiling mount; wall mount; ground mount
Decoding Mode	Back-dewarp Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ;
Display Mode	360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+ Main stream (2592 × 1944 @1–25/30 fps)
Video Frame Rate	sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps)
Stream Capability	3 streams 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
Resolution	× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 3 kbps–8192 kbps
Video Bit Rate	H.265: 3 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
(SSA)	Auto/natural/street lamp/outdoor/manual/regional
White Balance	custom
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	PCM; G.711a; G.711Mu; G726
Alarm
Alarm Event	changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception
Network
SDK and API	Yes
Protocol
Security	Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Interoperability	Genetec; P2P
User/Host	20 (Total bandwidth: 64 M)
Storage
Browser	Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certification
Certification	2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC/PoE Basic power consumption: 3.6W (12V DC); 4.4W (PoE)
Power Consumption	Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)
Environment
Operating Conditions	–10°C to +50°C (14°F to +122°F)/Less than 95% RH
Strorage Conditions	–40°C to +60°C (–40°F to +140°F)
Structure
Casing	Metal + plastic
Dimensions	44.6 mm × Φ126.2 mm (1.8" × Φ5.0")
Net Weight	299 g (0.7 lb)
Gross Weight	441 g (1.0 lb) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Ordering Information
Type	Model Description 5MP WizMind IR Fisheye Network DH-IPC-EW5541P-AS CAMERA, PAL
Accessories
(Optional)	PFM321D 12V DC 1A Power Adapter Single-port Long Reach Ethernet over LR1002-1ET/1EC Coax Extender PFM900-E Integrated Mount Tester
Optional
PFB203W	PFB110W PFA152-E
Wall Mount	Ceiling Mount Pole Mount
PFM321D	PFM900-E LR1002-1ET/1EC
12V DC/1A Power	Integrated Mount Single-port Long Reach
Adapter	Tester Ethernet over Coax Extender
