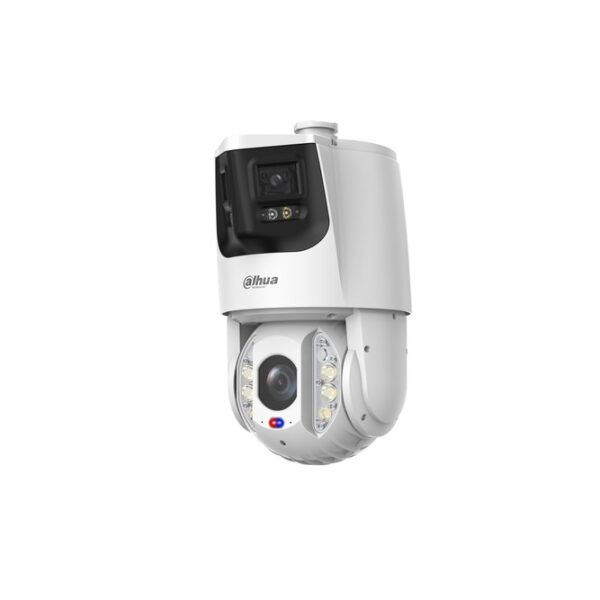

PTZ + panoramica IP AI 8/4 MP zoom 32x IR/LED mic

Name: PTZ + panoramica IP AI 8/4 MP zoom 32x IR/LED mic
Brand: Dahua
SKU: SDT6E432-8P-MB-A-PV1
Price: 1945.90 EUR
Availability: BackOrder

Dahua

COD: SDT6E432-8P-MB-A-PV1 Categoria: Telecamere IP speciali Tag: 4MP

1.945,90 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 3.891,80 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI Xinghan X-Spans Smart Dual Light da interno/esterno IP67 antivandalo IK10 con modulo panoramico e deterrenza attiva, sensori CMOS 1/2.7" / 1/2.8", risoluzione 8/4 MP a 25fps, H.265+, ottica fissa 2.8 mm ƒ1.4, luminosità 0.005 lux ƒ1.4 (panoramica) / ottica motorizzata 4.8~154 mm, zoom ottico 32x (contesto), portata illuminazione: IR/white light fino a 30 m (panoramica) / 250/100 m (contesto), 1 porta RJ-45 100/1000 Mbps, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono e speaker integrati, 2/3D NR, WDR 120 dB (contesto), IVS (protezione perimetrale), face detection, smart tracking, metadati video, densità veicoli, monitoraggio costruzioni, mappa distribuzione folla, SMD 4.0, AcuPick (con NVR AcuPick), auto patrol, allarme sonoro e luminoso, slot micro SD card (fino a 512 GB), alimentazione 36 Vdc/PoE++ <40 W, alimentatore, staffa da parete PFB303W e adattatore fissaggio PFA114 inclusi

Datasheet

Scheda Tecnica

Manuali

Functions
•	™
Camera
Image Sensor	CMOS
Pixel	Overview channel: 8 MP; Detail channel: 4 MP Overview channel: 4096 (H) × 1860 (V); Detail channel:
Max. Resolution	2560 (H) × 1440 (V)
ROM	Overview channel: 4 GB; Detail channel: 4 GB
RAM	Overview channel: 2 GB; Detail channel: 2 GB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive Overview channel: 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (illuminator on)
Min. Illumination	Detail channel: 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (illuminator on) Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light)
Illumination Distance	Detail channel: 100 m (328.08 ft) (warm light); 250 m (820.21 ft) (IR) Overview channel: Manual; Auto; Off
Illuminator On/Off Control	Detail channel: Zoom Prio; Manual; Auto; Off Overview channel: 2 (IR light); 2 (White light); Detail
Illuminator Number	channel: 6 (Dual light fusion)
Lens
Focal Length	154 mm
Max. Aperture	Overview channel: F1.4; Detail channel: F1.6-F4.0 Overview channel: H: 180°; V: 86°; Detail channel: H:
Field of View	55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°
Optical Zoom	Overview channel: NA; Detail channel: 32×
Focus Control	Auto; manual; semi-auto Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1
Close Focus Distance	m–1.5 m (0.33 ft–4.92 ft) Overview channel: NA; Detail channel: Auto; manual;
Iris Control	iris prio
Dori
Distance	3080.0 m 1216.6 m 616.0 m 308.0 m T ( 10104.99 ( 3991.47 ( 2021.00 ( 1010.50 ft) ft) ft) ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function
Dori
Distance	and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180°
Manual Control Speed	Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s
Preset Speed	Pan: 300°/s; Tilt:200°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan
Intelligence
Video Metadata	quality face snapshots. It extracts attributes from motor vehicles and non-motors, detecting up to 10 attributes for motor vehicles and 8 for non-motor vehicles. It also extracts attributes from human faces and bodies, detecting up to 6 attributes for faces, and 8 for bodies. Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving;
IVS (Perimeter Protection)	parking detection; people gathering; human alarm classification; linkage tracking Overview channel: NA Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and
Face Detection	8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real- time capturing, quality first, and selecting a preferred image among a group of snapshots. Overview channel:Vehicle density; parking upper limit;
Vehicle Density	traffic congestion; vehicle status alarm Detail channel: NA
Construction Monitoring	detected work uniform and the samples in the library is below the set threshold (that is, below the minimum compliance standard for work uniforms). The system supports detecting the attributes of work uniforms such as the color of the uniform, and whether or not the person is wearing a mask and wearing shoe covers. An alarm will be triggered when the target is detected as not meeting the set requirements. It also detects and triggers alarms when only one person is in the construction site, and when no one is present in the detection area such as when a worker leaves their post or an area is left unmanned.
Smart Tracking	Linkage tracking, Auto tracking Overview channel: Crowd map (Large-Scale AI Models), global crowd density; crowd density in area; people
Crowd Distribution Map	counting in area; crowd status Detail channel: NA
SMD	SMD 4.0 Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and
AcuPick	motor vehicles, and search through live and recorded videos to quickly locate targets Overview channel: NA Detail channel: After an IVS event occurs, the PTZ
Auto Patrol	camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time.
Active Deterrence
Light Warning	frequency: high, medium, low Offers 11 sound alarm and 10 custom sound alarms can
Sound Warning	be imported. Sound can be set from 0%–100%. Play times can be set from 1-10.
Video
Video Compression	H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	3 streams Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352
Resolution	× 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240) Overview channel: Main stream: 4096 × 1860 @(1– 25/30 fps) Sub stream 1: 1024 × 448/D1/VGA/CIF @(1– 25/30 fps) Sub stream 2: 2048 × 928/1080p/1.3M/
Video Frame Rate	720p @(1–25/30 fps); Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1–25/30 fps) Sub stream 2: 1080p/ 1.3M/720p/ @(1–25/30 fps)
Bit Rate Control	CBR/VBR Overview channel: H264: 128 kbps–16,384 kbps H265: ；
Video Bit Rate	51 kbps–13,312 kbps Detail channel: H264: 96 kbps– 16,384 kbps H265: 38 kbps–10,240 kbps; Overview channel: Auto; Color; B/W; Electronic
Day/Night	Detail channel: Auto; Color; B/W; Electronic
BLC	Yes
WDR	Overview channel: DWDR; Detail channel: 120 dB
HLC	Yes Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail
White Balance	channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Overview channel: Auto; manual; gain prio Detail
Gain Control	channel: Auto; manual; gain prio Overview channel: 2D NR; 3D NR
Noise Reduction	Detail channel: Auto: 2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes Overview channel: NA
Image Stabilization	Detail channel: Gyroscope EIS
Defog
Digital Zoom	Overview channel: NA; Detail channel: 16×
Image Rotation	Overview channel: NA Detail channel: 180° Up to 24 areas can be set, with up to 8 areas in the
Privacy Masking	same view Multiple colors and mosaic available
S/N Ratio	≥55 dB
Audio
Audio Compression	G.722.1, G.729
Built-in MIC	Yes
Built-in Speaker	Yes
Network
Network Port	RJ-45 (100/1,000 Base-T) HTTP;HTTPS;TCP/ IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.
Network Protocol	1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;NFS
Interoperability	ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	versions; Firefox 52 and later versions; Safari 10 and later versions
Management Software	DMSS;DSS Pro
Mobile Client	iOS;Android
Port
RS-485	1 (Bit range: 1200 bps–9600 bps) 1 channel (LINE IN, bare wire,built-in mic (mutually
Audio Input	） exclusive) 1 channel (LINE OUT,bare wire;built-in speaker
Audio Output	） (mutually exclusive)
Alarm Input	2 (on-off value input: 0–5 VDC)
Alarm Output	1 channel Capture; recording; send email; preset; tour; pattern;
Alarm Linkage	alarm digital output; audio; warning light Motion/tampering detection; network disconnection
Alarm Event	detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	36 VDC/2.23 A ± 25%; PoE++(802.3bt) Basic power consumption: 18 W
Power Consumption	Max. power consumption: 40 W (IR + intelligent functions + PTZ + Siren and Light Active Deterrence)
Power Adapter	Included
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95% IP67;IK10;TVS 6000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Casing Material	Plastic; aluminum alloy 247 mm × 202 mm × 359.8 mm (9.72" × 7.95" × 14.17")
Product Dimensions	(L × W × H)
Net Weight	5.3 kg (11.68 lb)
Gross Weight	7.12 kg (15.7 lb)
Ordering Information
Type	Model Description 8+4MP 32x Smart DH-SDT6E432-8P-MB-A- Dual Illumination Active
Network PTZ Camera	PV1 Deterrence X-Spans Network PTZ Camera PFB303W Wall Mount Bracket DC36V/2.23A Power Adapter PFA114 Mount Adapter
Accessories
Type	Model Description DH-PFA150 Pole Mount Bracket
Accessories
Included:	DC36V/2.23A PFA114
Wall Mount Bracket	Power Adapter Mount Adapter
DH-PFA126	DH-PFA150 DH-PFA151
Water-proof Junction Box	Pole Mount Bracket Corner Mount Bracket
DH-PFB300C	DH-PFB301S-E DH-PFB303S
Ceiling Mount Bracket	Plane Mount Bracket Parapet Mount Bracket
