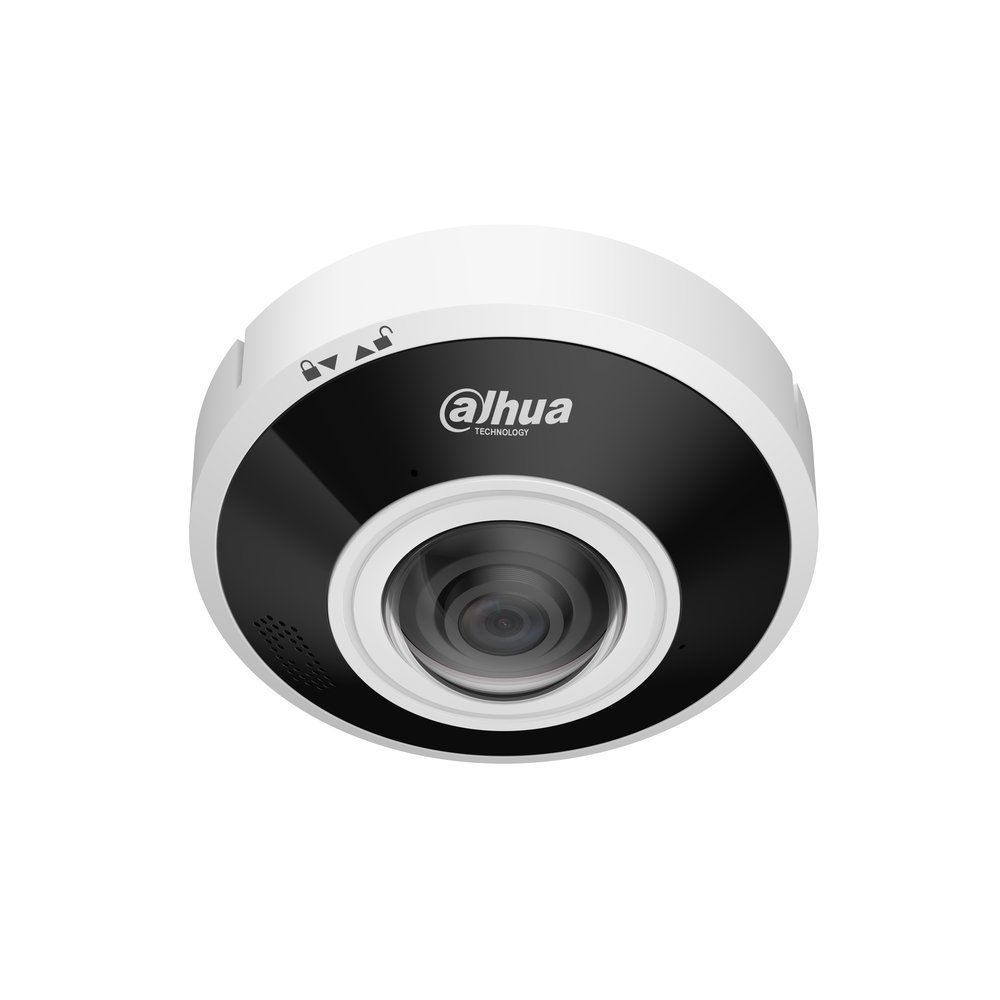

Telecamera dome Fisheye IP AI WizMind da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.5", risoluzione 6 MP a 25fps, AI coding, ICR, ottica fissa M12 1.68 mm ƒ2.0, luminosità 0.006 lux ƒ2.0 (0 con IR On), portata IR fino a 15 m, 1 porta RS485, 1 porta RJ-45 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono e speaker integrati, privacy mask 4 mosaici + 4 blocchi di colore, 3D NR, WDR 120 dB, slot micro SD card (fino a 1 TB), EPTZ, IVS (protezione perimetrale), people counting, heat map, alimentazione 12 Vdc/PoE <10.1 W
| Camera | |
| Image Sensor | 1/2.5" CMOS |
| Max. Resolution | 2560 (H) × 2560 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.006 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.0006 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 1.68 mm: Up to 15 m (49.21 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED) |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 1.68 mm |
| Max. Aperture | F2.0 |
| Field of View | 1.68 mm: H: 185°; V: 185°; D: 185° |
| Iris Control | Fixed |
| Close Focus Distance | 1.68 mm: 0.3 m (0.98 ft) Recogniz |
| Lens | |
| DORI Distance | standard system (EN-62676-4)for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| EPTZ | Yes Tripwire, intrusion (the two functions support accurate |
| IVS (Perimeter Protection) | detection of human) Tripwire people counting, generating and exporting report (day/month/year); queue management and people counting in area, generating and exporting |
| People Counting | report (day/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Smart Search | intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | by sub stream) AI H.265; AI H.264 |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Max Resolution in O Mode by Default Main stream: 2560 × 2560@(1–25/30 fps) sub stream: 1440 × 1440@(1–25/30 fps) third stream: 1440 × 1440@(1–25/30 fps) Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: 1920 × 1440@(1– 25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1– 25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1– 25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1– 25/30 fps); Resolution of 2 Split Windows in 2R Mode: Sub stream: |
| Video Frame Rate | Panoramic View and Split Window: 2560 × 960@(1– 25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1– 25/30 fps); third stream: Panoramic View and Split Window: 2560 × 960@(1– 25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1– 25/30 fps); Resolution of 4 Split Windows in 4R Mode: sub stream: Panoramic View and Split Window: 1920 × 1440@(1– 25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1– 25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1– 25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1– 25/30 fps); |
| Streaming Capability | 3 streams 6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 |
| Resolution | × 768); 1.3M (1920 × 720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200) |
| Bit Rate Control | VBR;CBR;ABR H.264: 3 kbps–16384 kbps; |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 mosaics + 4 color blocks |
| Fisheye | |
| Installation | Ceiling mount; wall mount; ground mount |
| Decoding Mode | Front-dewarp;Back-dewarp Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye image view; P: Panoramic image view; R: Region image view. |
| Display mode | Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
| Alarm | |
| Alarm Event | intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 |
| Storage | |
| Browser | Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC, 1 A; PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 1.4 W (12 VDC), 2.6 W (PoE); |
| Power Consumption | Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | Φ122 mm × 53.3 mm (Φ4.80" × 2.10") |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.75 kg (1.65 lb) |
| Ordering Information | |
| Type | Model Description 6MP IR Fisheye WizMind |
| IP CAMERA | DH-IPC-EBW5641-AS Network Camera |
| Type | Model Description DH-PFB220C Ceiling Mount Bracket DH-PFA109 Mount Adapter DH-PFA150 Pole Mount Bracket DH-PFA156 Pole Mount Bracket |
| Accessories (Optional) | DH-PFB2204W Wall Mount Bracket DH-PFA137 Junction Box DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card |
| Accessories | |
| Optional: | DH-PFA137 DH-PFA150 |
| Mount Adapter | Junction Box Pole Mount Bracket |
| DH-PFA156 | DH-PFB2204W DH-PFB220C |
| Pole Mount Bracket | Wall Mount Bracket Ceiling Mount Bracket |
| DH-PFM320D-EN | DHI-TF-P100/1TB PFM900-E |
| DC12V2A power adapter | MicroSD Card Integrated Mount Tester 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
