PTZ IP AI 4 MP zoom 15x ATEX IECEx

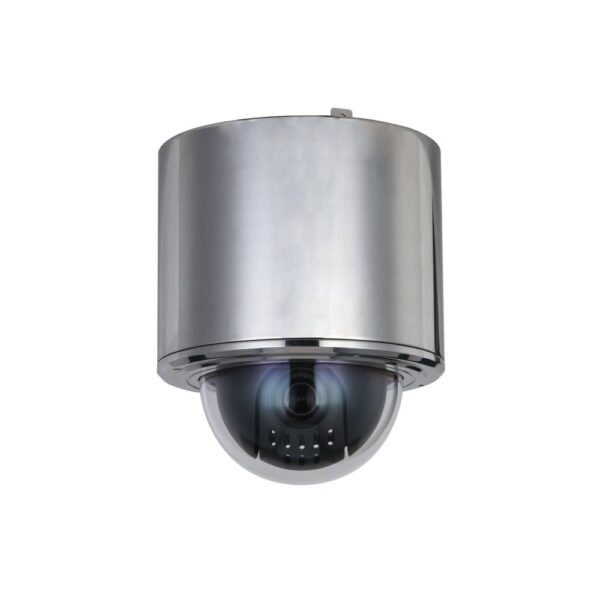

Name: PTZ IP AI 4 MP zoom 15x ATEX IECEx
Brand: Dahua
SKU: ESD41A415-HNR
Price: 4003.43 EUR
Availability: BackOrder

Dahua

COD: ESD41A415-HNR Categorie: Telecamere IP speciali, Videosorveglianza Tag: 4MP

4.003,43 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 8.006,86 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera PTZ IP AI Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx con case in acciaio inossidabile 316L, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -0°~90°, auto flip 180°, H.265+, zoom ottico 15x (4.77~70.4 mm), luminosità 0.05 lux ƒ1.6, 1 porta LAN 10/100 Mbps, 1 porta RS485, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio, 2/3D NR, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), face detection, metadati video, Auto Tracking 3.0, SMD 4.0, Quick Pick, micro SD card (512 GB), alimentazione 100~240 Vac/PoE <19 W, staffa da montaggio a parete SDPJ009 inclusa

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/2.8" CMOS 2560 (H) × 1440 (V)
Max. Resolution	4MP
ROM	1GB
RAM	4GB
Electronic Shutter Speed	1/3s~1/100000s
Scanning Mode	Progressive 0.05lux@F1.6 (Color, 30 IRE);
Minimum Illumination	0.005lux@F1.6 (B/W, 30 IRE)
Lens
Focal Length	4.77mm~71.55 mm
Aperture	F1.6~ F2.8
Field of View	H: 60.4°–4.3°; V: 34.5°–2.4°; D: 68.5°–5°
Optical Zoom	15x
Focus Control	Auto/Semi-auto/Manual
Close Focus Distance	1m-1.5 m (3.28 ft-4.92 ft)
Iris Control	Auto/Manual Detect Observe Recognize Identify 1431 m 565 m 286 m 143 m (4694.88 ft) (1853.67 ft) (938.32 ft) (469.16 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Pan: 0° to 360° endless ; Tilt: 0° to +90°, auto flip 180°
Manual Control Speed	Panorama: 0.1°/s–130°/s; Tilt: 0.1°/s–57°/s
Manual Control Speed	Panorama: 0.1°/s–130°/s; Tilt: 0.1°/s–57°/s
Preset Speed	Pan: 280°/s; Tilt: 216°/s
Presets	300
Tour	8(up to 32 preset per tour)
Pattern Number	5
Scanning Number	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning DH-SD
Artifical Intelligence
Perimeter Protection	types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Auto Tracking	Support
General Intelligence
Event Trigger	Network disconnection, IP address conflict, illegal access, and storage anomaly.
General IVS	Object Abandoned/Missing
Video
Compression	H.265/H.265+/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability	3 Streams 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
Resolution	× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M(1–25/30fps), 1080P/1.3M/720P(1– 25/30fps)
Frame Rate	Sub stream 1: D1/CIF(1–25/30fps) Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/ CIF(1–25/30fps)
Bit Rate Control	Variable Bit Rate/Constant Bit Rate H.264: 96 kbps–14848 kbps
Bit Rate	H.265: 38 kbps–8960 kbps
Day/Night	Support
BLC	Support
WDR	120dB
HLC	Support Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
White Balance	Natural/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Electronic Image	Support
Optical Defog	Electronic Defog
Digital Zoom	15x
Flip	0°/180°
Privacy Masking	Up to 24 areas
Certifications
Certification	CE; IECEX/ATEX; NEMA 4X
Audio
Audio Compression	PCM; MPEG2-Layer2
Port
Audio In	1 (LINE IN; bare wire)
Audio Out	1 (LINE OUT; bare wire)
Alarm Port	2 alarm input port; 1 alarm output port
Network
Ethernet Port	1 RJ-45 Port 10/100Base-T IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP;
Protocol
Interoperability	ONVIF Profile S&G; CGI
Streaming Method	Unicast/Multicast
Max. User Access	20 (Total bandwidth 48M)
Edge Storage	FTP; Micro SD card (256G); P2P IE7 and newer versions
Browser	Chrome 42 and older versions Firefox 52 and older versions
Safari
Management Software	DSS Easy4ip
Smart Phone	IOS/Android/Windows Phone
Electrical
Power Supply	100-240 VAC or PoE (AT standard) Basic: 18 W Max: 21 W (Basic power consumption + PTZ
Power Consumption	operation )
Environment
Operating Conditions	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%RH IP68, TVS 6000 V lightning proof; surge protection;
Ingress Protection	voltage transient protection
Construction
Dimensions	ø184*277.4mm Net Weight: 6.9 kg (15.21 lb);
Weight	Gross Weight: 9.4 kg (20.72 lb)
Casing	SUS304/SUS316L
Ordering Information
Type	Model Description 4MP 15X Starlight NETWORK PTZ
SD6AL Series	DH-ESD41A415-HNR
