Fisheye IP AI 12 MP 1.29 mm IR mic
1.214,51 € IVA inclusa
Fisheye IP AI 5 MP 1.4 mm IR mic
305,00 € IVA inclusa
Saldi
Fisheye IP AI 12 MP 1.85 mm IR mic
1.116,30 € IVA inclusa

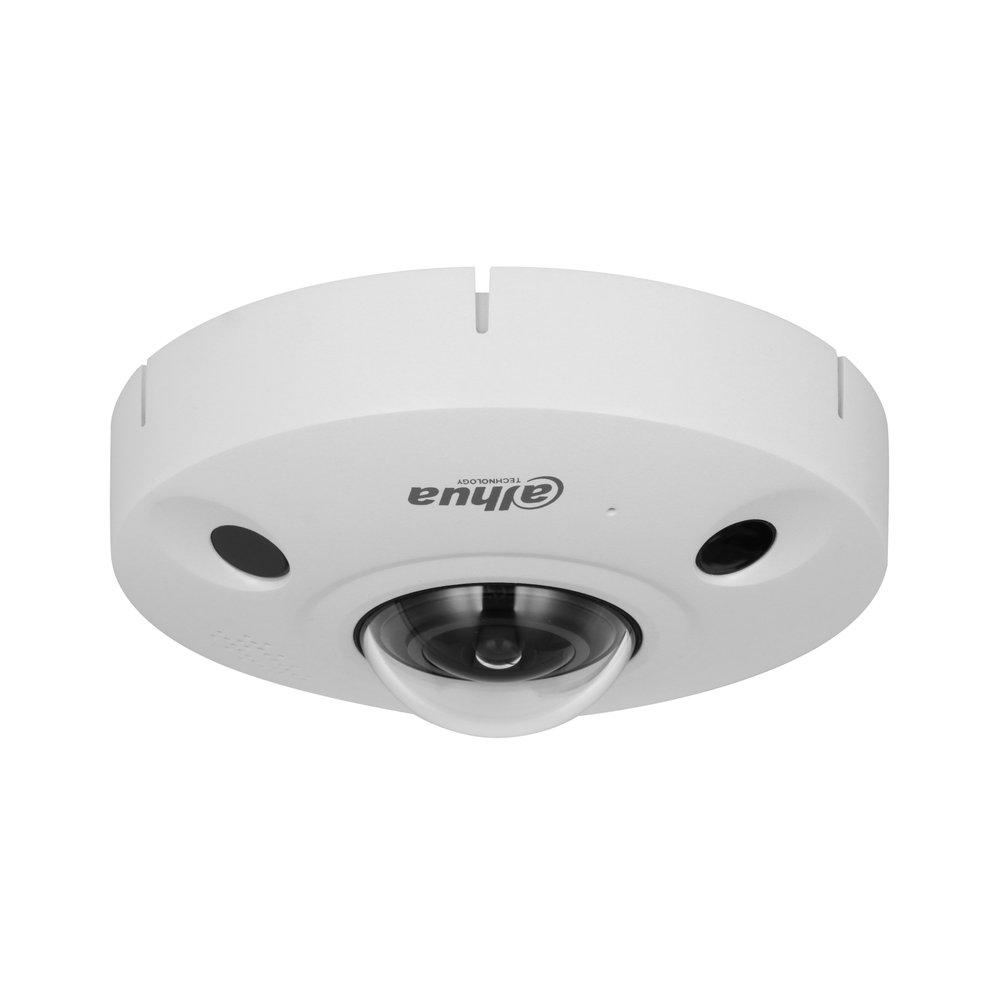

Telecamera dome Fisheye IP AI WizMind da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.7", risoluzione 12 MP a 25fps, H.265+, ICR, ottica fissa M12 1.85 mm ƒ2.0, luminosità 0.01 lux ƒ2.0 (0 con IR On), portata IR fino a 10 m, 1 porta LAN 10/100/1000 Mbps, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, privacy mask 4 aree, 3D NR, micro SD card (256 GB), IVS (protezione perimetrale), people counting multi-area, gestione code, heat map, alimentazione 12 Vdc/PoE+ <13.9 W
| Camera | |
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 4000 (H) × 3000 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.01 lux@F2.0 (Color, 30 IRE); |
| Min. Illumination | 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 1.85 mm: Up to 10 m (32.81 ft) (IR LED) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 3 (IR LED) |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 1.85 mm |
| Max. Aperture | F2.0 |
| Field of View | 1.85 mm: H: 185°; V: 180° |
| Iris Control | Fixed |
| Close Focus Distance | 1.85 mm: 0.4 m (1.31 ft) |
| Smart Event | |
| Heat Map | Yes |
| Intelligence | |
| IVS (Perimeter Protection) | detection of human) Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time. Supports 4 rules to count the number of people in |
| People Counting | area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time. Supports 4 queue management rules to count number of people queuing and queue time in real time, and it will trigger alarm linkage when the number of people queued or queue time exceeds the threshold. It can |
| People Counting | or custom time. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos. |
| Fisheye | |
| Installation | Ceiling mount; wall mount; ground mount |
| Decoding Mode | Front-dewarp;Back-dewarp Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+3R. 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye image view; P: Panoramic image view; R: Region image view. |
| Display mode | Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid). |
| Video | |
| Video Compression | sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 4000 × 3000@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–17/17 fps) Fisheye mode: 1O (4000 × 3000) 1P (4096 × 1024) 2P (2432 × 2432) |
| Video Frame Rate | 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams 12M (4000 × 3000); 8M (3280 × 2480); 6M (2880 × |
| Resolution | 2160); 3M (2048 × 1536) ; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H264: 8 kbps–16384 kbps |
| Video Bit Rate | H265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM; G.723 |
| Alarm | |
| Alarm Event | intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20.0 |
| Storage | |
| Browser | Firefox: 48.0.2 Edge: 42.17134.1.0 |
| Management Software | Smart PSS;DSS;DMSS Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) 2 channels in: supports wet contact connection (max |
| Alarm Input | load 5 mA 3–5 VDC); supports dry contact connection 2 channels out: dry contact, max load 1,000 mA 30 |
| Alarm Output | VDC/500 mA 50 VAC |
| Power | |
| Power Supply | 12 VDC/PoE+ Basic: 6.5 W (12 V DC); 6.1 W (PoE+) |
| Power Consumption | Max. (ICR + IR intensity): 13 W (12V DC); 13.9 W (PoE+) Heating: 3 W (12 V DC); 3 W (PoE+) |
| ePoE | No |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35" × Φ5.90") |
| Net Weight | 0.79 kg (1.74 lb) |
| Gross Weight | 1.21 kg (2.67 lb) |
| Ordering Information | |
| Type | Model Description 12MP IR Fisheye WizMind |
| IP CAMERA | DH-IPC-EBW81242-AS-S2 Network CAMERA DH-PFB300C Ceiling Mount Bracket DH-PFA100 Mount Adapter DH-PFA151 Corner Mount Bracket G3416GW G3/4" Water Joint DH-PFB302S Wall Mount Bracket DH-PFA150 Pole Mount Bracket |
| Accessories (Optional) | DH-PFA152-E Pole Mount Bracket DH-PFA132-E Junction Box DH-PFM320-020EN DC12V 2A Power Adapter DH-PFM320D-EN DC12V 2A Power Adapter PFM900-E Integrated Mount Tester DHI-TF-W100-256GB MicroSD Card DHI-TF-P100/256GB MicroSD Card |
| Accessories | |
| DH-PFB300C | DH-PFA100 DH-PFA151 |
| Ceiling Mount Bracket | Mount Adapter Corner Mount Bracket |
| G3416GW | DH-PFB302S DH-PFA150 |
| G3/4" Water Joint | Wall Mount Bracket Pole Mount Bracket |
| Optional: | DH-PFA132-E DH-PFM320-020EN |
| Pole Mount Bracket | Junction Box DC12V 2A Power Adapter |
| DH-PFM320D-EN | PFM900-E DHI-TF-W100-256GB |
| DC12V 2A Power Adapter | Integrated Mount Tester MicroSD Card |
