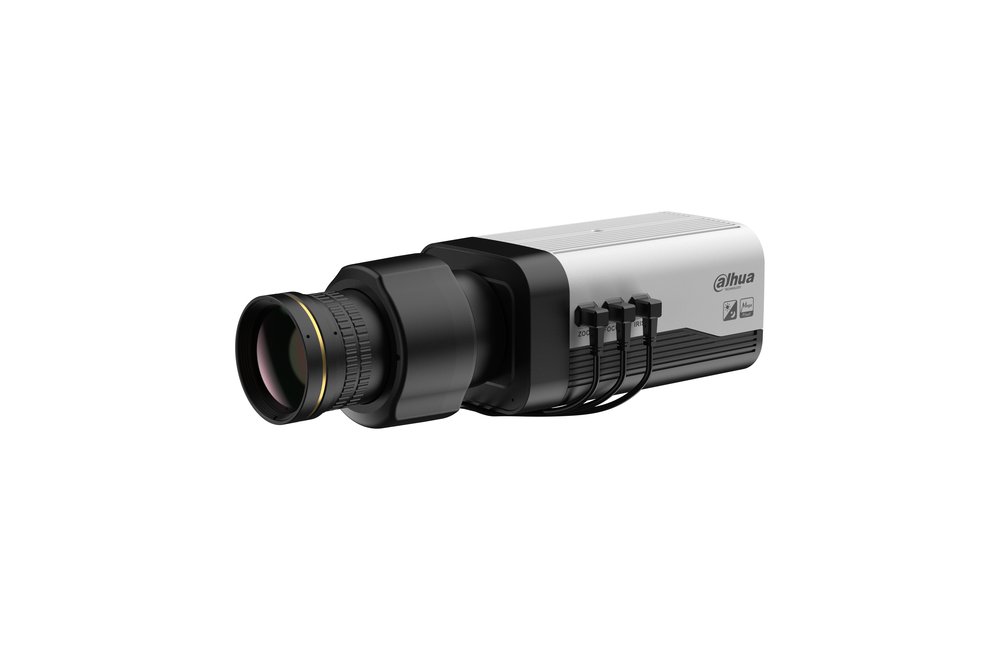

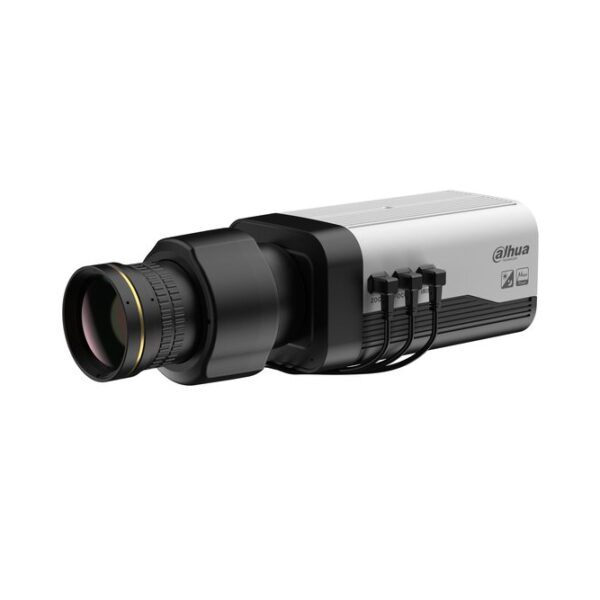

Box camera IP AI 12 MP C/CS mic
928,42 € IVA inclusa
Box camera IP AI WizMind X Deeplight da interno, sensore CMOS progressivo 1/1.7", risoluzione 12 MP a 25fps, H.265+, ICR, ottica C/CS non in dotazione, luminosità 0.0009 lux ƒ1.6, 1 uscita video BNC, 1 porta LAN 10/100/1000 Mbps, 2 ingressi e 2 uscite allarme, 2 ingressi e 1 uscita audio con microfono integrato, 1 porta RS485, privacy mask 8 aree, 3D NR, IVS (oggetto abbandonato/mancante), IVS (protezione perimetrale), face detection/recognition, people counting, ANPR, Parking Space Management, metadati video, micro SD card (512 GB), alimentazione 12 Vdc/24 Vac/ePoE <17.1 W
| Camera | |
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 4000 (H) × 3000 (V) |
| ROM | 8 GB |
| RAM | 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0009 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.6 (B/W,30 IRE) |
| S/N Ratio | >56 dB |
| Lens | |
| Lens Mount | C/CS |
| Iris Control Type | DC-Iris; P-Iris |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| EPTZ | Yes Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of |
| IVS (Perimeter Protection) | vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes |
| Face Detection | and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization |
| Face Recognition | time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, |
| PPE Detection | hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts); Supports self-learning, it detects the different colors and styles of workwear. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting |
| People Counting | report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; |
| Heat Map | Yes |
| ANPR | Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple |
| Parking Space | areas; display the total number of parking spaces and |
| Management | parking spaces that are available; trigger alarms based on a predefined number of vehicles. Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates flow statistics for people, motor vehicles and |
| Video Metadata | non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, |
| Acupick | animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 4000 × 3000@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 5 streams 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × |
| Resolution | 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–16384 kbps |
| Video Bit Rate | H.265: 32 kbps–12288 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection |
| Network | |
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 340 M) |
| Storage | |
| Browser | Chrome: Chrome 88.0.4324.190 and later Firefox: Firefox 47.0.2 and later |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; |
| Security | Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 2 channels (3.5 mm JACK port) |
| Audio Output | 1 channel (3.5 mm JACK port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: 1,000mA 30 VDC/500 mA 50 VAC |
| Analog Output | 1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak |
| Power Output | current 700 mA |
| Power | |
| Power Supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE Basic: 8.4 W (12 VDC); 8 W (24 VAC); 6.3 W (PoE) |
| Power Consumption | Max. (WDR+ intelligence on+ ICR switch): 17.1 W (12 VDC); 16.5 W (24 VAC); 15 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | 10–95% |
| Structure | |
| Casing Material | Metal + plastic 161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L |
| Product Dimensions | × W × H) |
| Net Weight | 0.80 kg (1.76 lb) |
| Gross Weight | 1.02 kg (2.25 lb) |
| Ordering Information | |
| Type | Model Description DH-IPC-HF71242F-Z-X 12MP Box WizMind Network Camera |
| Accessories | |
| (Optional) | PFM320D 12 VDC 2A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFB110W | PFB121W DH-PFL1040-A12PE |
| Wall/Ceiling/Plane | Wall Mount Bracket 10-40 mm |
| Mount Bracket | TF-P100 |
| PFM320D | PFM900-E MicroSD Memory Card |
| 12 VDC 2A Power Adapter | Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
Informazioni addizionali
Prodotti Correlati
Positioning system IP 2 MP zoom 45x IR ATEX IECEx
16.169,27 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EPC245U-PTZ-IR
PTZ + panoramica IP AI 4 MP TiOC zoom 25x IR/LED
1.003,45 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT4E425-4F-GB-A-PV1

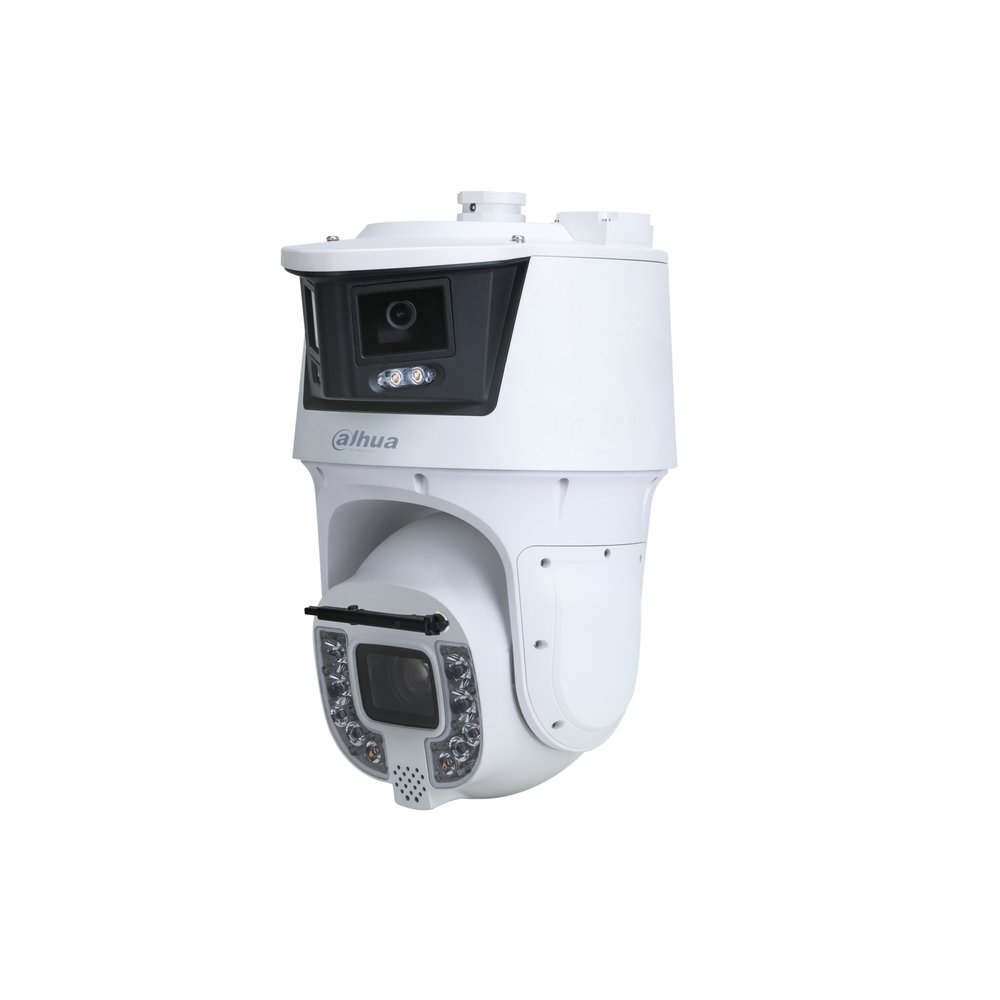

PTZ + panoramica IP AI 8 MP zoom 42x IR/LED
4.473,74 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT8C842-8P-FA-APV-0280
PTZ + panoramica IP AI 8/4 MP zoom 25x IR/LED mic
1.758,02 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT6E425-8P-MB-A-PV1
PTZ IP AI + panoramica 4 MP zoom 25x/6 mm IR/LED
3.854,59 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT5X425-4Z4-FA-2812
PTZ IP AI 4 MP zoom 15x ATEX IECEx
4.003,43 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
ESD41A415-HNR

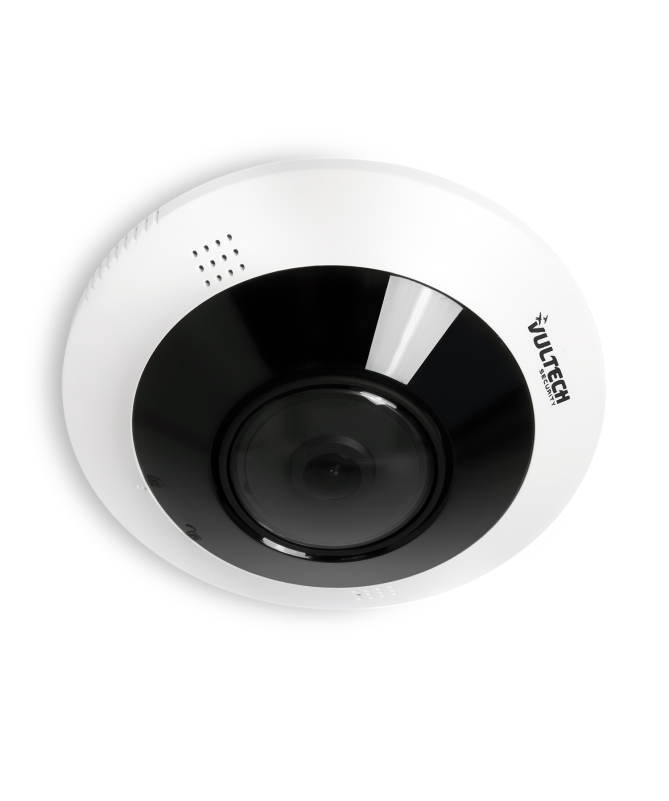

IP Camera ECO 6MP Fish-Eye 1,68mm POE IP66 IR 20m WDR
314,03 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
VS-IPC1560FHEYSWD-ECO

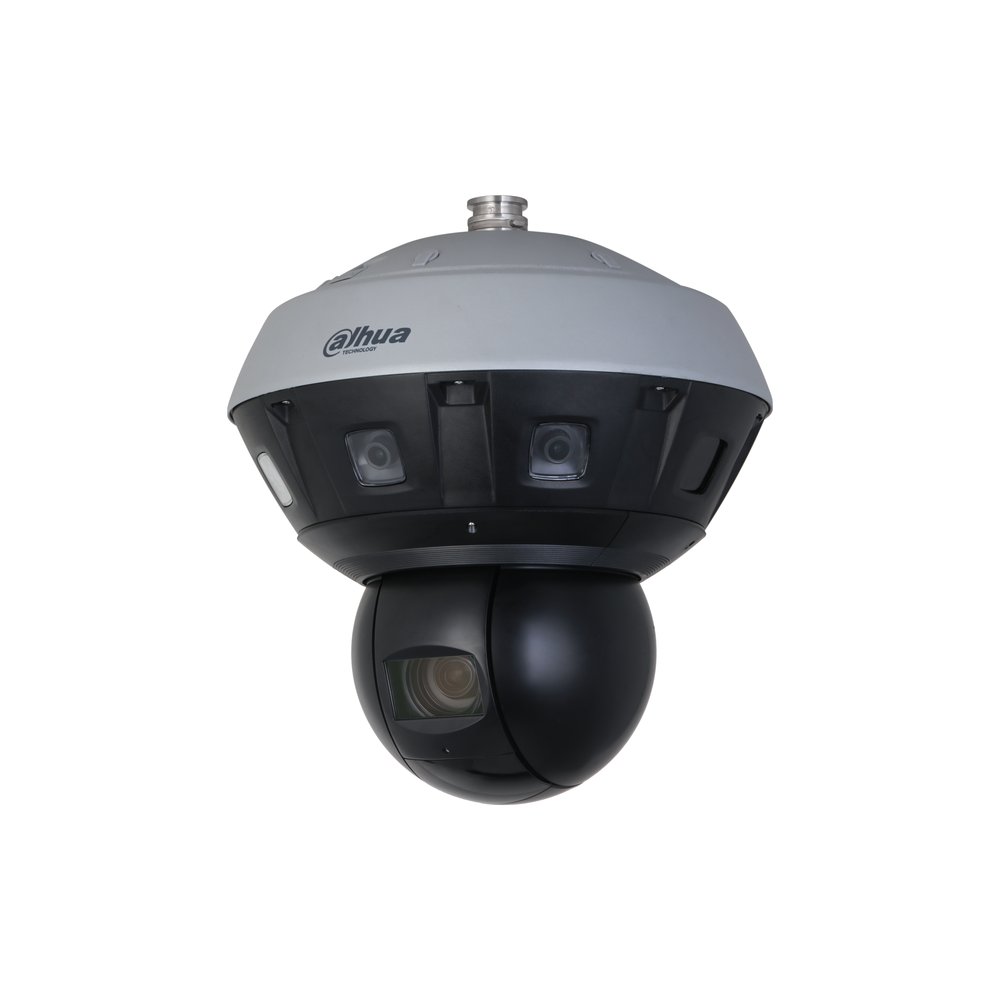

Telecamera panoramica 270° + PTZ IP AI 24/4 MP 2.8 mm/zoom 40x IR
