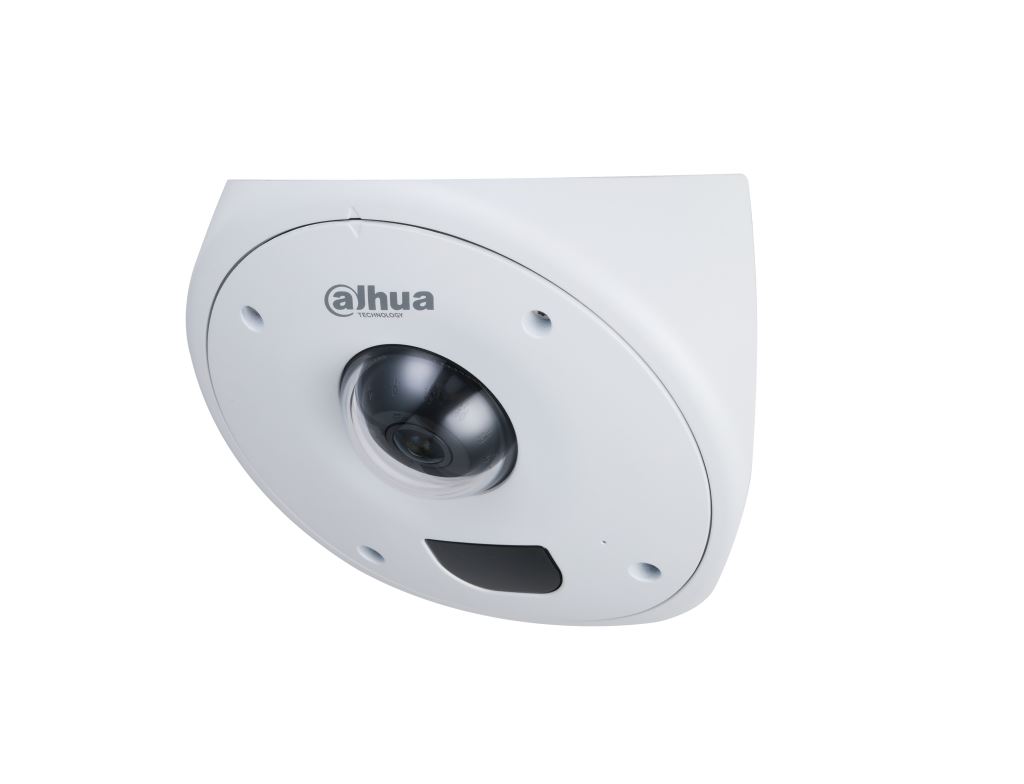

Corner camera IP AI 4 MP 2.5 mm IR mic

Name: Corner camera IP AI 4 MP 2.5 mm IR mic
Brand: Dahua
SKU: IPC-HCBW8442
Price: 775.31 EUR
Availability: BackOrder

Dahua

COD: IPC-HCBW8442 Categoria: Telecamere IP speciali Tag: 4MP

775,31 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.550,62 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera corner dome IP AI WizMind Starlight da interno/esterno IP67 antivandalo IK10+ (protezione 50 J), sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 25fps, H.265+, ICR, ottica fissa M12 2.5 mm ƒ2.0, luminosità 0.004 lux ƒ2.0 (0 con IR On), portata IR fino a 10 m, 1 porta LAN 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono integrato, IVS (oggetto abbandonato/mancante), heat map, protezione perimetrale, people counting, privacy mask 4 aree, 3D NR, WDR 140 dB, micro SD card (256 GB), alimentazione 12 Vdc/ePoE <11.5 W

Series Overview
Perimeter Protection	People counting Starlight
Camera
Image Sensor	2688 (H) ×1520 (V)
Max. Resolution	128 MB
ROM	512 MB
RAM	Progressive
Scanning System	Auto/Manual 1/3 s–1/100000 s
Electronic Shutter Speed	0.004 Lux@F2.0 (Color, 30IRE) 0.0004 Lux@F2.0 (B/W, 30IRE)
Min. Illumination	0 lux (Illuminator on) 10 m (32.8 ft) (monitoring distance)
Illumination Distance	Auto/Manual
Illuminator On/Off Control	2
Illuminator Number	Vertical: -10° to +10°
Pan/Tilt/Rotation Range	Rotation: 0° to 355°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	2.5 mm
Max. Aperture	F2.0 Horizontal: 135°
Field of View	Vertical: 90°
Iris Type	Fixed aperture
Close Focus Distance	0.4 m (1.3 ft) Detect Observe Recognize Identify 34.5 m 13.8 m 6.9 m 3.4 m (113.2 ft) (45.3 ft) (22.6 ft) (11.2 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
General IVS Analytics	Abandoned object; moving object
Heat Map	Yes
Professional, Intelligent
Perimeter Protection	of vehicle and human); loitering detection; people gathering; parking detection Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports Support the counting of number in area, and 4 rules
People Counting	configuration. Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent Search	intelligent search, event extraction and merging to event videos.
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+ Main stream: 2688 × 1520 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA(1600 × 1200); 1.3M (1280
Resolution	× 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control	CBR; VBR H.264: 32 Kbps–8192 Kbps
Video Bit Rate	H.265: 19 Kbps–8192 Kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	140 dB Auto/natural/street lamp/outdoor/manual/regional
White Balance	custom
Gain Control	Manual/Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization	Yes
Smart Illumination	Yes (Adjust by user)
Defog
Image Rotation	0°/90°/180°/270°
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G726;
Network
Cyber Security	logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;UPnP;
Protocol
Interoperability	P2P
Scene self-adaptation (SSA)	Yes
User/Host	20 (Total bandwidth: 80 M.)
Edge Storage	FTP; NAS; Micro SD card (support max. 256 G) IE: Versions later than IE 8 Google
Browser	Firefox Apple: versions later than Safari 12
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS, Android
Port
RS-485	1 (Baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (Terminal)
Audio Output	1 channel (Terminal)
Alarm Input	1 channel in: 5mA 3V–5V DC
Alarm Output	1 channel out: 300mA 12V DC
Power
Power Supply	12V DC/PoE (802.3af) /ePOE Basic power consumption: 3W (12V DC); 3.6W (PoE)
Power Consumption	Max. power consumption (ICR + IR full intensity): 9.5W (12V DC); 11.5W (PoE)
Environment
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Operating Humidity	≤95%
Storage Temperature	–30°C to +60°C (–22°F to +140°F)
Ingress Protection	IP67; IK10+(50J)
Structure
Casing	Metal 209.4 mm × 212.0 mm × 103.1 mm
Dimensions	(8.2" × 8.3" × 4.1") (L × W × H)
Net Weight	1365 g (3.0 lb)
Gross Weight	1465 g (3.2 lb) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Ordering Information
Type	Part Number Description DH-IPC- 4MP WizMind Corner Network Camera,PAL HCBW8442P DH-IPC- 4MP WizMind Corner Network Camera,NTSC HCBW8442N
4MP Camera	IPC-HCBW8442P 4MP WizMind Corner Network Camera,PAL IPC-HCBW8442N 4MP WizMind Corner Network Camera,NTSC
