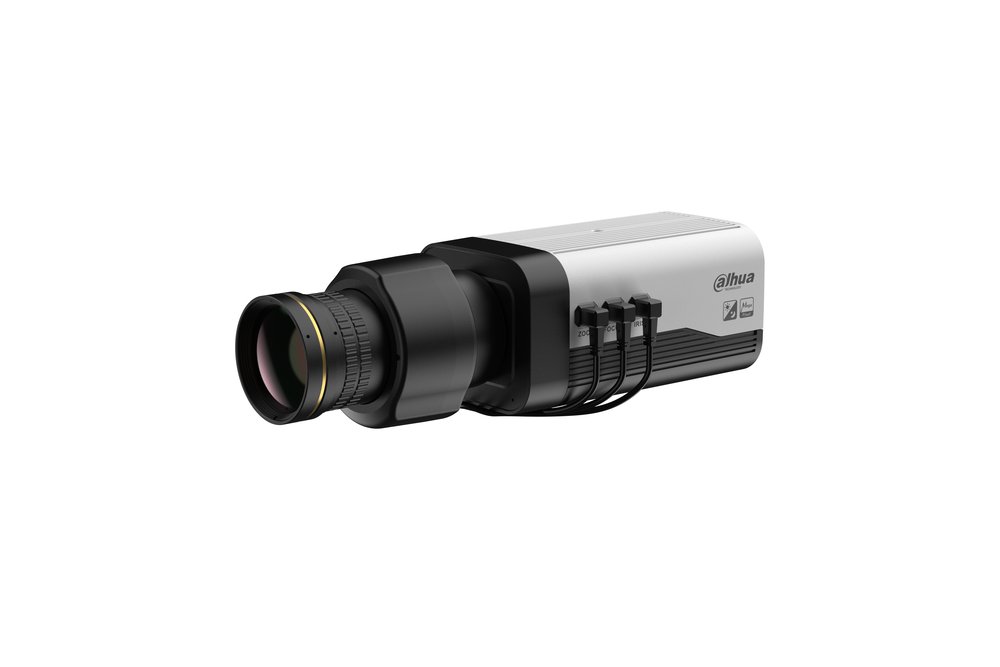

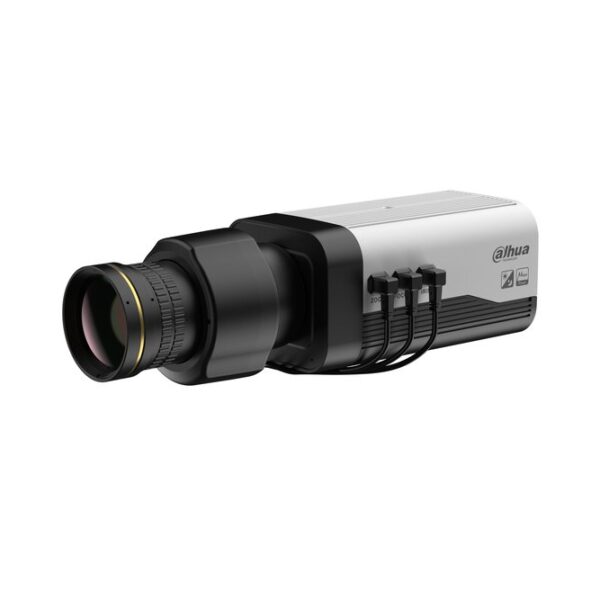

Box camera IP AI 4 MP C/CS mic

Name: Box camera IP AI 4 MP C/CS mic
Brand: Dahua
SKU: IPC-HF7442F-Z-X
Price: 796.66 EUR
Availability: BackOrder

Dahua

COD: IPC-HF7442F-Z-X Categoria: Telecamere IP speciali Tag: 4MP

796,66 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.593,32 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Box camera IP AI WizMind X Deeplight da interno, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 50fps, H.265+, ICR, ottica C/CS non in dotazione, luminosità 0.0005 lux ƒ1.2, portata 1 porta LAN 10/100/1000 Mbps, 1 porta RS485, 1 uscita CVBS, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con microfono integrato, privacy mask 8 aree, 3D NR, WDR 140 dB, oggetto abbandonato/mancante, IVS (protezione perimetrale), face detection, face recognition, PPE detection, people counting, ANPR, parking space management, metadati video, micro SD card (512 GB), alimentazione 12 Vdc/24 Vac/ePoE <17.1 W

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0005 lux@F1.2 (Color, 30 IRE)
Min. Illumination	0.0002 lux@F1.2 (B/W, 30 IRE)
S/N Ratio	>56dB
Lens
Lens Mount	C/CS
Iris Control Type	DC-Iris; P-Iris
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)	gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. Supports privacy protection. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes
Face Detection	and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting;
Face Recognition	privacy protection. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety
PPE Detection	vests, seatbelts); Supports self-learning, it detects the different colors and styles of workwear.Supports privacy protection. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting
People Counting	report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protection
Heat Map	Yes ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color.
ANPR	Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple
Parking Space	areas; display the total number of parking spaces and
Management	parking spaces that are available; trigger alarms based on a predefined number of vehicles. Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates flow statistics for people, motor vehicles and
Video Metadata	non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella. privacy protection. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people,
Acupick	animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Main Stream: 2688 × 1520@(1–50/60 fps) Sub stream: 1920 × 1080 @(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability	5 streams 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
Resolution	× 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–10240 kbps; H.265: 12 kbps–10240 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	150 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Interoperability	ONVIF (Profile S/Profile G/Profile T/ Profile M); CGI
User/Host	20 (Total bandwidth: 340 M)
Storage
Browser	later; Firefox: Firefox 47.0.2 and later
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS;Android Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted
Security	upgrade; Trusted boot; Generation and importing of X.509 certification
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	2 channels (3.5mm JACK port)
Audio Output	1 channel (3.5mm JACK port)
Alarm Input	2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output	2 channels out: 1,000mA 30V DC/500mA 50V AC
Analog Output	1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak
Power Output	current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE+ (802.3at)/ePoE Basic: 8.4 W (12 VDC); 8 W (24 VAC); 6.3 W (PoE)
Power Consumption	Max. (WDR+ intelligence on+ ICR switch): 17.1 W (12 VDC); 16.5 W (24 VAC); 15 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity	10–95%
Structure
Casing Material	Metal + plastic 161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91") (L
Product Dimensions	× W × H)
Net Weight	0.80 kg (1.76 lb)
Gross Weight	1.02 kg (2.25 lb)
Ordering Information
Type	Model Description DH-IPC-HF7442F-Z-X 4MP BOX WizMind Network Camera
Accessories
(Optional)	PFM320D 12 VDC 2A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card
Optional:
PFB110W	PFB121W DH-PFL1040-A12PE
Wall/Ceiling/Plane	Wall Mount Bracket 10-40 mm
Mount Bracket	TF-P100
PFM320D	PFM900-E MicroSD Memory Card
12 VDC 2A Power Adapter	Integrated Mount Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
