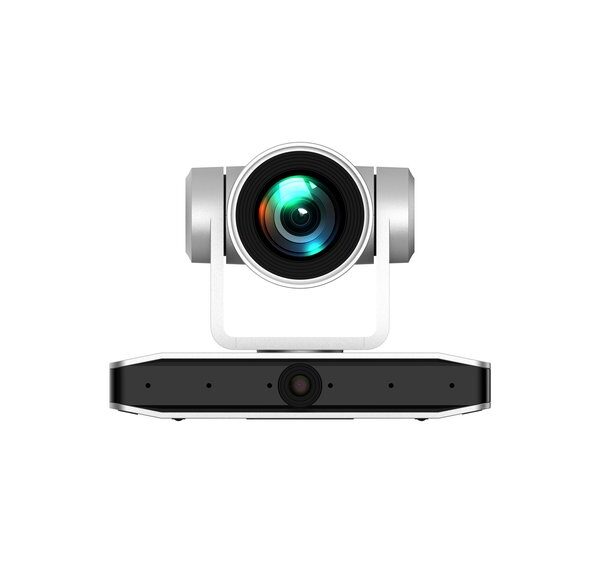

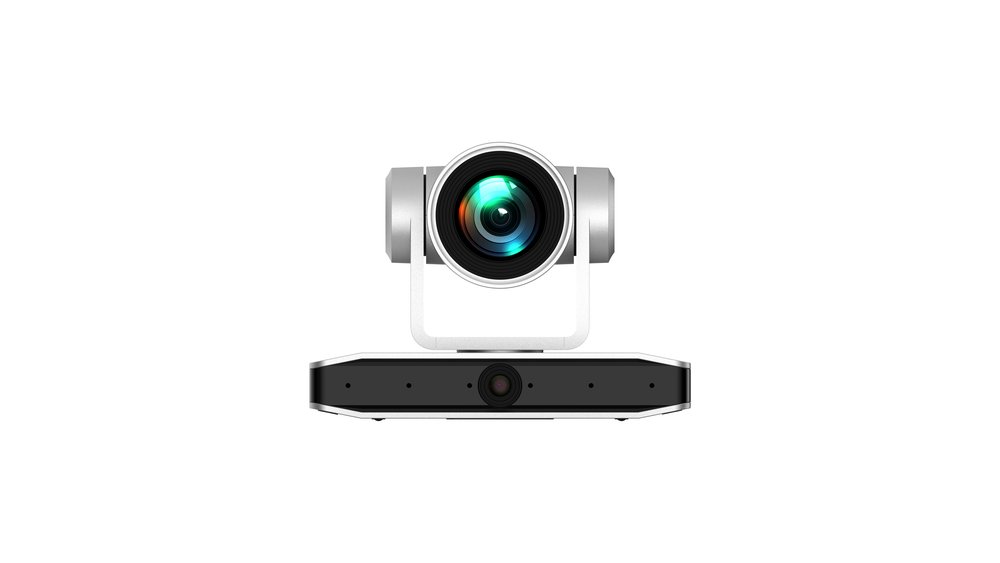

Telecamera USB PTZ 8.5 MP
875,35 € IVA inclusa
Telecamera USB PTZ videoconference 8.5 MP (3840x2160p), sensore CMOS 1/2.8", ottica 1.89 mm con zoom ottico 12x, apertura f1.85~2.43, porte video out HDMI, LAN, USB 3.0, RS232 in, alimentazione 12 Vdc <12 W
| Device Lens | |
| Image Sensor | 1/2.8 inch high quality CMOS sensor |
| Max. Resolution | 3840 (H) × 2160 (V) ： HDMI 3840 × 2160p@30/25 fps; 1920 × 1080p@30/25 fps; 1920 × 1080p@19.97 fps; USB3.0: Main Stream YUY2/NV12: 1920 × 1080p@30/25/20/15/10/5 fps; 1280 × 720p@30/25/20/15/10/5 fps; 1024 × 576p@30/25/20/15/10/5 fps; 800 × 600p@30/25/20/15/10/5 fps; 800 × 448p@30/25/20/15/10/5 fps; 640 × 480p@30/25/20/15/10/5 fps; 640 × 360p@30/25/20/15/10/5 fps; 480 × 270p@30/25/20/15/10/5 fps; 320 × 180p@30/25/20/15/10/5 fps Main Stream H264/MJPG: 1920 × 1080p@30/25/20/15/10/5 fps; 1600 × 896p@30/25/20/15/10/5 fps; 1280×720p@30/25/20/15/10/5 fps; 1024 × 576p@30/25/20/15/10/5 fps; 960 × 540@30/25/20/15/10/5 fps; 800 × 600@30/25/20/15/10/5 fps; 800 × 448p@30/25/20/15/10/5 fps; 720 × 576@30/25/20/15/10/5 fps; 720 × 480@30/25/20/15/10/5 fps; 640 × 480@30/25/20/15/10/5 fps; 640 × 360@30/25/20/15/10/5 fps; 480 × 270@30/25/20/15/10/5 fps; |
| Video Frame Rate | 352 × 288@30/25/20/15/10/5 fps; 320×240@30/25/20/15/10/5 fps Sub Stream YUY2/NV12: 1920 × 1080p@30/25/20/15/10/5 fps; 1280 × 720p@30/25/20/15/10/5 fps; 1024 × 576p@30/25/20/15/10/5 fps; 800 × 600p@30/25/20/15/10/5 fps; 800 × 448p@30/25/20/15/10/5 fps; 640 × 480p@30/25/20/15/10/5 fps; 640 × 360p@30/25/20/15/10/5 fps; 480 × 270p@30/25/20/15/10/5 fps; 320 × 180p@30/25/20/15/10/5 fps Sub Stream H264/MJPG: 1920 × 1080p@30/25/20/15/10/5 fps; 1600 × 896p@30/25/20/15/10/5 fps; 1280 × 720p@30/25/20/15/10/5 fps; 1024 × 576p@30/25/20/15/10/5 fps; 960 × 540@30/25/20/15/10/5 fps; 800 × 600@30/25/20/15/10/5 fps; 800 × 448p@30/25/20/15/10/5 fps; 720 × 576@30/25/20/15/10/5 fps; 720×480@30/25/20/15/10/5 fps; 640 × 480@30/25/20/15/10/5 fps; 640 × 360@30/25/20/15/10/5 fps; 480 × 270@30/25/20/15/10/5 fps; 352 × 288@30/25/20/15/10/5 fps; 320 × 240@30/25/20/15/10/5 fps f=1.89 mm: Horizontal angle: 7.6° (narrow angle)–80.5° (wide angle) |
| Field of View | Vertical angle: 4.4° (narrow angle)–50.0°(wide angle) Diagonal angle: 8.7˚ (narrow angle)–88.9˚(wide angle) |
| Focal Length | f=1.89 mm |
| Digital Zoom | 15× |
| Min. Illumination | 0.5 lux (F1.8, AGC ON) |
| Aperture | F1.85–F2.43 |
| Lens Type | Automatic/manual/one-click focus |
| Function | |
| Noise Reduction | 2D and 3D digital noise reduction Automatic/manual/one-click WB/specified color |
| White Balance | temperature |
| Exposure | Automatic and manual |
| BLC | On/off Brightness, hue, saturation, contrast, sharpness, black- |
| Image Adjustment | white mode, gamma ray curve |
| S/N Ratio | > 50 dB |
| Video Compression | YUY2/NV12/MJPG/H.265 |
| USB Video Communication | UVC/UAC |
| Port | |
| Video Output Port | HDMI/LAN/USB3.0 |
| Control Port | RS 232-IN VISCA/Pelco-D/Pelco-P; baud |
| Ptz | |
| PTZ Pan/Tilt | Pitch angle: –30°–+30° Horizontal angle speed control: 0.1°–100° per second |
| PTZ Speed | Pitch angle speed control: 0.1°–70° per second The user can set up to 255 preset positions (with 10 |
| PTZ Presets | preset positions accessible via the remote control) |
| General | |
| Operating Voltage | 12 VDC |
| Operating Current | <1 A |
| Power Consumption | <12 W |
| Environment | |
| Operating Temperature | –10 °C to +50 °C (–14 °F to +122 °F) |
| Operating Humidity | 20%–80% (RH) |
| Storage Temperature | –10 °C to +60 °C (–14 °F to +140 °F) |
| Storage Humidity | 20%–80% (RH) |
| Operating Environment | Indoor |
| Size And Weight | |
| Product Dimensions | 6.26") (L × W × H) 350.0 mm × 273.0 mm × 255.0 mm (13.78" × 10.75" × |
| Packaging Dimensions | 10.04") (L × W × H) |
| Gross Weight | 3.7 kg (8.16 lb) |
| Net Weight | 1.7 kg (3.75 lb) |
| Packing List | |
| Packing List | manual, 1 warranty card, 1 silicone pad, 1 RS-232 serial cable |
| Ordering Information | |
| Type | Model Description |
| VIDEO CONFERENCING | DHI-PKC-UC12D USB Camera |
Informazioni addizionali
Prodotti Correlati
Positioning system IP 2 MP zoom 45x IR ATEX IECEx
16.169,27 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EPC245U-PTZ-IR
PTZ + panoramica IP AI 8/4 MP zoom 25x IR/LED mic
1.758,02 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT6E425-8P-MB-A-PV1
PTZ IP AI + panoramica 4 MP zoom 25x/6 mm IR/LED
3.854,59 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
SDT5X425-4Z4-FA-0832
PTZ termica ibrida IP 400×300/4 MP 9 mm/zoom 45x temp. ATEX IECEx
38.422,68 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
TPC-AEPT8441A-TB9Z45
IP Camera ECO 6MP Fish-Eye 1,68mm POE IP66 IR 20m WDR
314,03 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
VS-IPC1560FHEYSWD-ECO

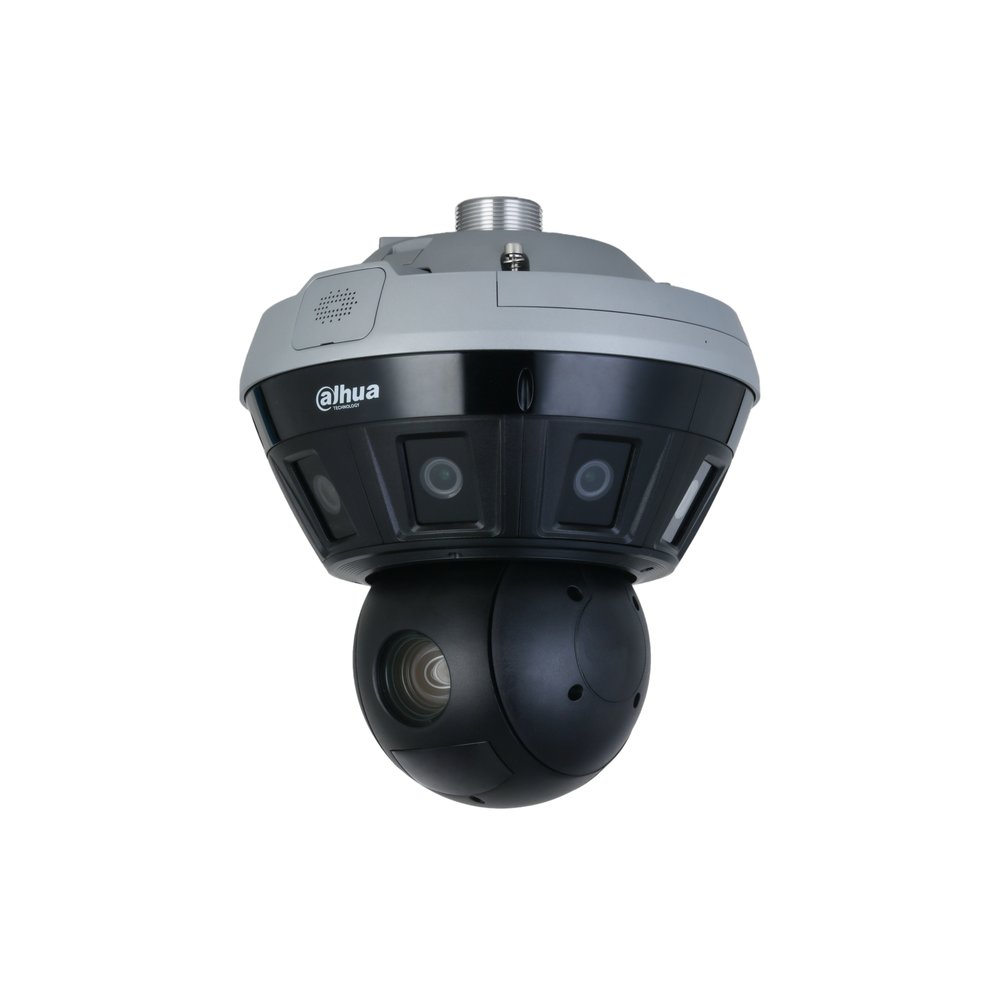

Telecamera panoramica 180° + PTZ IP AI 8/4 MP 2.8 mm/zoom 25x IR
3.506,28 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
PSDW8842S-A180-D425
Telecamera panoramica 360° + PTZ IP 2×8 MP 2.8 mm/zoom 25x IR
4.183,38 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
PSDW81642S-A360-D425

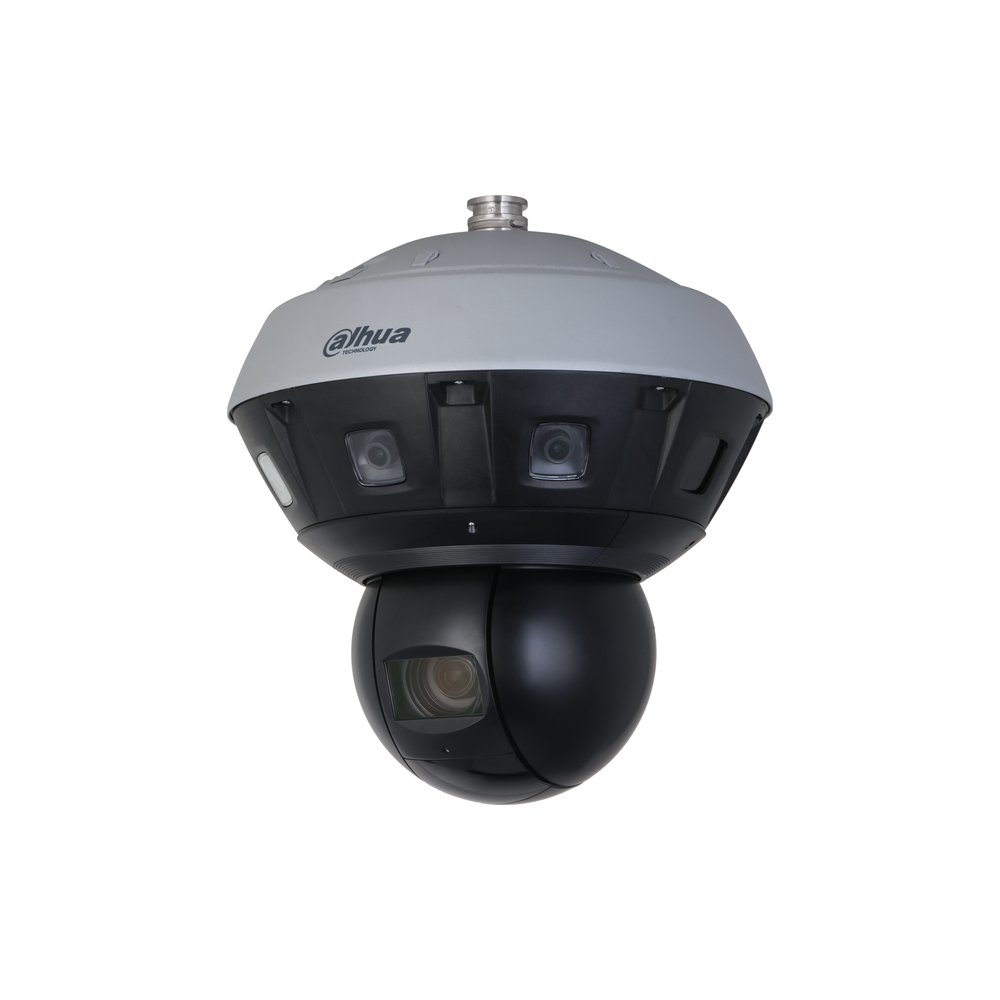

Telecamera panoramica 360° + PTZ IP AI 16/4 MP 2.8 mm/zoom 40x IR
