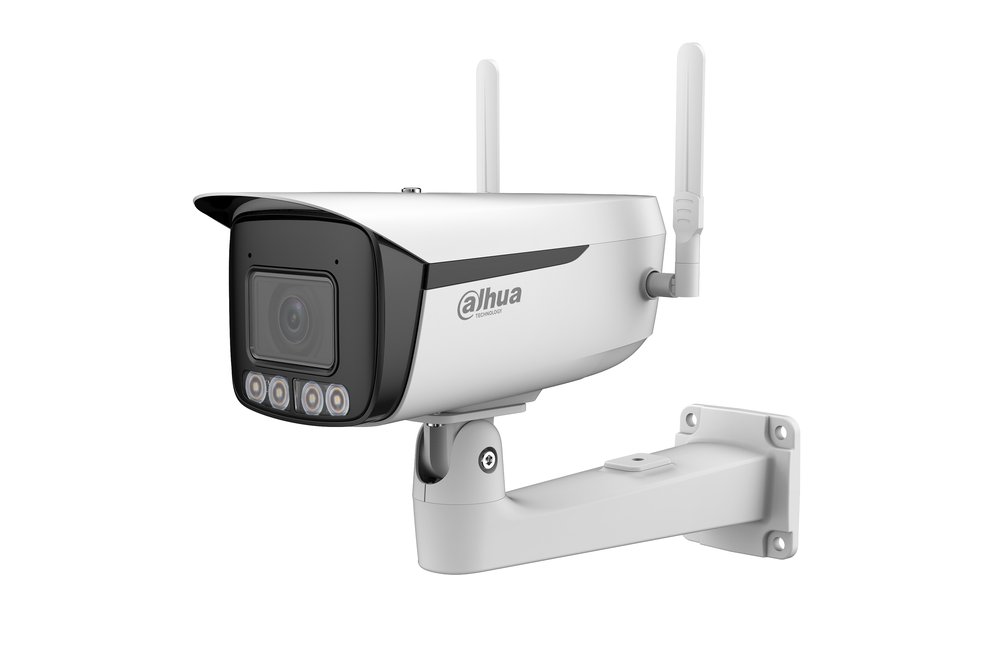

Telecamera bullet IP AI WizMind 5G da esterno/interno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, AI coding, ICR, ottica motorizzata 8~32 mm ƒ1.6, luminosità 0.005 lux ƒ1.8 (0 con IR On), portata IR/LED fino a 60 m, 3 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, 1 porta LAN 10/100 Mbps, privacy mask 4 aree, IVS (protezione perimetrale), heat map, face detection, people counting, SMD 4.0, 3D NR, WDR 120 dB, micro SD card (512 GB), alimentazione 12 Vdc <20 W, staffa da parete PFB605W inclusa
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Scanning System | Progressive Auto/Manual 1/3 s–1/100,000 s |
| Electronic Shutter Speed | 0.005 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 120 m (393.70 ft) (IR) |
| Illumination Distance | Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| Illuminator Number | 4 (IR LED); 4 (Warm light) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | Module |
| Focal Length | 8 mm–32 mm |
| Max. Aperture | F1.6 H: 42°–14.9° |
| Field of View | V: 23.3°–8.6° D: 48.5°–16.9° |
| Iris Control | Auto |
| Close Focus Distance | 3 m (9.84 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | of vehicle and human); loitering detection, people gathering, and parking detection |
| Heat Map | Yes |
| Smart Object Detection | Smart abandoned object; smart missing object Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and |
| Face Detection | 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting Tripwire people counting and people counting in area, |
| People Counting | queue management; 4 rules can be set for tripwire, people counting in area and queue management Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ AI H.265 (Compression rate≥25%) |
| AI Coding | AI H.264 (Compression rate≥25%) Main stream: 3840 × 2160@(1–25/30 fps) sub stream: D1@(1–25/30 fps) third stream: 1080p@(1–25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams 3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 3 kbps–8192 kbps; |
| Video Bit Rate | H.265: 3 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Defog | |
| Image Rotation | and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | moving; abandoned object; missing object; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) 5G: SA: N1/N3/N7/N8/N20/N28/N38/N40/N41/N75/N76/ N77/N78 NSA: N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78 Applicable regions: Europe, Australia, Middle East, Africa 4G: |
| Frequency | FDD-LTE: B1/B3 /B7 /B20 TDD-LTE: B41 Applicable regions: Europe, Australia, Middle East, Africa 3G: WCDMA: B1 /B8 Applicable regions: Europe, Australia, Middle East, Africa |
| SDK and API | Yes IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Firefox Safari: Safari 12 and later |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Certification | FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 CE RED |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 3 channels in: 5mA 3V–5V DC |
| Alarm Output | 2 channels out: 300mA 12V DC |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | illuminator on + active deterrence + vari-focal + power output): 20 W (12 VDC) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal + plastic 281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × |
| Product Dimensions | 7.55") (L × W × H) |
| Net Weight | 2074 g (4.57 lb) |
| Gross Weight | 2290 g (5.05 lb) |
| Ordering Information | |
| Type | Model Description DH-IPC-HFW5842DK1P-Z-5G- Dahua 8MP 5G Vari-focal Bullet FM16-0832 WizMind Network Camera |
| 8MP Camera | IPC-HFW5842DK1P-Z-5G- 8MP 5G Vari-focal Bullet WizMind FM16-0832 Network Camera PFB605W Wall Mount Bracket PFB603C Ceiling Mount Bracket PFA150 Pole Mount Bracket (Horizontal) |
| Accessories | |
| (Optional) | PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card PFA162 Housing Bracket |
| Included: | |
| Wall Mount | Bracket |
| Optional: | |
| Ceiling Mount | 12 VDC 2 A Power (Horizontal) Bracket Adapter TF-P100 PFA162 |
| PFM900-E | MicroSD Housing Bracket |
| Integrated | Memory Card |
| Mount Tester | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
