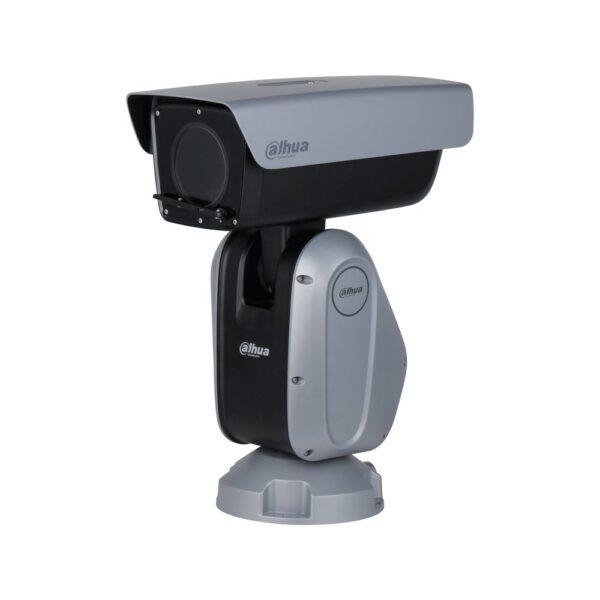

Positioning system IP AI 2 MP zoom 60x IR

Name: Positioning system IP AI 2 MP zoom 60x IR
Brand: Dahua
SKU: PTZ85260-HNF-PA
Price: 5985.32 EUR
Availability: BackOrder

Dahua

COD: PTZ85260-HNF-PA Categorie: Telecamere IP, Videosorveglianza Tag: 2MP

5.985,32 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 11.970,64 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Positioning system IP AI WizMind Starlight da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 2 MP a 25fps, rotazione PAN 360° endless / TILT -45°~90°, H.265+, ICR, zoom ottico 60x (5.6~336 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4, portata IR fino a 400 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 5 scan, 8 tour e 5 pattern, 2/3D NR, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati, face detection, auto tracking, PFA, micro SD card (512 GB), alimentazione 36 Vdc <63 W, alimentatore incluso

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/1.8" CMOS 2 MP
Pixel	1920 (H) × 1080 (V)
ROM	8 GB
RAM	2 GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.005 lux@F1.4
Min. Illumination	B/W: 0.0005 lux@F1.4 0 lux (IR light on)
Illumination Distance	400 m (1,312.34 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Off
Illuminator Number	8 (IR)
Lens
Focal Length	5.6 mm–336 mm
Max. Aperture	F1.4–F4.5
Field of View	H: 56.4°–1.2°; V: 32.7°–0.7°; D: 63.6°–1.7°
Optical Zoom	60×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–2 m (1.64 ft–6.56 ft)
Iris Control	Auto; manual Detect Observe Recognize Identify 6,720 m 2,666.7 m 1,344 m 672 m (22,047.24 ft) (8,749.02 ft) (4,409.45 ft) (2,204.72 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –45° to +90°
Manual Control Speed	Tilt: 0.1°/s–60°/s
Preset Speed	Pan: 160°/s; Tilt: 60°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset; Pattern; Tour; Scan DH-SD
PTZ Protocol	Pelco-P/D (auto recogniton)
Intelligence
Video Metadata	and non-motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking
IVS (Perimeter Protection)	detection; people gathering; vehicle/human alarm classification.
Face Recognition	Yes
Video
Video Compression	H.264
Streaming Capability	3 streams 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 ×
Resolution	720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 1080p/960p/720p (1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/960p/720p (1–25/30 fps)
Bit Rate Control	CBR; VBR H.264: 1792–9216 kbps
Video Bit Rate	H.265: 512–5632 kbps
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Image Stabilization	Electronic Image Stabilization (EIS)
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the same
Privacy Masking	view
S/N Ratio	≥55 dB
Audio
Audio Compression	PCM
Network
Network Port	RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS;
Network Protocol	DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP
Interoperability	ONVIF (Profle S&G&T); GB/T28181; CGI
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 52ESR and earlier versions Safari
Management Software	Smart PSS; DSS; IVSS
Mobile Client	iOS; Android
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1200 bps–115200 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Two-way Audio	Yes
Alarm Input	7 (on-off value input: 0–5 VDC)
Alarm Output	2 Capture; preset; tour; pattern; recordings on SD card;
Alarm Linkage	alarm digital input; client E-map; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder
Alarm Event	state detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply	36 VDC, 5 A (± 25%) Basic: 22 W
Power Consumption	Max.: 63 W (illuminator + wiper + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to 158 °F)
Operating Humidity	≤95% IP67; TVS 6000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Casing	ADC12 344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" ×
Product Dimensions	19.68") (L × W × H)
Net Weight	15.4 kg (33.95 lb)
Gross Weight	23.7 kg (52.25 lb)
Ordering Information
Type	Part Number Description 2MP 60x Starlight IR WizMind Network DH-PTZ85260-HNF-PA Positioning System
2M Camera	2MP 60x Starlight IR WizMind Network PTZ85260-HNF-PA Positioning System DC36V/5A Power Adapter
Optional:
DH-PFB741W	Wall Mount Bracket
