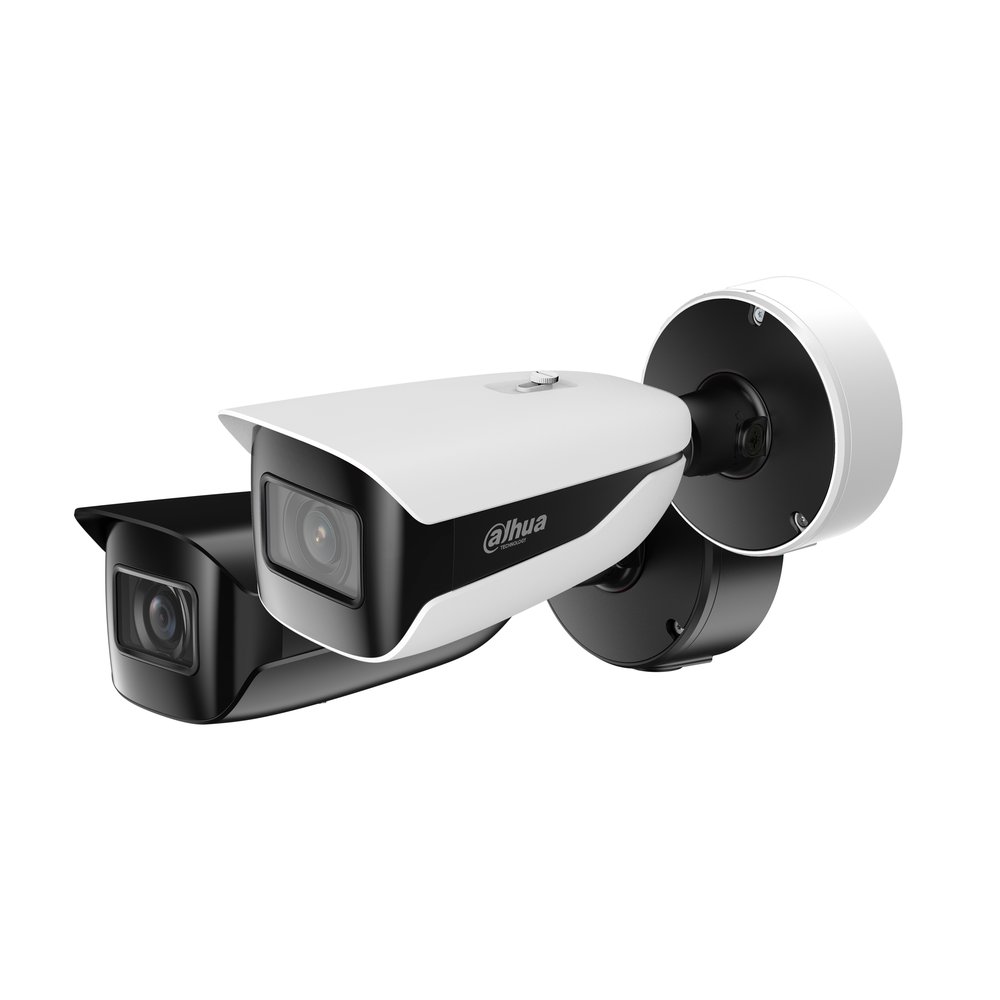

Bullet IP AI 12 MP 2.7~12 mm IR

Name: Bullet IP AI 12 MP 2.7~12 mm IR
Brand: Dahua
SKU: IPC-HFW71242H-Z-X
Price: 1232.20 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW71242H-Z-X Categorie: Telecamere IP, Videosorveglianza Tag: 12MP+

1.232,20 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 2.464,40 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizMind X Deeplight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.7", risoluzione 12 MP a 25fps, H.265+, ICR, ottica motorizzata 2.7~12 mm ƒ1.6, luminosità 0.0009 lux ƒ1.6 (0 con IR On), portata IR fino a 60 m, 1 porta LAN 10/100/1000 Mbps, 3 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, privacy mask 8 aree, 3D NR, IVS (protezione perimetrale), AcuPick (con NVR AcuPick), face detection/recognition, people counting, ANPR, parking space management, metadati video, micro SD card (512 GB), alimentazione 12 Vdc/24 Vac/ePoE <24.3 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	1/1.7" CMOS
Max. Resolution	4000 (H) × 3000 (V)
ROM	8 GB
RAM	4 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0009 lux@F1.6 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56dB
Illumination Distance	Up to 60 m (196.85 ft) (IR)
Illuminator On/Off Control	Auto
Illuminator Number	4 (IR LED) Pan: 0-360°
Angle Adjustment	Tilt: 0-90° Rotation: 0-360°
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–12 mm
Max. Aperture	F1.6
Field of View	H: 106°–45°; V: 77°–34°; D: 140°–56°
Iris Control	Auto
Iris Control Type	P-Iris
Close Focus Distance	1.8 m (5.91 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
EPTZ	Yes Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of
IVS (Perimeter Protection)	vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes
Face Detection	and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization
Face Recognition	time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting
People Counting	report (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management
Heat Map	Yes Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets,
PPE Detection	hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts); Supports self-learning, it detects the different colors and styles of workwear. ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color.
ANPR	Other attributes: Seat belt, smoking, calling. Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple
Parking Space	areas; display the total number of parking spaces and
Management	parking spaces that are available; trigger alarms based on a predefined number of vehicles. Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates ﬂow statistics for people, motor vehicles and
Video Metadata	non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
AcuPick	animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Main stream: 4000 × 3000@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video Frame Rate	Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability	5 streams 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 ×
Resolution	1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 32 kbps–16384 kbps
Video Bit Rate	H.265: 32 kbps–12288 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Defog
Image Rotation	resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Audio
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Interoperability	ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host	20 (Total bandwidth: 340 M)
Storage
Browser	Chrome: Chrome 88.0.4324.190 and later Firefox: Firefox 47.0.2 and later
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification;
Security	Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	3 channels in: wet contact, 5 mA 3–5 VDC 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA
Alarm Output	50 VAC
Analog Output	1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak
Power Output	current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE+ (802.3at)/ePoE Basic: 7.3 W (12 VDC); 10.2 W (24 VAC); 10.6 W (PoE) Max. (ICR switch + IR intensity): 18.2 W (12 VDC); 24.2 W
Power Consumption	(24 VAC); 24.3 W (PoE) Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE)
Environment
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Storage Humidity	10–95%
Protection	IP67; IK10; Anti-Corrosion Protection (optional) Moderate Protection(Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments
Anti-corrosion Level	with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure .
Structure
Casing Material	Metal + plastic 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" ×
Product Dimensions	5.32") (L × W × H)
Net Weight	1.65 kg (3.64 lb)
Gross Weight	2.73 kg (6.02 lb)
Ordering Information
Type	Model Description 12MP IR Bullet WizMind Network DH-IPC-HFW71242H-Z-X
Accessories
(Optional)	PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card
Optional:
Pole mount bracket	12 VDC 2A Power Adapter Integrated Mount Tester TF-P100
MicroSD Memory Card	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
