Saldi

Positioning system IP AI 4 MP zoom 48x laser

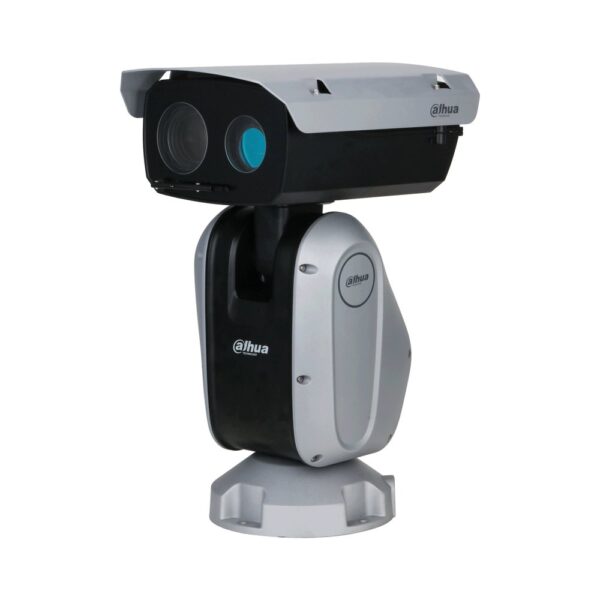

Name: Positioning system IP AI 4 MP zoom 48x laser
Brand: Dahua
SKU: PTZ85448-HNF-PA-FL
Price: 9396.44 EUR
Availability: BackOrder

Dahua

COD: PTZ85448-HNF-PA-FL Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

9.396,44 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 18.792,88 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Positioning system IP AI WizMind Starlight da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -45°~90°, H.265+, ICR, zoom ottico 48x (6.25~300 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4, portata laser fino a 1000 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 5 scan, 8 tour e 5 pattern, 2/3D NR, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati, face detection, auto tracking, PFA, micro SD card (512 GB), alimentazione 36 Vdc <69 W, alimentatore incluso

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/1.8" CMOS 4 MP
Pixel	2560 (H) × 1440 (V)
ROM	8 GB
RAM	2 GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.001 lux@F1.4
Min. Illumination	B/W: 0.0001 lux@F1.4 0 lux (laser on)
Illumination Distance	1,000 m (3,280.84 ft)
Illuminator On/Off Control	Zoom Prio; Manual; Off
Illuminator Number	1 (laser)
Lens
Focal Length	6.25 mm–300 mm
Max. Aperture	F1.4–F4.5
Field of View	H: 62.4°–1.7°; V: 36.6°–1.0°; D: 69.8°–2.0°
Optical Zoom	48×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–2 m (1.64–6.56 ft)
Iris Control	Auto; manual Detect Observe Recognize Identify 6,000 m 2,381 m 1,200 m 600 m (19,685.04 ft) (7,811.68 ft) (3,937.01 ft) (1,968.50 ft) *DORI (Detect, Observe, Recognize, Identify) is a
DORI Distance	standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –45° to +90° Pan: 0.1°/s–160°/s
Manual Control Speed	Tilt: 0.1°/s–60°/s
Preset Speed	Pan: 160°/s; Tilt: 60°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset; Pattern; Tour; Scan DH-SD
PTZ Protocol	Pelco-P/D (auto recogniton)
Intelligence
Video Metadata	and non-motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking
IVS (Perimeter Protection)	detection; people gathering; vehicle/human alarm classification.
Face Recognition	Yes
Video
Video Compression	H.264
Streaming Capability	3 streams 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 ×
Resolution	960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/1080p/960p/720p (1–50/60 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/960p/720p (1–25/30 fps)
Bit Rate Control	CBR; VBR H.264: 2816–13056 kbps
Video Bit Rate	H.265: 1024–7936 kbps
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	140 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Image Stabilization	Electronic Image Stabilization (EIS)
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the same
Privacy Masking	view
S/N Ratio	≥55 dB
Audio
Audio Compression	PCM
Network
Network Port	RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS;
Network Protocol	DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP
Interoperability	ONVIF (Profle S&G&T); GB/T28181; CGI
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 52ESR and earlier versions Safari
Management Software	Smart PSS; DSS; IVSS
Mobile Client	iOS; Android
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1200 bps–115200 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Two-way Audio	Yes
Alarm Input	7 (on-off value input: 0–5 VDC)
Alarm Output	2 Capture; preset; tour; pattern; recordings on SD card;
Alarm Linkage	alarm digital input; client E-map; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder
Alarm Event	state detection; memory card state detection; memory space detection; power exception detection 100 M single fiber FC
Optical Fiber	Specifications: 1310 nm TX/1550 nm RX Transmission distance: 20 km (12.43 mi)
Power
Power Supply	36 VDC, 5 A (± 25%) Basic: 22 W
Power Consumption	Max.: 63 W (illuminator + wiper + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to 158 °F)
Operating Humidity	≤95% IP67; TVS 6000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Casing	ADC12 344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" ×
Product Dimensions	19.68") (L × W × H)
Net Weight	15.4 kg (33.95 lb)
Gross Weight	23.7 kg (52.25 lb)
Ordering Information
Type	Part Number Description DH-PTZ85448-HNF- 4MP 48x Starlight Laser AI Network PA-FL Positioning System
4M Camera	4MP 48x Starlight Laser AI Network PTZ85448-HNF-PA-FL Positioning System DC36V/5A Power Adapter
Optional:
Wall Mount	Bracket
