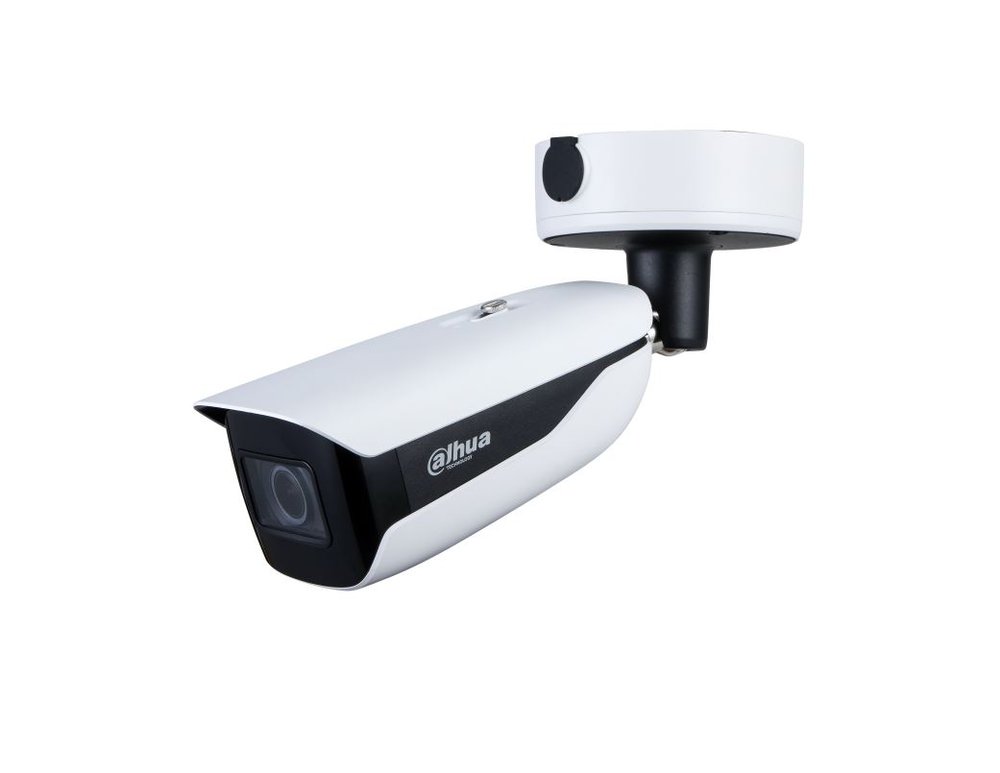

Telecamera IP Bullet WizMind IR varifocale 8MP
> Sensore di immagine CMOS 8 MP 1/1.8″, bassa illuminazione e immagine ad alta definizione.
> Uscita max. 8 MP (3840×2160) @25/30 fps. · LED IR integrato, distanza max. di illuminazione 60 m.
I parametri e i datasheet sono forniti solo come riferimento e possono differire dal prodotto reale. Si prega di fare riferimento al prodotto fisico in caso di dubbi.
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0007 lux@F1.2 (Color, 30 IRE) |
| Min. Illumination | 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| Illuminator Number | 4 (IR LED) Pan: 0-360° |
| Angle Adjustment | Tilt: 0-90° Rotation: 0-360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–12.0 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 112°–48°; V: 58°–27°; D: 137°–55° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 1.75 m (5.74 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| EPTZ | Yes Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of |
| IVS (Perimeter Protection) | vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms. |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD | SMD 3.0 |
| AcuPick | devices to accurately match targets, such as people, animal,and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Yes Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 |
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area |
| People Counting | and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. |
| Video Metadata | Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 Main stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps) |
| Video Frame Rate | Fourth stream: 720p@ (1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 4 streams 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × |
| Resolution | 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–16384 kbps |
| Video Bit Rate | H.265: 12 kbps–13568 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Defog | |
| Image Rotation | (2688×1520 )resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
| Network Protocol | Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted |
| Security | upgrade; Trusted boot; Generation and importing of X.509 certification |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (terminal) |
| Audio Output | 1 channel (terminal) |
| Alarm Input | 3 channels in: wet contact, 5mA 3V–5V DC 2 channels out: dry contact, 1,000mA 30V DC/500mA |
| Alarm Output | 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) 12 VDC power output, max. current 165 mA, peak |
| Power Output | current 700 mA |
| Power | |
| Power Supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 4.5 W (12 VDC); 5.6 W (24 VAC); 6 W (PoE) Max. (Focus+WDR+ Intelligence on+IR on): 13.5 W (12 |
| Power Consumption | VDC); 15.3 W (24 VAC); 16.9 W (PoE) Heating: 3 W (12 VDC); 3.6 W (24 VAC); 3.8 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP67; IK10 Moderate Protection (Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments |
| Anti-corrosion Level | with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure . |
| Structure | |
| Casing Material | Metal + plastic 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × |
| Product Dimensions | 5.32") (L × W × H) |
| Net Weight | 1.6 kg (3.53 lb) |
| Gross Weight | 2.4 kg (5.29 lb) |
| Ordering Information | |
| Type | Model Description 8MP IR Vari-focal Bullet WizMind DH-IPC-HFW5842H-ZHE Network Camera |
| Accessories | |
| (Optional) | PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA154 | Anti-corrosion 12 VDC 2A |
| Pole Mount | Pole Mount Power Adapter |
| Bracket | Bracket |
| PFM900-E | TF-P100 |
| Integrated | MicroSD |
| Mount Tester | Memory Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
