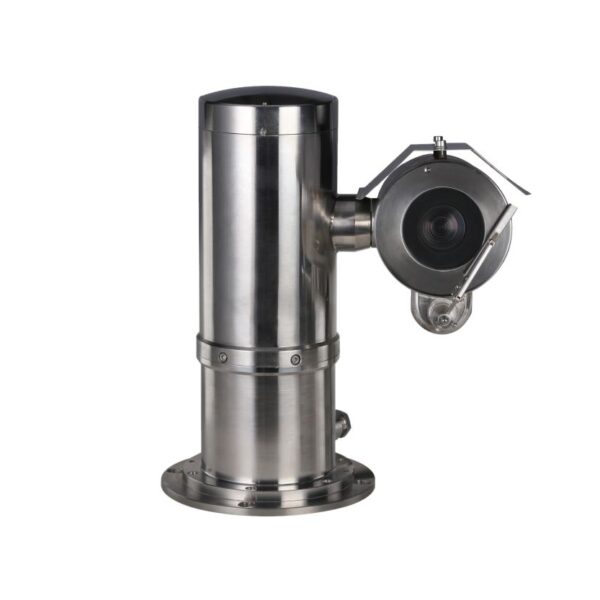

Positioning system IP 2 MP zoom 45x ATEX IECEx
14.338,05 € IVA inclusa
Positioning system IP Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx con heater, sensore CMOS Starvis progressivo 1/2.8", risoluzione 2 MP a 50fps, rotazione PAN 360° endless / TILT -90°~90°, H.265+, zoom ottico 45x (3.95~177.7 mm ƒ1.6~4.95) / 16x digitale, luminosità 0.005 lux ƒ1.6, 1 porta LAN 10/100 Mbps, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio, 5 scan, 8 tour, 2/3D NR, WDR 120 dB, micro SD card (256 GB), alimentazione 220 Vac <60 W
| Camera | |
| Image Sensor | 1/2.8” STARVIS™ CMOS 1920(H) x 1080(V), 2 Megapixels |
| RAM/ROM | 512M/128M |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens | |
| Focal Length | 3.95mm~177.7mm |
| Max. Aperture | F1.6~ F4.95 |
| Angle of View | H: 70.3° ~ 1.8° |
| Optical Zoom | 45x |
| Focus Control | Auto/Manual |
| Close Focus Distance | 100mm~ 1000mm |
| Detect | Observe Recognize Identify |
| 2345m(7694ft) | 938m(3077ft) 469m(1539ft) 234m(768ft) |
| Ptz | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -90° ~ 90° |
| Manual Control Speed | Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s |
| Preset Speed | Pan: 40° /s; Tilt: 40° /s |
| Presets | 256 |
| PTZ Mode | 5 Scan, 8 Tour |
| Speed Setup | Human-oriented focal Length/speed adaptation Auto restore to previous PTZ and lens status after |
| Power up Action | power failure Activate Preset/Scan/Tour if there is no command in |
| Idle Motion | the specified period |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams 1080P(1920×1080)/1.3M(1280×960)/720P(1280× |
| Resolution | 720)/D1(704×576/704×480)/CIF(352×288/352×240) Main stream: 1080P/1.3M/720P(1~50/60fps) |
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization | Support |
| Defog | |
| Digital Zoom | 16x |
| Flip | 180° |
| Audio | |
| Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
| Protocol | |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users NAS (Network Attached Storage),Local PC for |
| Edge Storage | instant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS DMSS , |
| Smart Phone | IOS, Android |
| Interface | |
| Video Interface | 1 coaxial cable(75Ω) |
| RS485 | 1 |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Certifications | |
| Explosion-proof Marking | IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
| Electrical | |
| Power Supply | AC220V(AC100V ~ 240V) |
| Power Consumption | 35W, 60W (Heater On) |
| Environmental | |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Storage Temperature | -40°C ~ 65°C (-40°F ~ +149°F) |
| Ingress Protection | IP68 |
| Vandal Resistance | N/A |
| Construction | |
| Casing | 316L Stainless Steel |
| Dimensions | Φ334mm×402mm×301mm |
| Net Weight | 23.3kg(51.37lb) |
| Gross Weight | 27.5kg(60.63lb) |
| Ordering Information | |
| Type | Part Number Description 2MP 45x Explosion-proof PTZ DH-EPC245U-PTZ Network Camera, WDR, PAL |
| Accessories | |
| Optional | ： CZ300 ZAEX02 |
| DH-ZAZ660B | Junction Box Connector |
| Wall Mount | (ATEX/IECEx) (ATEX/IECEx) |
Informazioni addizionali
