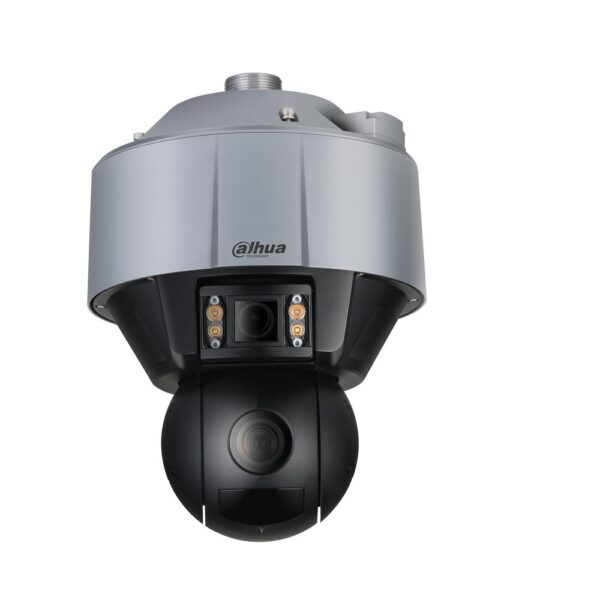

PTZ IP AI + panoramica 4 MP zoom 25x/6 mm IR/LED

Name: PTZ IP AI + panoramica 4 MP zoom 25x/6 mm IR/LED
Brand: Dahua
SKU: SDT5X425-4Z4-FA-0832
Price: 3854.59 EUR
Availability: BackOrder

Dahua

COD: SDT5X425-4Z4-FA-0832 Categoria: Telecamere IP speciali Tag: 4MP

3.854,59 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 7.709,18 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Starlight+ da interno/esterno IP67 con modulo panoramico, sensori CMOS 1/1.8", risoluzione 4 MP a 25fps, H.265+, ICR, ottica motorizzata 8~32 mm F1.6, zoom ottico 4x, luminosità 0.001 lux F1.6 (panoramica), ottica motorizzata 5.4~135 mm, zoom ottico 25x (contesto), portata illuminazione: luce bianca fino a 30 m, IR fino a 100 m, 1 porta LAN 10/100 Mbps, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio, 2/3D NR, WDR 120 dB, IVS (protezione perimetrale), metadati video, face recognition, smart tracking, PFA, micro SD card (512 GB), alimentazione 36 Vdc/Hi-PoE <40 W, staffa da parete PFB306W-S e alimentatore inclusi

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	Detail: 1/1.8" CMOS Panorama: 4 MP
Pixel	Detail: 4 MP Panorama: 2688 (H) × 1520 (V)
Max. Resolution	Detail: 2688 (H) × 1520 (V) Panorama: 1 s–1/30,000 s
Electronic Shutter Speed	Detail: 1 s–1/30,000 s
Scanning System	Progressive Panorama: Color: 0.001 lux@F1.6 B/W: 0.0001 lux@F1.6
Min. Illumination	Detail: Color: 0.001 lux@F1.6 B/W: 0.0001 lux@F1.6 0 lux (IR light on) Panorama (white light): 30 m (98.43 ft)
Illumination Distance	Detail (IR light): 100 m (328.08 ft) Panorama: Zoom Prio; Manual; Auto; Off
Illuminator On/Off Control	Detail: Zoom Prio; Manual; Auto; Off Panorama: 4 white lights
Illuminator Number	Detail: 4 IR lights
Lens
Focal Length	Detail: 5.4 mm–135 mm Panorama: F1.6
Max. Aperture	Detail: F1.6–F4.0 Panorama: H: 42°–15°; V: 23°–8°; D: 49°–17°
Field of View	Detail: H: 58°–3.5°; V: 35°–2°; D: 64°–4° Panorama: 4×
Optical Zoom	Detail: 25×
Focus Control	Auto; Semi-Auto; Manual Panorama: 2.5 m–6 m (8.20 ft–19.69 ft)
Close Focus Distance	Detail: 0.5 m–7 m (1.64 ft–22.97 ft) Panorama: Auto
Iris Control	Detail: Auto Detect Observe Recognize Identify Panorama: Panorama: Panorama: Panorama: 400 m 159.9 m 79.9 m 39.8 m (1,312.34 ft) (524.61 ft) (262.14 ft) (130.58 ft) Detail: Detail: Detail: Detail: 1,724 m 690 m 345 m 172 m (5,656.17 ft) (2,263.78 ft) (1,131.89 ft) (564.30 ft)
DORI Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Detail: Pan: 0° to 305° Tilt: –10° to 90° Panorama: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–25°/s
Manual Control Speed	Detail: Pan: 0.1°/s–400°/s; Tilt: 0.1°/s–200°/s Panorama: Pan: 100°/s; Tilt: 50°/s
Preset Speed	Detail: Pan: 360°/s; Tilt: 200°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Scan	5
Power-off Memory	Yes
Idle Motion	Preset; Scan; Tour DH-SD
PTZ Protocol	Pelco-P/D (auto recognition)
Intelligence
Video Metadata	non-motor vehicle image capture and attributes extraction Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving;
IVS (Perimeter Protection)	parking detection; people gathering; vehicle/human alarm classification Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where
Face Recognition	you can cutout one face at a time and customize the size to be a one-inch photo. It supports up to 5 face databases, where people can be added one by one or in batches. The face similarity can also be set, and faces can be compared against 10,000 faces
Smart Tracking	Auto Tracking 3.0; Linkage Tracking Uses deep learning algorithms and works with backend devices to accurately match targets, such as
Acupick	people and motor vehicles, and search through live and recorded videos to quickly locate targets
Video
Video Compression	smart H.264+
Streaming Capability	3 streams Panorama: 4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
Resolution	Detail: 4M (2688 × 1520); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640× 480); CIF (352 × 288) Panoramic: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Video Frame Rate	Detail: Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps)
Bit Rate Control	CBR; VBR
Video Bit Rate	H.265: 204 Kbps–7936 Kbps Panorama: Auto (ICR)
Day/Night	Detail: Auto (ICR)
BLC	Yes Panorama: 150 dB
WDR	Detail: 150 dB
HLC	Yes Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
White Balance	Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; Manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Digital Zoom	16×
Image Rotation	180° Panorama: ≥ 55 dB
S/N Ratio	Detail: ≥ 55 dB
Audio
Audio Compression	G729
Network
Network Port	RJ-45 (10/100 Base-T) TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP;
Network Protocol	IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP CGI; ONVIF Profile S & Profile G & Profile T & Profile （
Interoperability	M ）
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 50 and later versions Safari 10 and later versions
Management Software	DSS; NVR; Smart PSS
Mobile Client	iOS; Android
Port
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire)
Two-way Audio	Yes Capture; preset; tour; recordings on SD card; alarm
Alarm Linkage	digital input; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict
Alarm Event	detection; memory card state detection; memory space detection; illegal access
Alarm Input	load 5 mA 3-5 VDC); supports dry contact connection 1 channel out: dry contact, max load 1,000 mA 30
Alarm Output	VDC/500 mA 50 VAC
Audio I/O	1/1
Power
Power Supply	36 VDC(± 25%), 2.23 A ;Hi-PoE Basic: 21 W
Power Consumption	Max.: 40 W (PTZ, zoom, focus, IR light, white light, and smart plan enabled)
Environment
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	≤ 95% (RH) IP67; IK10; TVS 8000 V lightning protection; surge
Protection	protection; voltage transient protection
Product Dimensions	385 mm × Φ277 mm (15.16" × Φ10.91")
Net Weight	9 kg (19.84 lb)
Gross Weight	13.8 kg (30.42 lb)
Ordering Information
Type	Model Description
Dual-PTZ	DH-SDT5X425-4Z4- 4MP 25 Ordinary IR NETWORK PTZ CAMERA
Included:
DC36V/2.23A	PFB306W-S
Power Adapter	Wall Mount Bracket
Optional:
PFA150	PFB300C-S
Pole Mount Bracket	Ceiling Mount Bracket
