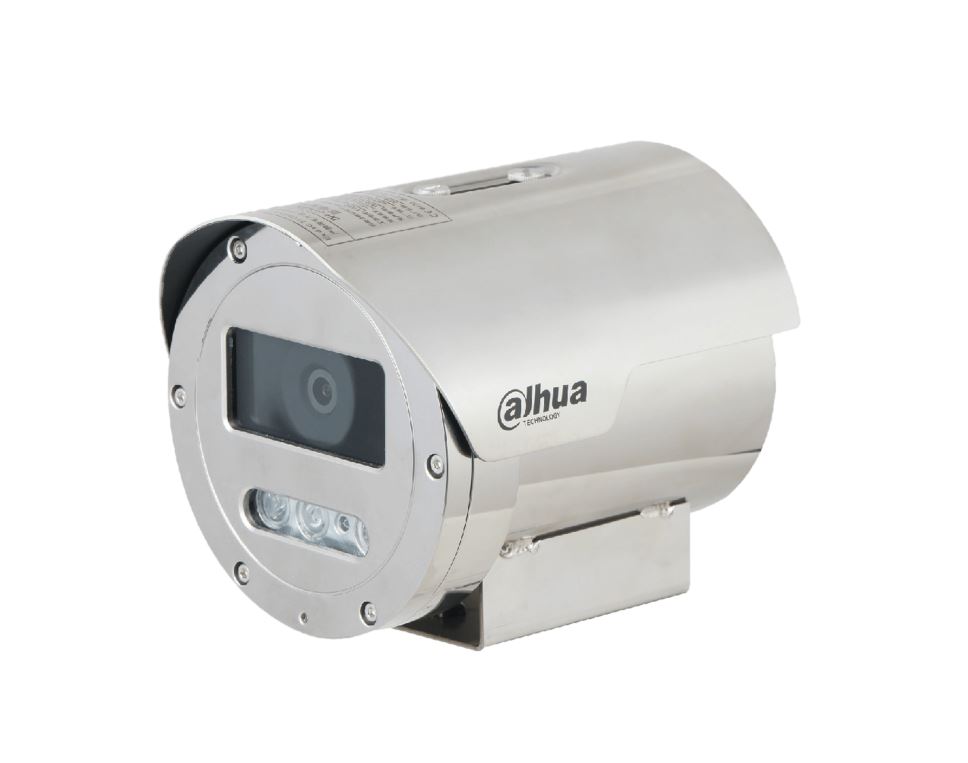

Bullet IP AI 4 MP zoom 4x IR ATEX IECEx

Name: Bullet IP AI 4 MP zoom 4x IR ATEX IECEx
Brand: Dahua
SKU: ECA3A1404-HNR-XB
Price: 1489.01 EUR
Availability: BackOrder

Dahua

COD: ECA3A1404-HNR-XB Categorie: Telecamere IP speciali, Videosorveglianza Tag: 4MP

1.489,01 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 2.978,02 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizMind Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx con case in acciaio inossidabile 316L, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, H.265+, ottica motorizzata 2.7~13.5 mm, luminosità 0.005 lux ƒ1.5, portata IR fino a 40 m, 1 porta LAN 10/100 Mbps, 1 ingresso e 1 uscita audio, 3D NR, WDR 120 dB, privacy mask 4 aree, IVS (protezione perimetrale), face detection, people counting, heat map, SMD 4.0, Quick Pick, micro SD card (512 GB), alimentazione 12 Vdc/PoE <11.09 W

Camera
Image Sensor	1/2.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	512 MB
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Scanning System	Progressive 0.005 lux@F1.5 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
Illumination Distance	Up to 50 m (164.04 ft) (IR)
Illuminator On/Off Control	Auto; Zoomprio; Manual
Illuminator Number	3 (IR light)
S/N Ratio	>56 dB
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	H: 99.4°–29°; V: 52.7°–16°; D: 118.5°–34°
Iris Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identfy) is a standard system (EN-62676-4) for defning the ability of a person viewing the video to distnguish persons or objects within a covered area. The numbers in this table do not reﬂect intelligent functon distances. For intelligent functon distances, refer to installaton and commissioning manual/project design tool.
Smart Event
IVS	Abandoned object; missing object
Intelligence
IVS (Perimeter Protection)	of vehicle and human); loitering detection, people gathering, and parking detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes
Face Detection	and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting	queue management; 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes
SMD	SMD 4.0 With AI NVR, quickly pick up the human/vehicle targets
Quick Pick	that users are interested in from SMD events Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+ AI H.265
AI Coding	AI H.264 Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video Frame Rate	third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	3 streams 4M (2688 × 1520); 3M (2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288);4M (2688 × 1520); 3.6M (2560
Resolution	× 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 32 kbps–8192 kbps
Video Bit Rate	H.265: 32 kbps–8192 kbps
Day/Night	Auto(ICR)/Color/B/W;Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Defog
Mirror	Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520
Image Rotation	resolution and lower)
Privacy Masking	4 areas
S/N Ratio	>56 dB
Audio
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; security exception
Network
Network Port	RJ-45 (10/100 Base-T) IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P ONVIF (Profile S; Profile G; Profile T); CGI; Milestone;
Interoperability	Genetec
User/Host	20 (Total bandwidth: 80 M)
Storage
Browser	Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android Configuration encryption;trusted execution;Digest;security logs;WSSE;account lockout;syslog;video encryption;802.1x;IP/MAC
Cyber Security	filtering;HTTPS;trusted upgrade;trusted boot;firmware encryption;generation and importing of X.509 certification
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5mA 3V–5V DC 1 channel out: dry contact, 1,000mA 30V DC/500mA
Alarm Output	50V AC
Power
Power Supply	12 VDC/PoE Basic: 3.63 W (12 VDC); 4.54 W (PoE)
Power Consumption	Max. (H.265+intelligence on +WDR +IR on + auto focus): 8.87 W (12 VDC); 11.09 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% IP68; TVS 2000V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Casing Material	SUS316L optional 215 mm x 149 mm x 151 mm (8.46" x 5.87" x 5.94") (L
Product Dimensions	x W x H)
Net Weight	5 kg (11.02 lb)
Gross Weight	6.6 kg (14.55 lb)
Ordering Information
Type	Model Description
4MP	4MP Explosion-proof IR Bullet DH-ECA3A1404-HNR-XB WizMind Network Camera
Accessories
(Optional)	CZ300 Explosion-proof Junction Box ZAEX02 Explosion-proof Stuffing Box ZANXG-1.0 Explosion-proof Flexible Tube
Optional:
DC12/1A	DH-EXB109 DH-ZAZ100W
Power Adapter	Wall Mount Bracket Universal Joint
CZ300	ZAEX02 ZANXG-1.0
Explosion-proof	Explosion-proof Explosion-proof
Junction Box	Stuffing Box Flexible Tube
