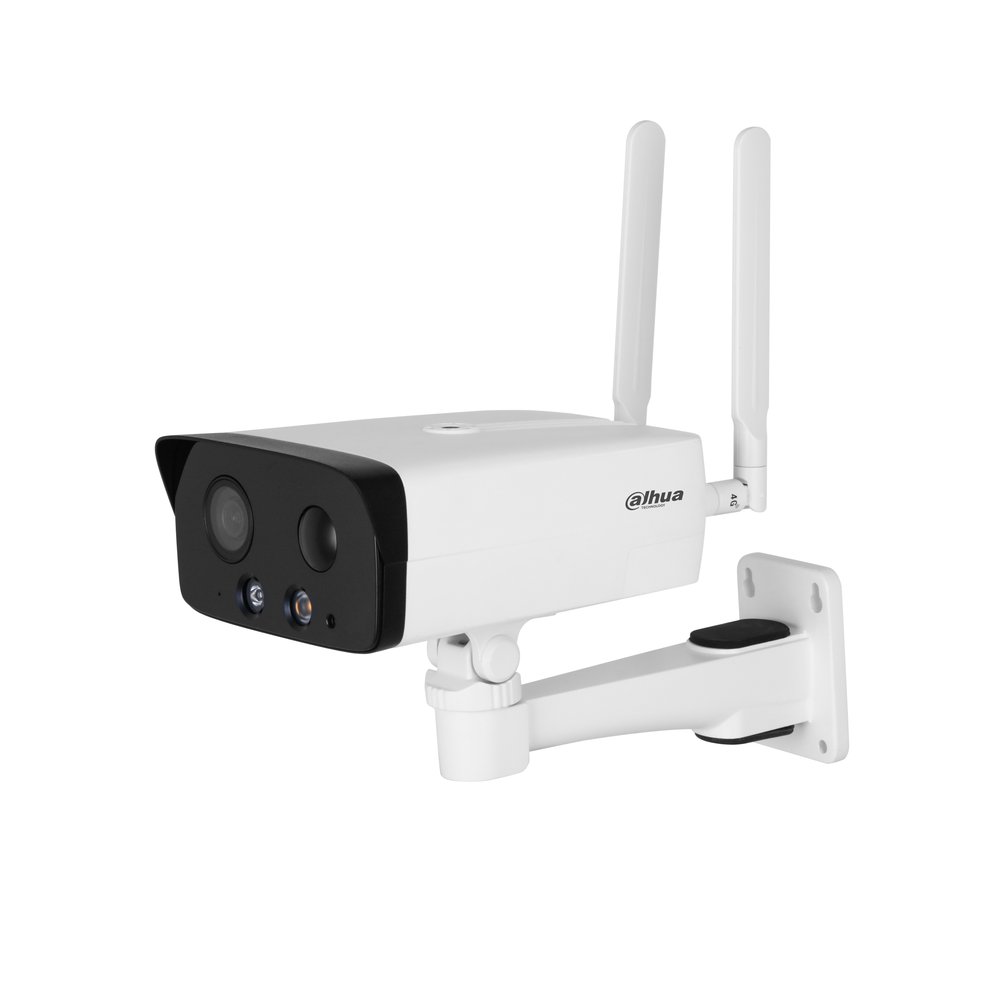

Bullet IP AI 4G 4 MP 3.6 mm IR/LED audio PIR

Name: Bullet IP AI 4G 4 MP 3.6 mm IR/LED audio PIR
Brand: Dahua
SKU: IPC-HFW3441DG-AS-4G-EAU-B
Price: 360.51 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW3441DG-AS-4G-EAU-B Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

360,51 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 721,02 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizSense 4G IP67, sensore CMOS progressivo 1/3", risoluzione 4 MP a 25fps, H.265+, ICR, ottica fissa M12 3.6 mm F1.6, luminosità 0.01 lux F1.6, portata IR/warm light fino a 50/30 m, PIR, microfono e speaker integrati, 1 porta di rete 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono e speaker integrati (comunicazione bidirezionale), RS485, protezione perimetrale, privacy mask 4 aree, 3D NR, WDR 120 dB, slot micro SD card (fino a 256 GB), eMMC (8 GB), alimentazione 12 Vdc <7.5 W, staffa da parete PFB121W inclusa

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Functions
Built-in Memory Chip	IP67
Camera
Image Sensor	1/3" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128MB
RAM	256MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.01 Lux@F1.6 (Color,30IRE)
Min. Illumination	0.001 Lux@F1.6 (B/W,30IRE) 0 lux (Illuminator on)
S/N Ratio	56 dB > IR: 50 m (164.04 ft)
Illumination Distance	Warm light: 30 m (98.43 ft)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	1 (IR LED); 1 (Warm light) Pan: 0°–360°
Angle Adjustment	Tilt: –60°–0° Rotation: 0°–360° 10 m (the height of device is 2.5 m, placed horizontally)
PIR Sensor Distance	5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm 2.8 mm: F1.6
Max. Aperture	3.6 mm: F1.6 6 mm: F1.6 2.8 mm: H: 102°; V: 54°; D:121°
Field of View	3.6 mm: H: 84°; V: 42°; D:101° 6 mm: H: 52°; V: 48°; D:61°
Iris Control	Fixed 2.8 mm: 0.9 m (2.95 ft)
Close Focus Distance	3.6 mm: 1.7 m (5.58 ft) 6 mm: 3.2 m (10.50 ft)
Dori
Distance	(406.82 ft) (162.73 ft) (81.36 ft) (40.68 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Video Compression	by the sub stream)
Video Frame Rate	sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Stream Capability	2 streams 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280
Resolution	× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 32 kbps–8192 kbps
Video Bit Rate	H.265: 32 kbps–8192 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Built-in Speaker	Yes
Audio Compression	G.711a;G.711Mu; G.726; PCM
Alarm
Alarm Event	audio detection; security exception; PIR alarm; external alarm; low battery alarm; light alarm; sound alarm
Network
Network Port	RJ-45 (10/100 Base-T) LTE FDD:B1/3/5/7/8/20/28 LTE TDD:B38/40/41
Frequency	WCDMA:B1/5/8 GSM/GPRS/EDGE:B3/5/8
SDK and API	Yes Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs;
Cyber Security	IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G); CGI
User/Host	20 (Total bandwidth: 80 M) Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support
Storage
Browser	Chrome Firefox
Management Software	DSS; DMSS
Mobile Client	iOS; Android
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5 mA 3–5 VDC
Alarm Output	1 channel out: 300 mA 12 VDC 1 (Only report the information of solar battery, such as
RS-485	power and battery level)
Power
Power Supply	12 VDC Sleep Mode: 0.03 W General Mode: 4 W
Power Consumption	Power Saving Mode: 2 W Max. (4G pulling stream+IR+speaker+warning light): 7.5 W
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤ 95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing	Metal + plastic 132 mm × 219 mm×179 mm (5.20" × 8.62" × 7.05")
Product Dimensions	(L × W × H) 280 mm × 239 mm × 146 mm (11.02" × 9.41" × 5.75")
Packaging Dimensions	(L × W × H)
Net Weight	680 g (1.50 lb)
Gross Weight	1180 g (2.60 lb)
Ordering Information
Type	Model Description DH-IPC-HFW3441DGP-AS- 4MP IR Fixed focal Bullet 4G-NL668EAU-B-0280B WizSense 4G Network Camera DH-IPC-HFW3441DGP-AS- 4MP IR Fixed focal Bullet
4MP Camera	4G-NL668EAU-B-0360B WizSense 4G Network Camera DH-IPC-HFW3441DGP-AS- 4MP IR Fixed focal Bullet 4G-NL668EAU-B-0600B WizSense 4G Network Camera PFB121W Wall Mount Bracket PFA162 Universal Joint PFA150 Pole Mount Bracket PFA121 Water-proof Junction Box
Optional:
PFA162	PFA150 PFA121
Universal	Pole Mount Water-proof Junction
Joint	Bracket Box PFM900-E TF-P100
PFA156	Integrated MicroSD
Pole Mount	Mount Tester Memory Card
