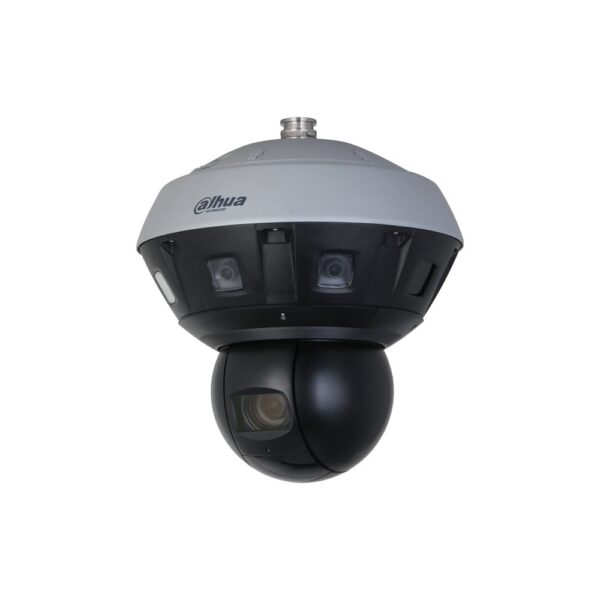

Telecamera panoramica 270° + PTZ IP AI 24/4 MP 2.8 mm/zoom 40x IR

Name: Telecamera panoramica 270° + PTZ IP AI 24/4 MP 2.8 mm/zoom 40x IR
Brand: Dahua
SKU: PSDW82442M-A270-D440-S3
Price: 5640.67 EUR
Availability: BackOrder

Dahua

COD: PSDW82442M-A270-D440-S3 Categoria: Telecamere IP speciali Tag: 4MP

5.640,67 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 11.281,34 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera hubble panoramica (270°) IP Starlight multi-sensore + PTZ IP AI WizMind da interno/esterno IP66, sensori CMOS 1/1.8", risoluzione 24 MP a 25fps (panoramica), 4 MP a 25fps (PTZ), H.265+, ottica fissa M16 2.8 mm ƒ1.4 (panoramica), zoom ottico 40x (5.5~220 mm ƒ1.4), portata IR fino a 400 m (PTZ), 1 porta LAN 10/100/1000 Mbps, 7 ingressi e 3 uscite allarme, 2 ingressi e 2 uscite audio, 1 porta RS485, fibra ottica, privacy mask 4/24 aree (panoramica/PTZ), 3D NR, WDR 120 dB, IVS (protezione perimetrale), parking detection, micro SD card (512 GB), alimentazione 36 Vdc <99 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Camera
Image Sensor	CMOS Channel 2 (PTZ): 1/1.8" 4 Megapixel progressive CMOS Channel 1 (Panoramic): 24 MP
Pixel	Channel 2 (PTZ): 4 MP Channel 1 (Panoramic): 8192 (H) × 2700 (V)
Max. Resolution	Channel 2 (PTZ): 2560 (H) × 1440 (V) Channel 1 (Panoramic): 8 GB
ROM	Channel 2 (PTZ): 8 GB Channel 1 (Panoramic): 4 GB
RAM	Channel 2 (PTZ): 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s Channel 1 (Panoramic): 0.0005 lux@F1.0 (Color,30 IRE) 0.0001 lux@F1.0 (B/W,30 IRE)
Min. Illumination	Channel 2 (PTZ): 0.001 lux@F1.4 (Color,30 IRE) 0.0005 lux @F1.4(B/W,30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56 dB Channel 1 (Panoramic): No
Illumination Distance	Channel 2 (PTZ): Up to 400 m (1312.34 ft)
Illuminator On/Off Control	Auto; Manual; Zoomprio Channel 1 (Panoramic): No
Illuminator Number	Channel 2 (PTZ): 7 (IR LED) Pan: 0° to 360°
Pan/Tilt/Rotation Range	Tilt: -11° to 90° Channel 1 (Panoramic): Horizontal welding/lithium
Built-in Battery	battery/3 V Channel 2 (PTZ): Horizontal welding/lithium battery/3 V
Lens
Lens Type	Channel 2 (PTZ): Vari-focal Channel 1 (Panoramic) : M16
Lens Mount	Channel 2 (PTZ): Module Channel 1 (Panoramic) : 2.8 mm
Focal Length	Channel 2 (PTZ): 5.5 mm–220 mm Channel 1 (Panoramic) : F1.0
Max. Aperture	Channel 2 (PTZ): F1.4 Channel 1 (Panoramic): H: 270° V: 103°
Field of View	Channel 2 (PTZ): H: 2.2°–61.8° V: 1.3°–36.3° D: 2.4°–69.2° Channel 1 (Panoramic): No
Iris Control	Channel 2 (PTZ): P-iris Channel 1 (Panoramic): 1.4 m (4.59 ft)
Close Focus Distance	Channel 2 (PTZ): 0.5 m–2 m (1.64 ft–6.56 ft) (T to)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS	Channel 2 (PTZ): Yes
Intelligence
Intelligence Description	Channel 2 (PTZ): Perimeter protection, video metadata, face recognition Channel 1 (Panoramic): Tripwire; intrusion; parking detection
IVS (Perimeter Protection)	Channel 2 (PTZ):Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection Channel 1 (Panoramic): No Channel 2 (PTZ): Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised,
Face Recognition	calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot) Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures. Channel 1 (Panoramic):Vehicle density; parking upper
Vehicle Density	limit; traffic congestion alarm Channel 2 (PTZ): No Channel 1 (Panoramic):Crowd map (Large-Scale AI Models), global crowd density; crowd density in area;
Crowd Distribution Map	people counting in area; Channel 2 (PTZ): No
Video Metadata	year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella. Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream) Smart H.264+
Smart Codec	Smart H.265+ Channel 1 (Panoramic) : Main stream: 8192×2700 @(1–25/30 fps) sub stream: 2048×680 @ (1–25/30 fps) third stream: 3840×1248 @ (1–25/30 fps)
Video Frame Rate	Channel 2 (PTZ): Main stream: 2560×1440@ (1–25/30 fps) sub stream: 704×576@ (1–25/30 fps) third stream:1920×1080@ (1–25/30 fps)
Stream Capability	3 streams Channel 1 (Panoramic) : Main stream: 8192 × 2700; 7680 × 2520; 5760 × 1896; 4096 × 1360 sub stream: 2048 × 680; 1600 × 532; 1280 × 420 third stream: 3840 × 1248; 2560 × 840
Resolution	Channel 2 (PTZ): Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720 sub stream: 704 × 576; 640 × 480; 352 × 288 third stream: 1920 × 1080; 1280 × 960; 1280 × 720
Bit Rate Control	CBR/VBR Channel 1 (Panoramic): H.264: 127 kb/s–32768 kb/s H.265: 50 kb/s–32768 kb/s
Video Bit Rate	Channel 2 (PTZ): H.264: 32 kb/s–15872 kb/s H.265: 12 kb/s–9472 kb/s Channel 1 (Panoramic): No
Day/Night	Channel 2 (PTZ): ICR
BLC	Yes
HLC	Yes Channel 1 (Panoramic): 120 dB
WDR	Channel 2 (PTZ): 120 dB Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto; Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Default Bit Rate with	Channel 1 (Panoramic): 8192 kb/s (8192 × 2700)
Default Resolution	Channel 2 (PTZ): 6144 kb/s (2560 × 1440) Channel 1 (Panoramic) : Yes (4 areas)
Region of Interest (RoI)	Channel 2 (PTZ): Yes (8 areas)
Image Stabilization	Channel 2 (PTZ): No Channel 1 (Panoramic): No
Defog
Privacy Masking	Channel 2 (PTZ): 24 areas (8 for each preset) Channel 1 (Panoramic): No
Image Correction	Channel 2 (PTZ): No
Audio
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default
Audio Sampling	8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz
Alarm
Alarm Event	congestion; parking upper limit Channel 2 (PTZ): Tripwire; intrusion; parking detection;crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs;
Cyber Security	IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S/Profile G/ Profile T); CGI
User/Host	20 (Total bandwidth: 400 M) FTP; SFTP; Micro SD card (support max. 512 GB); NAS;
Storage
Browser	Chrome Firefox
Management Software	SmartPSS Lite; DSS
Mobile Client	NA
Ptz
Pan/Tilt Range	Tilt: –11° to 90°, auto flip 180° Pan: 240°/s
Manual Control Speed	Tilt: 100°/s"
Telephoto Speed Limit	Yes Pan: 0.1°
Positioning Accuracy	Tilt: 0.1°
Positioning Accuracy	Yes
Remote Lens Reset	Yes
Remote PTZ Reset	Yes
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan
Time Task	Yes
3D Positioning	Yes
PTZ Limit	Yes
Position Display	Yes
Information Display	Yes
Time Display	Yes
PTZ Restart	Yes
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Optical Module	SFP optical module, single mode, single fiber 20 KmTX-
Specification	1310 nm/RX-1550 nm
Optical Fiber	FC Gigabit SFP optical module, single mode, single fiber TX-
Optical Fiber Module Type	1550 nm/RX-1310 nm
Audio Input	2 channels (terminal)
Audio Output	2 channels (terminal)
Alarm Input	7 channels in: 5mA 3V–5V DC
Alarm Output	3 channels out: 1,000mA 30V DC/500mA 50V AC
Analog Output	1 channel (CVBS output: BNC)
Power
Operating Voltage	36 VDC (±50%)
Power Supply	36 VDC Basic: 59 W (36 VDC)
Power Consumption	Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 99 W (36 VDC)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +70 °C (–40°F to +158°F)
Storage Humidity	≤95%
Protection	IP66
Structure
Casing	Metal + plastic
Product Dimensions	Φ383 mm × 462 mm (15.08" × Φ18.19") 500 mm × 500 mm × 658 mm (19.69" × 19.69" × 25.91")
Packaging Dimensions	(L × W × H)
Net Weight	14.4 kg (31.75 lb)
Gross Weight	20.3 kg (44.75 lb)
Installation	Wall mount; ceiling mount; pole mount
Power Adapter	Included
Lens
Power Output	700 mA
Others
Calibration	Manual/Auto
Ordering Information
Type	Model Description DH-PSDW82442M- 24 MP Multi-Sensor 270° Panoramic PTZ A270-D440-S3 Hubble WizMind Network Camera
24MP Camera	PSDW82442M- 24 MP Multi-Sensor 270° Panoramic PTZ A270-D440-S3 Hubble WizMind Network Camera ADS-180EL-36-1 Power Adapter 360180E PBW059-00 Mount Adapter PFB710C-SG Ceiling Mount Bracket
Included:
ADS-180EL-36-1	PBW059-00
360180E	Mount Adapter
Optional:
PFB710C-SG	PFB7320W-SG PFB710W-SG
Ceiling Mount	Wall / Pole Mount Wall/Pole Mount Bracket Bracket Bracket
PFA153-SG	TF-P100
Pole Mount	MicroSD Bracket Memory Card
