Bullet IP 4 MP 4 mm IR ATEX IECEx

Name: Bullet IP 4 MP 4 mm IR ATEX IECEx
Brand: Dahua
SKU: ECA2A1400-HN-0400
Price: 858.27 EUR
Availability: BackOrder

Dahua

COD: ECA2A1400-HN-0400 Categorie: Telecamere IP speciali, Videosorveglianza Tag: 4MP

858,27 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.716,54 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

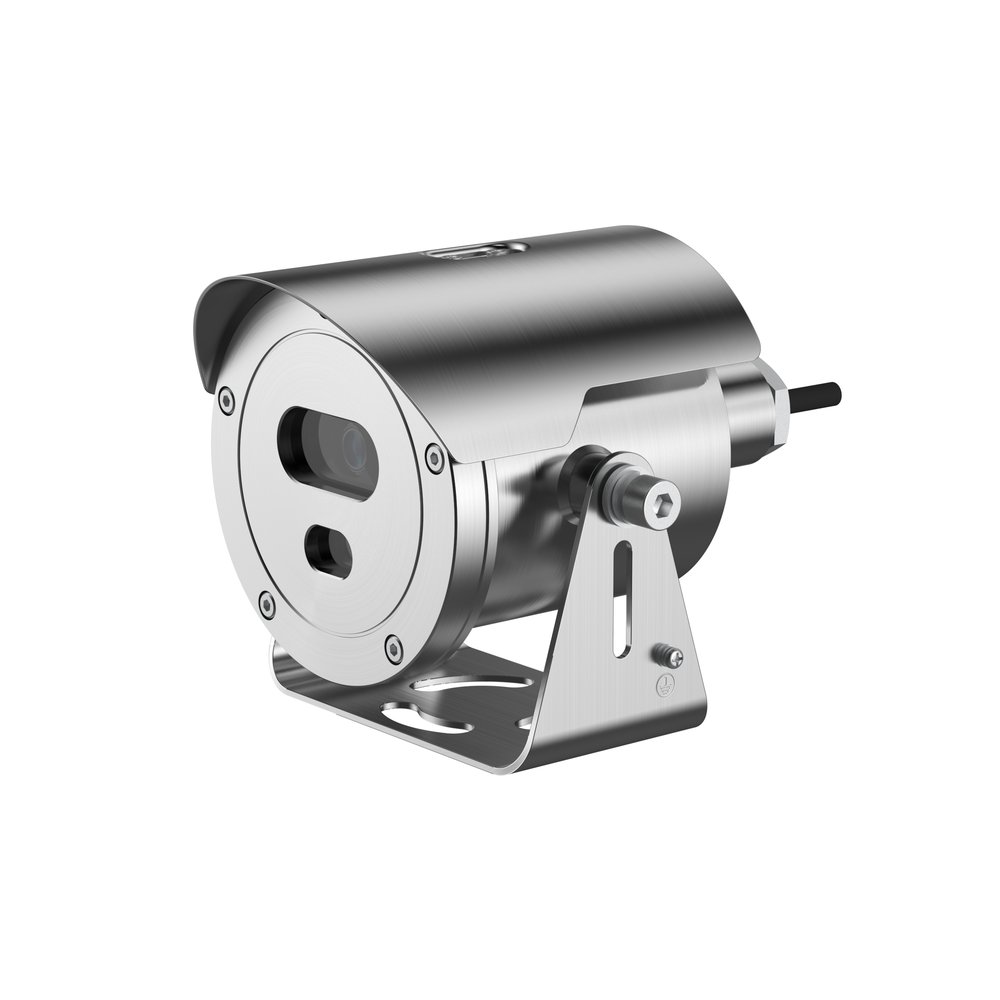

Telecamera bullet IP Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, H.265+, ICR, ottica fissa 4 mm, luminosità 0.005 lux ƒ1.8, portata IR fino a 30 m, 1 porta LAN 10/100 Mbps, 2/3D NR, WDR, IVS, human detection, SMD, micro SD card (512 GB), alimentazione 12 Vdc <3.5 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/2.8" CMOS 4 MP
Pixel	2560 (H) × 1440 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.005 lux@F1.8
Min. Illumination	B/W: 0.0005 lux@F1.8
Illumination Distance	30 m (98.43 ft) (IR)
Illuminator On/Off Control	Manual; Smart IR; Off
Illuminator Number	1 (IR)
Lens
Focal Length	6 mm; 4 mm
Max. Aperture	F1.8
Field of View	H: 49°; V: 37°; D: 61°;H: 81°; V: 59°; D: 106°
Optical Zoom	1
Close Focus Distance	0.2 m (0.66 ft); 0.6 m (1.97 ft);
Iris Control	Auto; semi-auto; manual
Iris Control	Fixed
Smart Event
IVS	Tripwire; intrusion
Human Detection	Yes
SMD	Yes
Video
Video Compression	Stream); Smart H.264+
Streaming Capability	2 streams 4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 ×
Resolution	960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)
Video Frame Rate	Sub stream: D1/CIF@(1–25/30 fps)
Bit Rate Control	CBR/VBR H.264: 32 kbps–8192 kbps
Video Bit Rate	H.265: 32 kbps–8192 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	DWDR
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Image Rotation	180°
S/N Ratio	≥ 55 dB
Network
Network Port	RJ-45 (10/100 Base-T) UDP;TCP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NT
Network Protocol	P;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Interoperability	CGI; ONVIF
Streaming Method	Unicast/Multicast
User/Host	20
Storage
Browser	Firefox 52 and earlier versions Safari
Management Software	DMSS; DSS Pro
Mobile Client	iPhone;Windows Phone;iPad;iOS;Android
Port
Alarm Linkage	Capture; recordings; send emails Motion/tampering detection; network disconnection
Alarm Event	detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	PoE (802.3af) Basic: 2 W
Power Consumption	Max.: 3.5 W (illuminator)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% IP68 (2 m/2 h), TVS 6000V lightning proof; surge
Protection	protection; voltage transient protection
Structure
Casing Material	Stainless steel
Product Dimensions	173.3 mm × 144 mm × 126.5 mm (6.82" × 5.67" × 4.98")
Net Weight	2.3 kg (5.07 lb)
Gross Weight	3 kg (6.61 lb)
Ordering Information
Type	Part Number Description 4MP Starlight IR Explosion-proof DH-ECA2A1400-HN
4MP Starlight	Camera (4mm)
IR EXPLOSION-	4MP Starlight IR Explosion-proof
PROOF CAMERA	DH-ECA2A1400-HN Camera (6mm) DH-EXB109 Wall mount bracket CZ300 Junction Box (ATEX/IECEx)
Accessories
(Optional)	ZANXG-1.5 Flexible Tube (ATEX/IECEx) PFA5500 Column Mount
