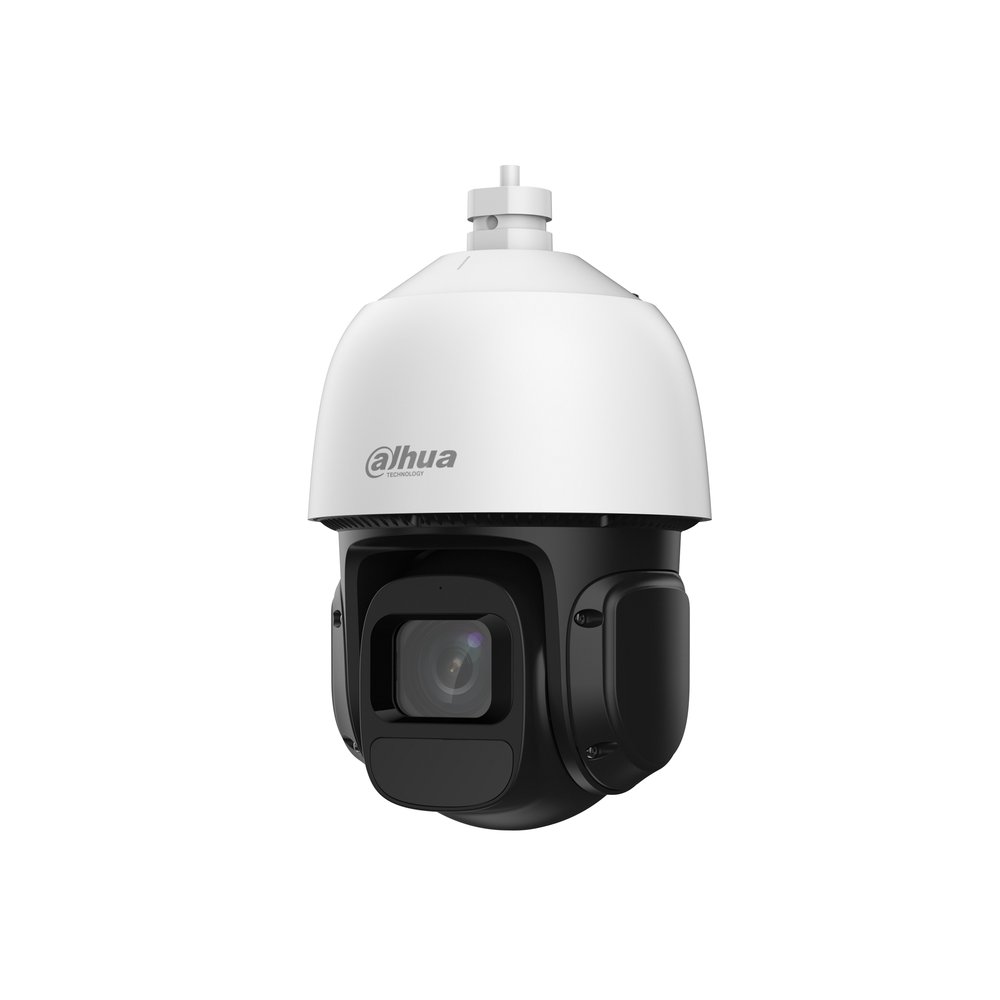

PTZ IP AI MP zoom 16x IR/LED mic

Name: PTZ IP AI MP zoom 16x IR/LED mic
Brand: Dahua
SKU: SD3D416NB-GNY
Price: 448.96 EUR
Availability: BackOrder

Dahua

COD: SD3D416NB-GNY Categorie: Telecamere IP, Videosorveglianza

448,96 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 897,92 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera PTZ IP AI WizSense Starlight da interno/esterno IP66, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, H.265+, rotazione PAN 360° / TILT -15°~90°, ICR, ottica motorizzata 5~80 mm F1.6~3.5, zoom ottico 16x, luminosità 0.005 lux F1.6, portata IR fino a 80 m, 1 porta RJ-45 10/100 Mbps, 2/3D NR, IVS, Auto Tracking 1.0, SMD 3.0, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc/PoE+ <18 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/2.8" CMOS
Pixel	4 MP
Max. Resolution	2560 (H) × 1440 (V)
ROM	128 MB
RAM	128 MB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive Color: 0.005 lux@F1.6; Black and white: 0.0005
Min. Illumination	lux@F1.6; 0 lux (IR light on)
Illumination Distance	80 m (262.47 ft) (IR)
Illuminator On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	3 (IR)
Lens
Focal Length	5.0 mm–80 mm
Max. Aperture	F1.6–F3.5
Field of View	H: 50.56°–3.84°; V: 29.48°–2.16°; D: 57.69°–4.39°
Optical Zoom	16×
Focus Control	Auto; Semi-auto; Manual
Close Focus Distance	0.1 m–1 m (0.33 ft–3.28 ft)
Iris Control	Auto; Manual; Iris prio
Lens
DORI Distance	a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s
Preset Speed	Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Power-off Memory	Yes
Idle Motion	Preset
PTZ Protocol	DH-SD
Smart Event
IVS	Tripwire; intrusion
Intelligence
Smart Tracking	Auto Tracking 1.0
SMD	SMD 3.0
Video
Video Compression	H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	2 streams 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30
Video Frame Rate	fps) Sub stream: D1/VGA/CIF@(1–25/30 fps)
Bit Rate Control	CBR/VBR H264: 96–8,192 kbps
Video Bit Rate	H265: 38–8,192 kpbs
Day/Night	Auto (ICR); Color/B/W
BLC	Yes
WDR	120 dB
HLC	Yes Auto; indoor; outdoor; ATW; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Digital Zoom	5×
Image Rotation	180°
S/N Ratio	≥55 dB
Network
Network Port	RJ-45 (10/100 Base-T) HTTP;HTTPS;TCP/
Network Protocol	IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL; FTP;ARP;RTCP;RTP;IP Filter;RTMP
Interoperability	CGI;SDK;ONVIF (Profile S & Profile T)
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	All Firefox versions; All Safari versions
Management Software	DSS Pro
Mobile Client	iOS;Android
Port
Alarm Linkage	Capture; recording; send email Motion/tampering detection; network disconnection
Alarm Event	detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	PoE+ (802.3at) Basic: 8 W
Power Consumption	Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)
Power Adapter	Optional
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95% IP66;TVS 6000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Product Dimensions	240 mm × Φ151.5 mm (9.45" × Φ5.94")
Net Weight	1.5 kg (3.31 lb)
Gross Weight	2.5 kg (5.51 lb)
Filter
Remarks	requirements on the precision, contact your local sales representative for assistance with selecting the model.
Ordering Information
Type	Model Description 4M 16x IR WizSense
Network PTZ Camera	DH-SD3D416NB-GNY Network PTZ Camera PFB5310W Wall Mount Bracket DH-PFB300C Ceiling Mount Bracket PFA7711 Mount Adapter
Accessories
DH-PFA121	DH-PFA150 DH-PFA156
Water-proof Junction Box	Pole Mount Bracket Pole Mount Bracket
DH-PFB300C	G3416GW PFA7711
Ceiling Mount Bracket	G3/4" Water Joint Mount Adapter
