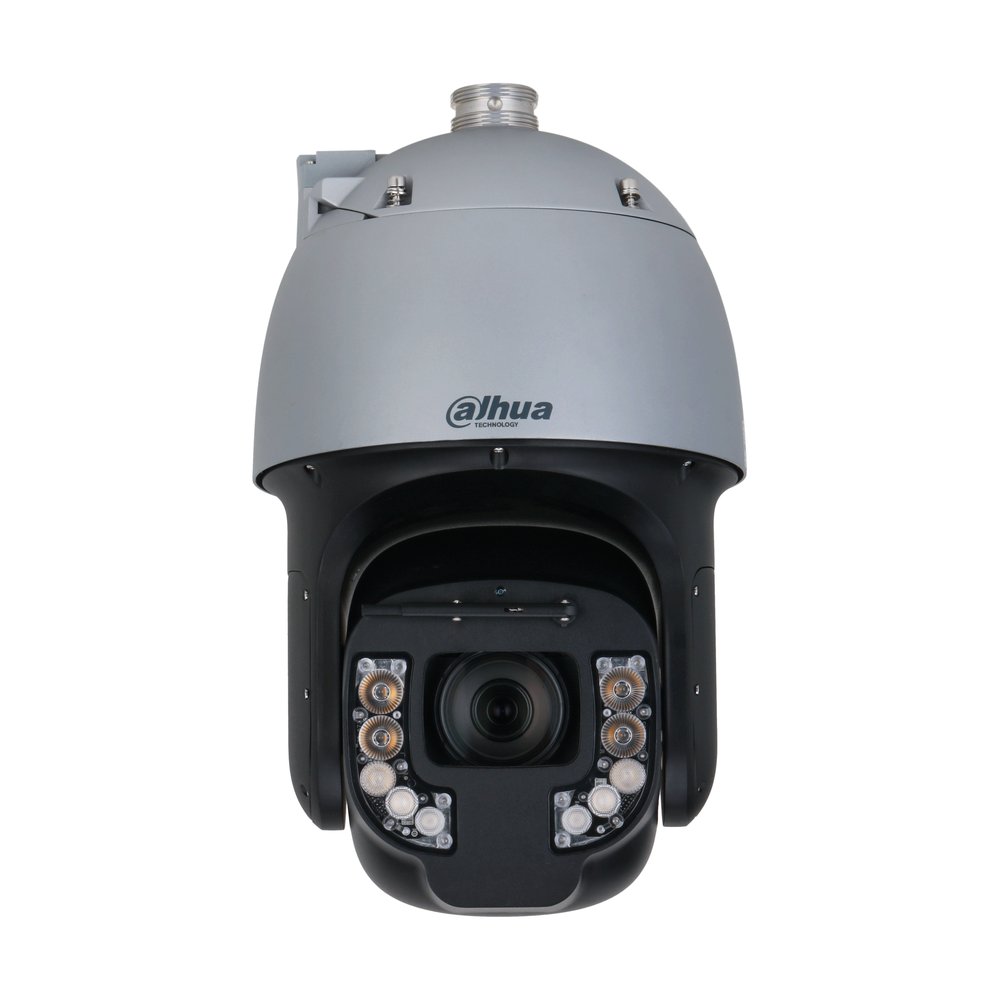

PTZ IP AI 8 MP zoom 48x IR/LED

Name: PTZ IP AI 8 MP zoom 48x IR/LED
Brand: Dahua
SKU: SD8C848PA-HNF
Price: 5251.49 EUR
Availability: BackOrder

Dahua

COD: SD8C848PA-HNF Categorie: Telecamere IP, Videosorveglianza Tag: 8MP

5.251,49 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 10.502,98 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -20°~90°, H.265+, ICR, zoom ottico 48x (6.25~300 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.001 lux ƒ1.4~4.5 (0 con IR On), portata IR/LED fino a 250/80 m, porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati, face recognition, auto-tracking, micro SD card (512 GB), tergiottica smart, alimentazione 36 Vdc <33 W

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/1.8" CMOS
Pixel	8 MP
Max. Resolution	3840 (H) × 2160 (V)
ROM	8 GB
RAM	2 GB
Electronic Shutter Speed	1/1 s–1/30,000 s
Scanning System	Progressive Color: 0.005 lux@F1.4
Min. Illumination	B/W: 0.0005 lux@F1.4 0 lux (dual light fusion on) 80 m (262.46 ft) (dual light fusion-only white light on)
Illumination Distance	250 m (1,476.38 ft) (dual light fusion-only IR light on)
Illuminator On/Off Control	Zoom Prio; Manual; Smart IR; Off
Illuminator Number	10 (dual light fusion)
Lens
Focal Length	6.25 mm–300 mm
Max. Aperture	F1.4–F4.5
Field of View	H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9°
Optical Zoom	48×
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.5 m–2 m (1.64–6.56 ft)
Iris Control	Auto; manual Detect Observe Recognize Identify
DORI Distance	6,000 m 2,381 m 1,200 m 600 m (19,685.04 ft) (7,811.68 ft) (3,937.01 ft) (1,968.50 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Ptz
Pan/Tilt Range	Tilt: –20° to +90° Pan: 0.1°/s–240°/s
Manual Control Speed	Tilt: 0.1°/s–100°/s
Preset Speed	Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset; Pattern; Tour; Scan
PTZ Protocol	Pelco-P/D (auto recognition)
Intelligence
Video Metadata	and non-motor vehicle image capture and attributes extraction. Tripwire and intrusion. Support alarm triggering by target
IVS (Perimeter Protection)	types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Recognition	Yes
Video
Video Compression	H.264
Streaming Capability	3 streams 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704
Resolution	× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Video Frame Rate	Sub stream 1: D1/VGA/CIF (1-25/30 fps) Sub stream 2: 1080p/960p/720p (1-25/30 fps)
Bit Rate Control	CBR; VBR H.264: 3328 kbps–16384 kbps
Video Bit Rate	H.265:1280 kbps–9984 kbps
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	120 dB
HLC	Yes Auto; indoor; outdoor; tracking; manual; sodium lamp;
White Balance	natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Defog
Digital Zoom	16×
Image Rotation	180° Up to 24 areas can be set, with up to 8 areas in the same
Privacy Masking	view
S/N Ratio	≥55 dB
Audio
Audio Compression	PCM
Network
Network Port	RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS;
Network Protocol	DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP
Interoperability	ONVIF (Profle S&G&T); GB/T28181; CGI
Streaming Method	Unicast; Multicast
User/Host	20 (total bandwidth: 64 M)
Storage
Browser	Firefox 52ESR and earlier versions Safari
Management Software	Smart PSS; DSS; IVSS
Mobile Client	iOS; Android
Port
Analog Output	1 channel (CVBS output, BNC)
RS-485	1 (baud rate: 1200 bps–115200 bps)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT, bare wire)
Two-way Audio	Yes
Alarm Input	7 (on-off value input: 0–5 VDC)
Alarm Output	2 Capture; preset; tour; pattern; recordings on SD card;
Alarm Linkage	alarm digital input; client E-map; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder
Alarm Event	state detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply	36 VDC, 2.23 A (± 25%), Hi-PoE Basic: 18 W
Power Consumption	Max.: 33 W (illuminator + PTZ)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95% IP67; TVS 8000 V lightning proof; surge protection;
Protection	voltage transient protection
Structure
Product Dimensions	442 mm × Φ262 mm (17.40" × Φ10.31")
Net Weight	10.3 kg (22.71 lb)
Gross Weight	12.5 kg (27.56 lb)
Ordering Information
Type	Model Description DH-SD8C848PA- 8M 48x Starlight IR WizMind Network PTZ HNF
Camera
8M Camera	DH-SD8C848PA- 8M 48x Starlight IR WizMind Network PTZ HNF
Included:
DC36V/2.23A	PFB306W-S
Power Adapter	Wall Mount Bracket
:
PFB718C-SG	PFB711C-SG PFA5500 + PFB306W-S
Ceiling Mount	Ceiling Mount Vertical Pole Mount Bracket
Bracket	Bracket PFA151 + PFB306W-S
PFA5500 + PFB718C-SG	Corner Mount
Horizontal Pole Mount	Bracket
