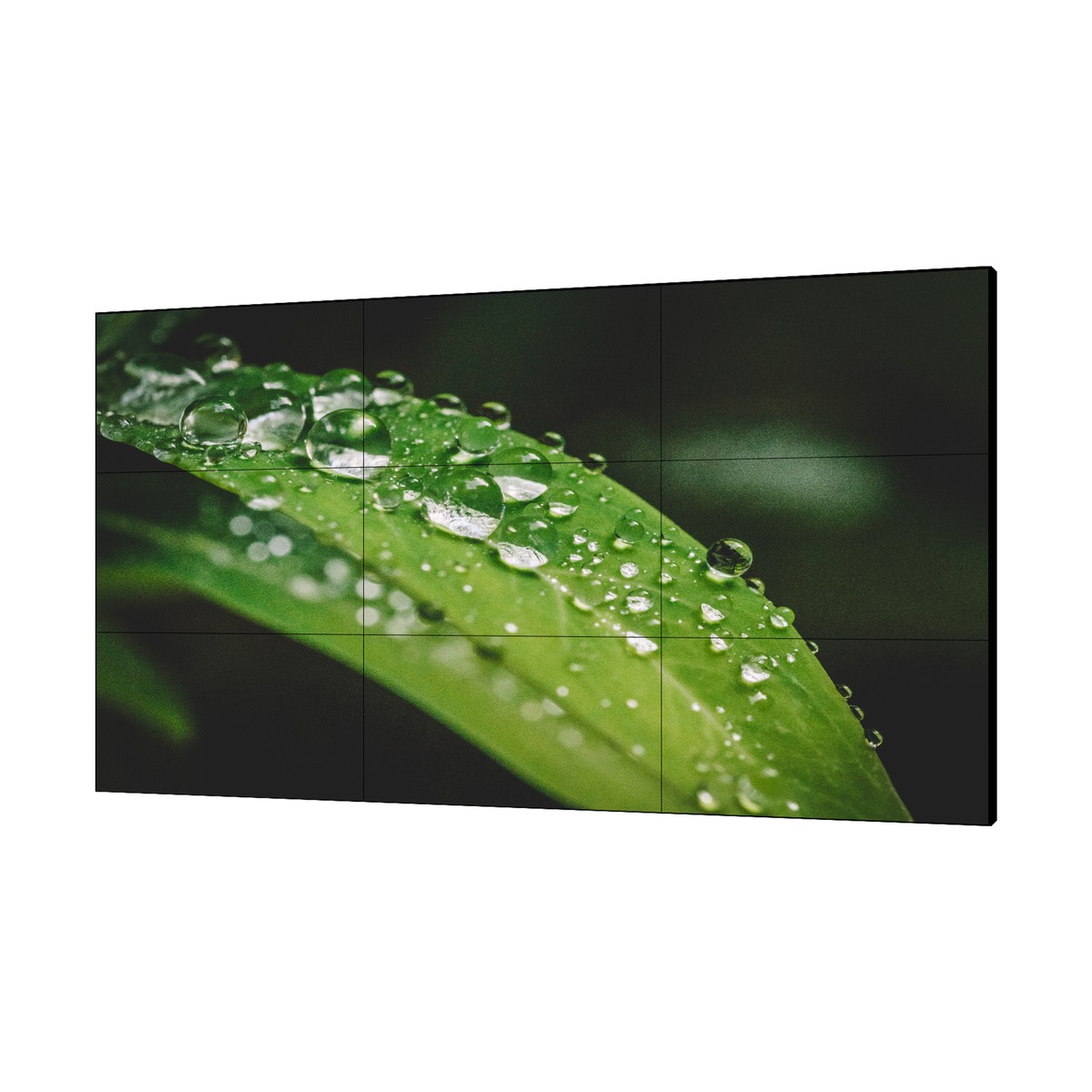

Pannello video wall 65" cornice 3.5 mm 500 nit
Pannello video wall DLED da 65" UHD formato 16:9, tecnologia ADS, spessore cornice 3.5 mm (2.3 mm T/L + 1.2 mm B/R), risoluzione 3840×2160, contrasto 1200:1, luminosità 500 nit, angolo di visione 178°/178°, ingressi: 1 VGA (D-sub), 1 DVI-D, 2 HDMI, 1 DP, 1 RS232, 1 audio, 1 OPS, 1 IR, uscite: 1 DP, 1 RS232, 1 audio, supporto daisy chain HDMI, VESA 600×400 mm, M6, alimentazione 100~240 Vac <215 W, MTBF 50000 h
Datasheet
| Display | |
| Model | DHI-LS650KCM-UF |
| Screen Size | 65 inch |
| Viewing Size | 1428.48 (H) × 803.52 (V) mm |
| Lifespan | 50,000 hrs |
| Backlight | DLED |
| Aspect Ratio | 16:9 |
| Color Temperature | 10000 K ± 1000 K |
| Brightness | 500 cd/m² |
| Static Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 45,000:1 |
| H-Scanning Frequency | 129.8 kHz–142.1 kHz |
| V-Scanning Frequency | 59 Hz–61 Hz |
| Maximum Pixel Frequency | 77 MHz |
| Pixel Pitch | 0.372 mm × 0.372 mm (0.01" × 0.01") |
| Resolution | 3840 (H) × 2160 (V) |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Display Color | 8 Bit |
| Color Gamut | 72% NTSC (typ.) |
| Viewing Angle | 178° (H) / 178° (V) |
| LCD Technology | ADS |
| Surface Treatment | Haze 25%, 3H |
| Device Ports | |
| Input Port | 1 × DP 1.4 (3840 × 2160@60 Hz), 1 × VGA (1920 × 1080@60 Hz), 1 × DVI (3840 × 2160@30 Hz), 1 × RS-232 in, 1 × IR, 1 × Audio in 1 × RS-232 out, 1 × DP out (3840 × 2160@30 Hz), 1 × |
| Output Port | Audio out |
| General | |
| Power Supply | 100–240 VAC (±10%), 50/60 Hz |
| Power Consumption | 131.5 W (basic), 217 W (typ.), 255 W (max) |
| Standby Power | <0.5 W |
| Control Mode | and infrared remote control. |
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Operating Humidity | 10%–80% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| Operation Hours | 7 × 24 hrs 1,432.6 mm × 807.6 mm × 128.3 mm (56.40" × 31.80" × |
| Product Dimensions | 5.05") (L × H × W) 1,725 mm × 1,048 mm × 295 mm (67.91" × 41.26" × |
| Packaging Dimensions | 11.61") (L × H × W) |
| Bezel Width | 2.3 mm (U/L), 1.2 mm (R/B) |
| Net Weight | 37.1 kg (81.79 lb) |
| Gross Weight | 52.8 kg (116.4 lb) |
| Wall Mount VESA | 600 mm × 400 mm (23.62" × 15.75") 1 × Power Cord (European Standard) 1 × Network Cable 1 × DP Cable 1 × Legal and Regulatory Information 1 × User's Manual |
| Accessory | 2 × Dry Cell 1 × ERP Energy Label 1 × QR Code 1 × Product Operating Instruction 1 × Remote Control |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 65 inch 3.5mm LCD |
| LCD Display Wall Unit | Display Wall Unit (LCD DHI-LS650KCM-UF |
| (LCD DISPLAY) | DISPLAY) |
| Installation | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
