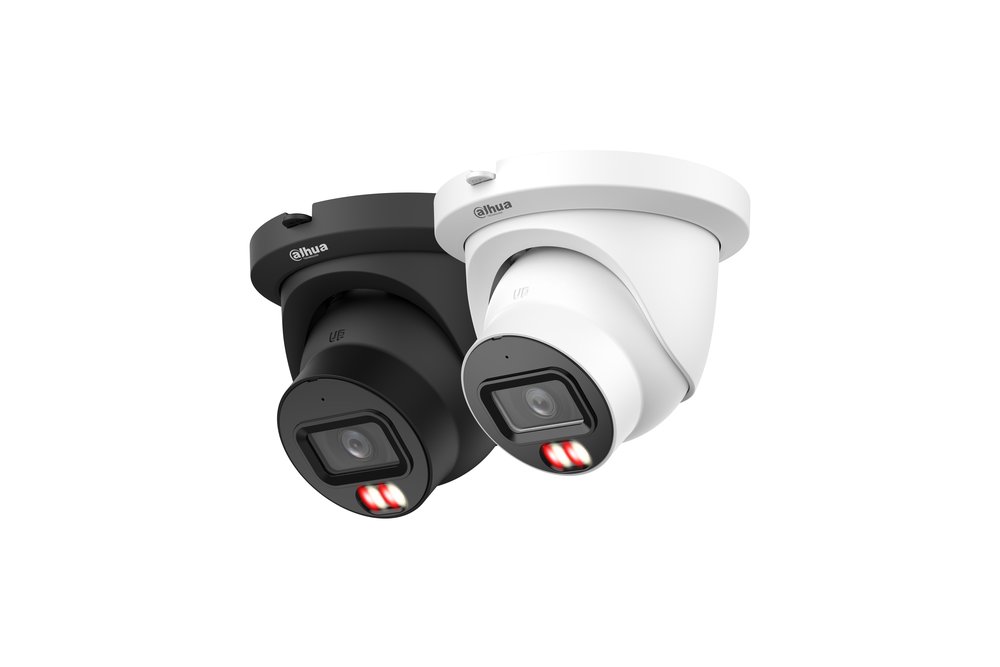

Eyeball IP AI Smart Dual Light 5 MP 2.8 mm IR/LED mic

Name: Eyeball IP AI Smart Dual Light 5 MP 2.8 mm IR/LED mic
Brand: Dahua
SKU: IPC-HDW5559TM-ASE-IL
Price: 289.14 EUR
Availability: BackOrder

Dahua

COD: IPC-HDW5559TM-ASE-IL Categorie: Telecamere IP, Videosorveglianza Tag: 5MP

289,14 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 578,28 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball IP AI Xinghan WizMind Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps, AI Coding, H.265+, ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.0009 lux ƒ1.6 (0 con IR On), portata IR/warm light fino a 50 m, 1 porta RJ-45 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono integrato, privacy mask 4 mosaici o 8 blocchi colorati, 3D NR, WDR 120 dB, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection, people counting, heat map, metadati video, slot micro SD card (max. 1 TB), alimentazione 12 Vdc/PoE+/ePoE <15.6 W

Camera
Image Sensor	1/2.7" CMOS
Max. Resolution	2960 (H) × 1668 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0009 lux@F1.6 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB Up to 50 m (164.04 ft) (IR)
Illumination Distance	Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	2 (Multi-core (IR + warm) light) Pan: 0°–360°
Angle Adjustment	Tilt: 0°–80° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.6 2.8 mm: H: 108.4°; V: 60°; D: 127.1°
Field of View	3.6 mm: H: 90.3°; V: 47.8°; D: 108.6° 6 mm: H: 56°; V: 30.3°; D: 65.4°
Iris Control	Fixed 2.8 mm: 1 m (3.28 ft)
Close Focus Distance	3.6 mm: 1.5 m (4.92 ft) 6 mm: 3.2 m (10.50 ft)
Dori
Distance	( 406.82 ft) ( 162.73 ft) ( 81.36 ft) ( 40.68 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend
IVS (Perimeter Protection)	alarm. Supports self-learning, it filters out false alarms.
SMD	SMD 4.0 Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people,
AcuPick	animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6
Face Detection	attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting
People Counting	report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle
Video Metadata	attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream) AI H.265; AI H.264
AI Coding	*Includes smart codec technology, Smart H.265+ and Smart H.264+. Main stream: 2960×1668@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps)
Video Frame Rate	Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	4 streams 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 ×
Resolution	1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR H.264: 3 kbps–16384 kbps
Video Bit Rate	H.265: 3 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog
Image Rotation	1520) resolution and lower)
Mirror	Yes
Privacy Masking	4 mosaics or 8 color blocks
LDC	Yes
Audio
Built-in MIC	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network Port	RJ-45 (10/100 Enhancement Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 80 M)
Storage
Browser	Chrome: Chrome 102 and later Firefox: Firefox 88 and later
Management Software	DSS; DMSS; DoLynk Care
Mobile Client	iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509
Security	certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Sound Warning	Sound: 0–100 Play times can be set from 1 to 10.
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output	1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply	12 VDC (±30%); PoE+ (802.3at); ePoE When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 4.2 W (12 VDC); 6.3 W (PoE)
Power Consumption	Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE)
ePoE	Yes
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Structure
Casing Material	Metal
Product Dimensions	105.5 mm × Φ122.0 mm (4.15" × Φ4.80")
Net Weight	530 g (1.17 lb)
Gross Weight	710 g (1.57 lb)
Ordering Information
Type	Model Description 5MP Smart Dual DH-IPC-HDW5559TM-ASE-
IP CAMERA	Light Fixed-focal Eyeball IL WizMind Network Camera
Type	Model Description DH-PFB220C Ceiling Mount Bracket DH-PFA109 Mount Adapter DH-PFB305W Wall Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFA156 Pole Mount Bracket
Accessories (Optional)	DH-PFB2203W Wall Mount Bracket G3416GW G3/4" Water Joint DH-PFA130-E Water-proof Junction Box DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card
Accessories
DH-PFA109	DH-PFA130-E DH-PFA150
Mount Adapter	Water-proof Junction Box Pole Mount Bracket
DH-PFA151	DH-PFA156 DH-PFB2203W
Corner Mount Bracket	Pole Mount Bracket Wall Mount Bracket
DH-PFB220C	DH-PFB305W DH-PFM320D-EN
Ceiling Mount Bracket	Wall Mount Bracket DC12V2A power adapter
DHI-TF-P100/1TB	G3416GW PFM900-E
MicroSD Card	G3/4" Water Joint Integrated Mount Tester 2025 Dahua. All rights reserved. Design and speciﬁcatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail.
