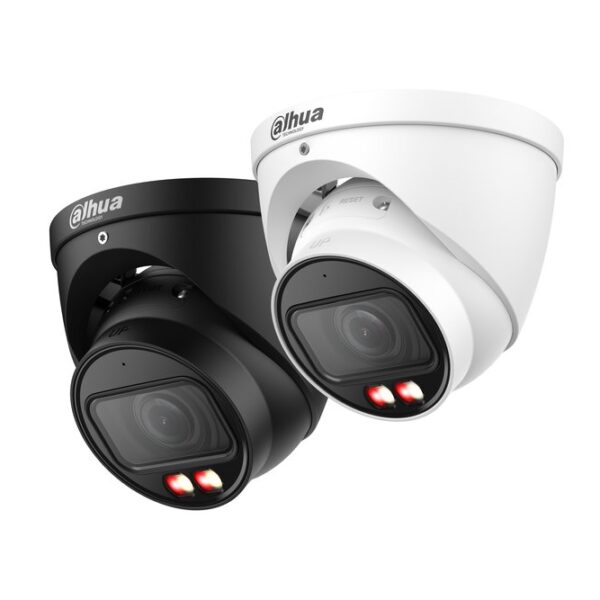

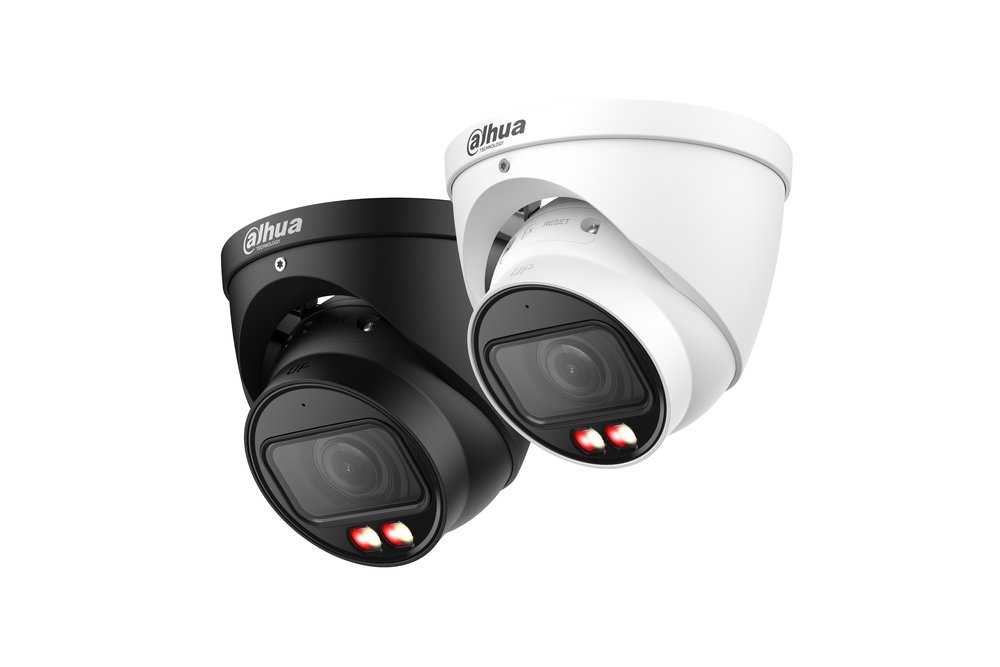

Telecamera eyeball IP AI Xinghan WizMind Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, AI Coding, H.265+, ICR, ottica motorizzata 2.7~12 mm ƒ1.8, luminosità 0.0008 lux ƒ1.8 (0 con IR On), portata IR/warm light fino a 50/40 m, 1 porta RJ-45 10/100 Mbps, microfono integrato, privacy mask 4 mosaici o 8 blocchi colorati, 3D NR, WDR 120 dB, EPTZ, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection, people counting, heat map, metadati video, slot micro SD card (max. 1 TB), alimentazione 12 Vdc/PoE+/ePoE <15.9 W
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0008 lux@F1.8 (Color, 30 IRE) |
| Min. Illumination | 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 50 m (164.04 ft) (IR) |
| Illumination Distance | Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Multi-core (IR + warm) light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Aperture | F1.8 |
| Field of View | H: 113°–47°; V: 60°–23°; D: 133°–53° |
| Iris Control | Auto |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| EPTZ | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people |
| IVS (Perimeter Protection) | gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 |
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting |
| People Counting | report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle |
| Video Metadata | attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+. Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 4 streams 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 3 kbps–16384 kbps; |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| Image Rotation | 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome: Chrome 102 and later; Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 5.9 W (12 VDC); 6.6 W (PoE) |
| Power Consumption | Max. (Focus + WDR+ warm light + intelligence on): 15.2 W (12 VDC); 15.9 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 0.70 kg (1.54 lb) |
| Gross Weight | 0.96 kg (2.12 lb) |
| Ordering Information | |
| Type | Model Description 8MP Smart Dual Light |
| IP CAMERA | Vari-focal Eyeball WizMind DH-IPC-HDW5859T-ZE-IL Network Camera DH-PFA117 Ceiling Mount Bracket DH-PFB220C Ceiling Mount Bracket DH-PFA106 Mount Adapter DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket |
| Accessories (Optional) | DH-PFA152-E Pole Mount Bracket DH-PFB2203W Wall Mount Bracket DH-PFA137 Junction Box DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card |
| Accessories | |
| DH-PFA106 | DH-PFA117 DH-PFA137 |
| Mount Adapter | Ceiling Mount Bracket Junction Box |
| DH-PFA150 | DH-PFA151 DH-PFA152-E |
| Pole Mount Bracket | Corner Mount Bracket Pole Mount Bracket |
| DH-PFB2203W | DH-PFB220C DH-PFB305W |
| Wall Mount Bracket | Ceiling Mount Bracket Wall Mount Bracket |
| DH-PFM320D-EN | PFM900-E DHI-TF-P100/1TB |
| DC12V2A power adapter | Integrated Mount Tester MicroSD Card 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
