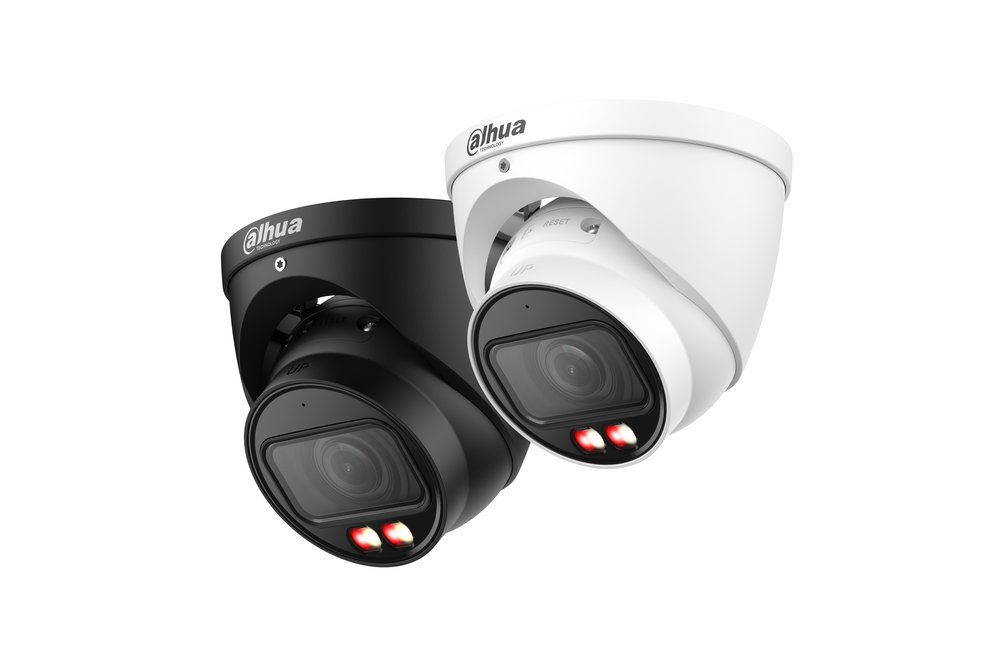

Eyeball IP AI Smart Dual Light 4 MP 2.7~13.5 mm IR/LED mic nera

Name: Eyeball IP AI Smart Dual Light 4 MP 2.7~13.5 mm IR/LED mic nera
Brand: Dahua
SKU: IPC-HDW3449T-ZS-IL-B
Price: 311.71 EUR
Availability: BackOrder

Dahua

COD: IPC-HDW3449T-ZS-IL-B Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

311,71 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 623,42 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball IP AI WizSense Smart Dual Light da interno/esterno IP67 nera, sensore CMOS progressivo 1/2.9", risoluzione 4 MP a 25fps, AI coding, H.265+, ICR, ottica motorizzata 2.7~13.5 mm F1.4, luminosità 0.005 lux ƒ1.4, portata IR/warm light fino a 50/40 m, microfono integrato, 1 porta LAN 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), AI SSA, privacy mask 8 aree, 3D NR, WDR 120 dB, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc/PoE <10.3 W

Camera
Image Sensor	1/2.9" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	256 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE)
Min. Illumination	0.0005 lux@F1.4 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio	56 dB > Up to 50 m (164.04 ft) (IR)
Illumination Distance	Up to 50 m (164.04 ft) (Warm light)
Illuminator On/Off Control	Auto; Manual
Illuminator Number	2 (Multi-core (IR + warm) light)
Angle Adjustment	Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm-13.5 mm
Max. Aperture	F1.4
Field of View	H: 104°–29°; V: 54°–16°; D: 125°–34°
Iris Control	Fixed
Close Focus Distance	0.1 m (0.33 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Intelligence
IVS (Perimeter Protection)	classification and accurate detection of vehicle and human), stay detection, loitering detection. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot
Face Detection(Full Image)	set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
SMD	SMD 4.0 Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and
AcuPick	motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA	of the image to suit the conditions Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Video
Video Compression	by the sub stream) AI H.265; AI H.264
AI Coding	*includes SmartCodec Technology, Smart H.264+ /H.265+ Main stream: 2688 × 1520@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1 fps–25/30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps)
Video Frame Rate	*The values abosve are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR;ABR H.264: 3 kbps–16384 kbps
Video Bit Rate	H.265: 3 kbps–16384 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Image Stabilization	Electronic Image Stabilization (EIS)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog
AFSA	Yes 0°/90°/180°/270° (support 90°/270° with 2688 × 1520
Image Rotation	resoluton and lower)
Mirror	Yes
Privacy Masking	8 areas
Audio
Built-in Mic	Yes, built-in Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Network Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 64 M)
Storage
Browser	Chrome Firefox
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	IOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification;
Security	Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Power
Power Supply	12 VDC/PoE (802.3af) When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 3.7 W (12 VDC); 4.7 W (PoE)
Power Consumption	Max. (H.265 + WDR + warm light + intelligence on): 8.7 W (12 VDC); 10.3 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Structure
Casing	Metal
Product Dimensions	108.3 mm × Φ122.0 mm (4.26" × Φ4.80")
Net Weight	690 g (1.52 lb)
Gross Weight	920g (2.0 lb)
Ordering Information
Type	Model Description 4MP Smart Dual Light Vari-focal
4MP Camera	DH-IPC-HDW3449T-ZS-IL Eyeball WizSense Network
Accessories
(Optional)	DH-PFB2203W Wall Mount Bracket DH-PFA137 Junction Box DH-PFM321-EN DC12V 1A power adapter DH-PFM321D-EN DC12V 1A power adapter DH-PFM320D-EN DC12V 2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card
Optional:
DH-PFB220C	DH- DH-PFA106 PFA117 Mount Adapter
Corner Mount Bracket	Ceiling Mount Bracket DH-PFB305W DH-PFA150
DH-PFA151	Wall Mount Bracket Pole Mount Bracket
DH-PFA152-E	DH-PFB2203W DH-PFA137 Wall Mount Bracket Water-proof Junction Box
DH-PFM321-EN	DH-PFM320D-EN DH-PFM321D-EN
DC12V 1A power adapter	DC12V 2A power adapter DC12V 1A power adapter
PFM900-E	DHI-TF-P100/512GB
Integrated Mount Tester	MicroSD Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
