Bullet IP AI 4G 4 MP 3.6 mm IR/LED audio solar

Name: Bullet IP AI 4G 4 MP 3.6 mm IR/LED audio solar
Brand: Dahua
SKU: IPC-HFW2441DG-4G-SP-B-MAX
Price: 521.55 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW2441DG-4G-SP-B-MAX Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

521,55 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.043,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

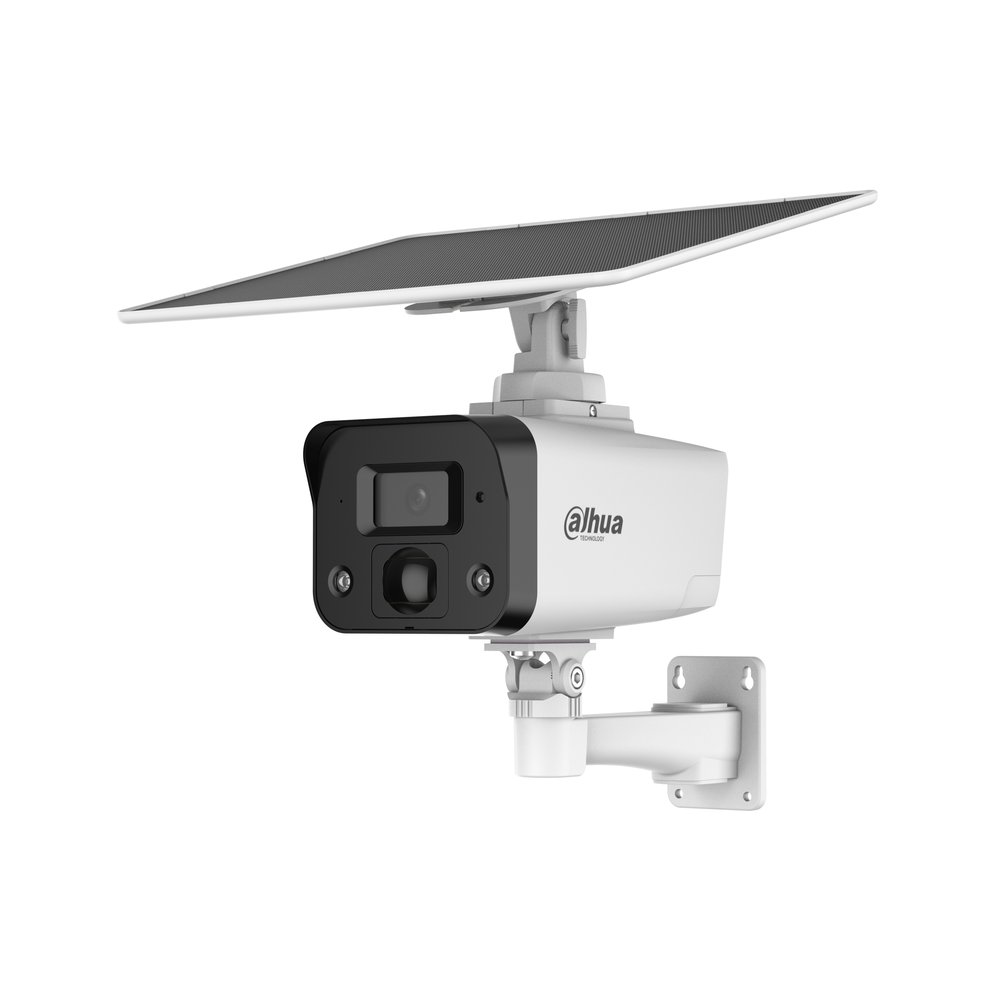

Telecamera bullet IP AI WizSense 4G Smart Dual Light e deterrenza attiva IP67 con pannello solare monocristallino integrato, sensore CMOS progressivo 1/3", risoluzione 4 MP a 25fps, H.265, ICR, ottica fissa M12 3.6 mm ƒ1.6, luminosità 0.01 lux ƒ1.6 (0 con IR On), portata IR/LED fino a 30/20 m, PIR, microfono e speaker integrati, 1 porta di rete 10/100 Mbps, 1 porta USB Type-C, privacy mask 4 aree, 3D NR, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc <1.33 W, pannello solare con batteria litio ferro fosfato

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/3" CMOS
Max. Resolution	2560 (H) × 1440 (V)
ROM	128 MB
RAM	128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.01 lux@F1.6 (Color, 30 IRE)
Min. Illumination	0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>40 dB 3.6 mm: Up to 30 m (98.43 ft) (IR)
Illumination Distance	Up to 20 m (65.62 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	1 (IR LED); 1 (Warm light) Pan: 0° to 360°
Angle Adjustment	Tilt: –60 °to 0° Rotation: 0° to 360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	3.6 mm
Max. Aperture	F1.6
Field of View	3.6 mm: H: 78.4°; V: 42.4°; D: 92.4°
Iris Control	Fixed
Close Focus Distance	3.6 mm: 1.5 m (4.92 ft) Recogniz
Lens
DORI Distance	a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
Intelligence Notes	SMD
Video
Video Compression	H.265 Main stream: 2560 × 1440@(1–15 fps) sub stream: 640 × 360@(1–15 fps)
Video Frame Rate	*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	2 streams 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Bit Rate	H.265: 32 kbps–4096 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Smart Dual Light	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes, built-in Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a
Alarm
Alarm Event	low battery alarm
Network
Network Port	RJ-45 (10/100 Base-T) FDD-LTE: B1/B3/B5/B7/B8/B20/B28; Applicable regions: Europe, Middle East, Africa Power class 3: 23dBm ±2.7dB
Carrier Network System	FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; Applicable regions: Latin America Power class 3: 23dBm ±2.7dB
SDK and API	Yes
Interoperability	P2P
Storage
Management Software	DMSS; DSS Pro
Mobile Client	iOS;Android
Port
USB	1 Type-C Port
Power
Power Supply	12 VDC
Power Consumption	AOV mode: 0.26 W; Performance mode: 1.33 W
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Structure
Casing Material	Plastic 256 mm × 290 mm × 197 mm (10.08" × 11.42" × 7.76")
Product Dimensions	(L × W × H)
Net Weight	1357 g (2.99 lb)
Gross Weight	2869 g (6.33 lb)
Battery
Operating Temperature	Discharging: –40 °C to +60 °C (–40 °F to +140 °F)
Net Weight	550 g (1.21 lb)
Battery Type	Lithium iron phosphate
Battery Capacity	64Wh
Battery Voltage	6.4 V Ultra power saving mode (no-trigger recording): 76 days Power saving mode (30 daily alarms of under 15s each):
Cycle Lifetime	56days AOV mode (30 daily alarms of under 15s each): 10 days Performance mode (continuous recording): 2 days
Battery Life	More than 1,000 cycles
Solar Module
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F) 285 mm × 235 mm × 2.5 mm (11.22" × 9.25" × 0.1") (L ×
Product Dimensions	W × H)
Max. Power	10.5 W
Cell Type	Monocrystalline silicon
Ordering Information
Type	Model Description 4MP Smart Dual Light DH-IPC-HFW2441DG-4G-
IP CAMERA	Fixed-focal Bullet 4G Solar SP-B-MAX Power Network Camera DH-PFA162 Universal Joint DH-PFA150 Pole Mount Bracket
Accessories (Optional)	G3416GW G3/4" Water Joint DH-PFA152-E Pole Mount Bracket DH-PFA121 Water-proof Junction Box
Type	Model Description DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card
Optional:
DH-PFA121	DH-PFA150 DH-PFA152-E
Water-proof Junction Box	Pole Mount Bracket Pole Mount Bracket
DH-PFA162	DH-PFM320D-EN DHI-TF-P100/512GB
Universal Joint	DC12V2A power adapter MicroSD Card
G3416GW	PFM900-E
G3/4" Water Joint	Integrated Mount Tester
