PTZ HDCVI 2 MP zoom 16x
495,32 € IVA inclusa
Speed dome HDCVI Starlight da interno/esterno IP66 antivandalo IK10, sensore CMOS Starvis progressivo 1/2.8", risoluzione 2 MP a 25fps, rotazione PAN 360° endless / TILT 0°~90°, auto flip 180°, zoom ottico 16x (5~80 mm F1.6~2.8) / 16x digitale, luminosità 0.005 lux F1.6, CVBS/CVI su porta BNC, 2 ingressi e 1 uscita allarme, 1 ingresso audio, 1 porta RS485, protocolli Pelco P/D e Dahua, 300 preset, 5 scan, 8 tour e 5 pattern, 2/3D NR, WDR 120 dB, privacy mask, alimentazione 12 Vdc <12 W, alimentatore incluso
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressive 0.005 lux@F1.6 (Color, 30 IRE); |
| Min. Illumination | 0.0005 lux@F1.6 (B/W, 30 IRE) |
| Lens | |
| Focal Length | 5 mm–80 mm |
| Max. Aperture | F1.6–F2.8 |
| Field of View | H: 59.6°–5.4°; V: 34.6°–3.0°; D: 67.3°–6.2° |
| Optical Zoom | 16x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1 m–1.5 m (3.28 ft–4.92 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 1103.4 m 435.9 m 220.7 m 110.3 m (3620.24 ft) (1429.99 ft) (724.05 ft) (362.02 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: 0° to +90°, auto flip 180° Pan: 0.1°–300°/s; |
| Manual Control Speed | Tilt: 0.1°–200°/s Pan: 0.1°–300°/s; |
| Preset Speed | Tilt: 0.1°–200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour DH-SD |
| PTZ Protocol | Pelco-P/D (Auto recognition) |
| Video | |
| Resolution | 576/704 × 480) |
| Video Frame Rate | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium |
| White Balance | lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Defog | |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥ 50 dB |
| Function | |
| CVI Product Output Mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) |
| Port | |
| Analog Output | 1 channel (CVBS/CVI output, BNC) |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; tour; pattern; preset; alarm digital output |
| Alarm Event | Alarm input |
| Power | |
| Power Supply | 12 VDC, 3 A ± 10% Basic: 8 W |
| Power Consumption | Max: 12 W (PTZ) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% IK10; TVS 6000 V lightning proof; IP66; surge |
| Protection | protection; voltage transient protection |
| Structure | |
| Product Dimensions | 154.9 mm × Φ170.4 mm (6.10" × Φ6.71") |
| Net Weight | 1.8 kg (3.97 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |
| Ordering Information | |
| Type | Model Description DH-SD42216DB-HC 2MP 16x Starlight PTZ HDCVI Camera, PAL DH-SD42216DBN-HC 2MP 16x Starlight PTZ HDCVI Camera, NTSC |
| Optional: | |
| PFA102 | PFB300C PFB302S |
| Power Adapter | Ceiling Mount Bracket Wall Mount Bracket |
| PFB300S | PFA120 PFA150 |
| Wall Mount | Junction Box Pole Mount Bracket |
| Bracket | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
Informazioni addizionali
Prodotti Correlati
Bullet HDCVI 2 MP 2.7~12 mm IR
100,04 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1200R-Z-S6
Bullet HDCVI 2 MP 3.6 mm IR
50,02 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1200T-S6

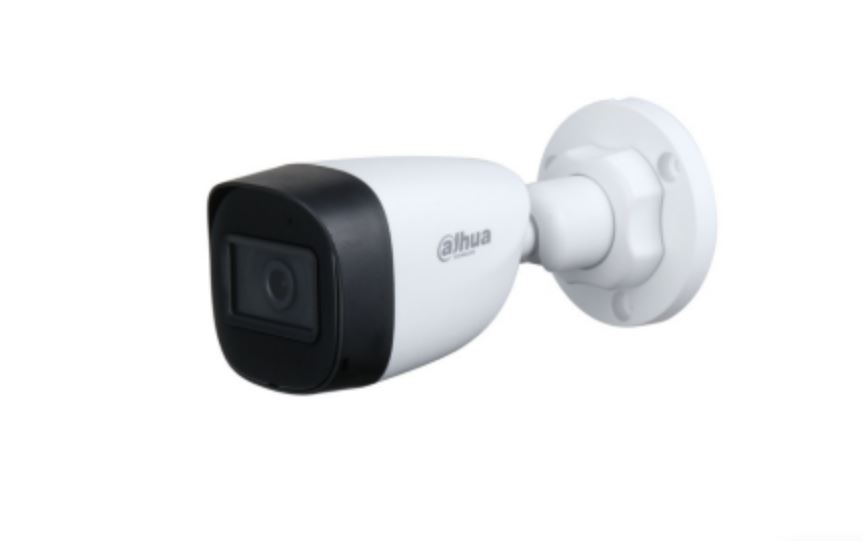

Bullet HDCVI 2 MP 3.6 mm IR
37,82 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1200C-S6
Bullet HDCVI 2 MP 3.6 mm IR mic
117,12 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW2241TU-A-S2
Bullet HDCVI 5 MP 2.7~12 mm IR mic
122,00 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1500R-Z-IRE6-S2
Bullet HDCVI 5 MP 3.6 mm IR
68,32 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1500T-S3
Bullet HDCVI 5 MP 3.6 mm IR
56,12 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1500C-S2

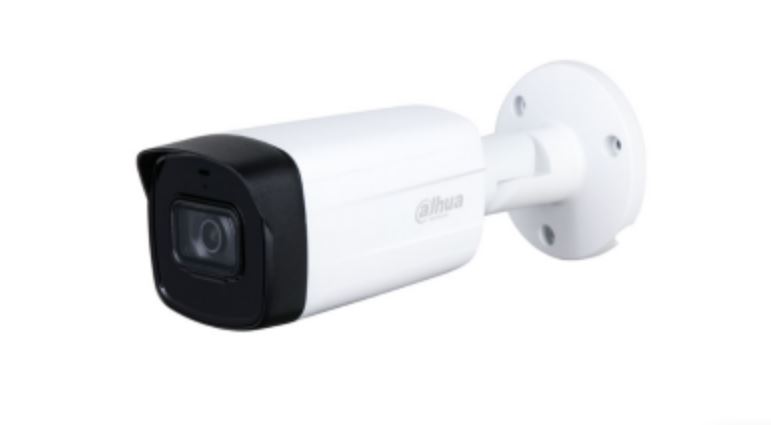

Bullet HDCVI 5 MP 3.6 mm IR
73,81 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
HAC-HFW1500TH-I8-S2

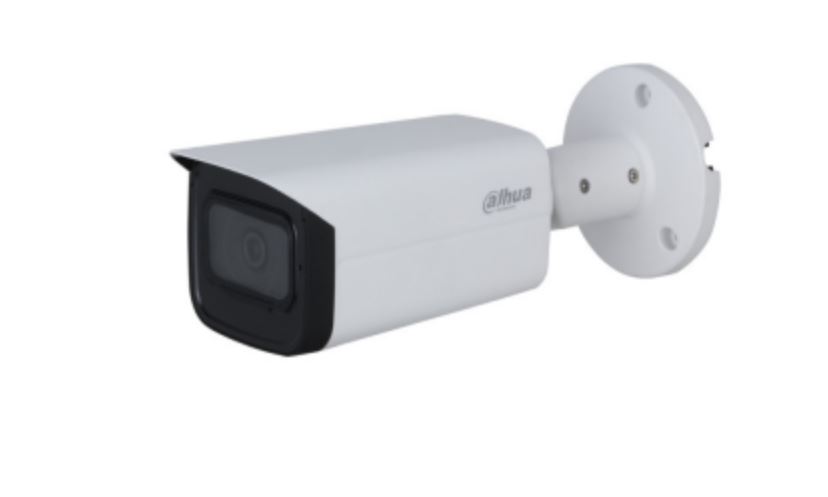

Bullet HDCVI 5 MP 3.6 mm IR mic
