PTZ IP 5G AI 8 MP zoom 40x IR
5.833,43 € IVA inclusa

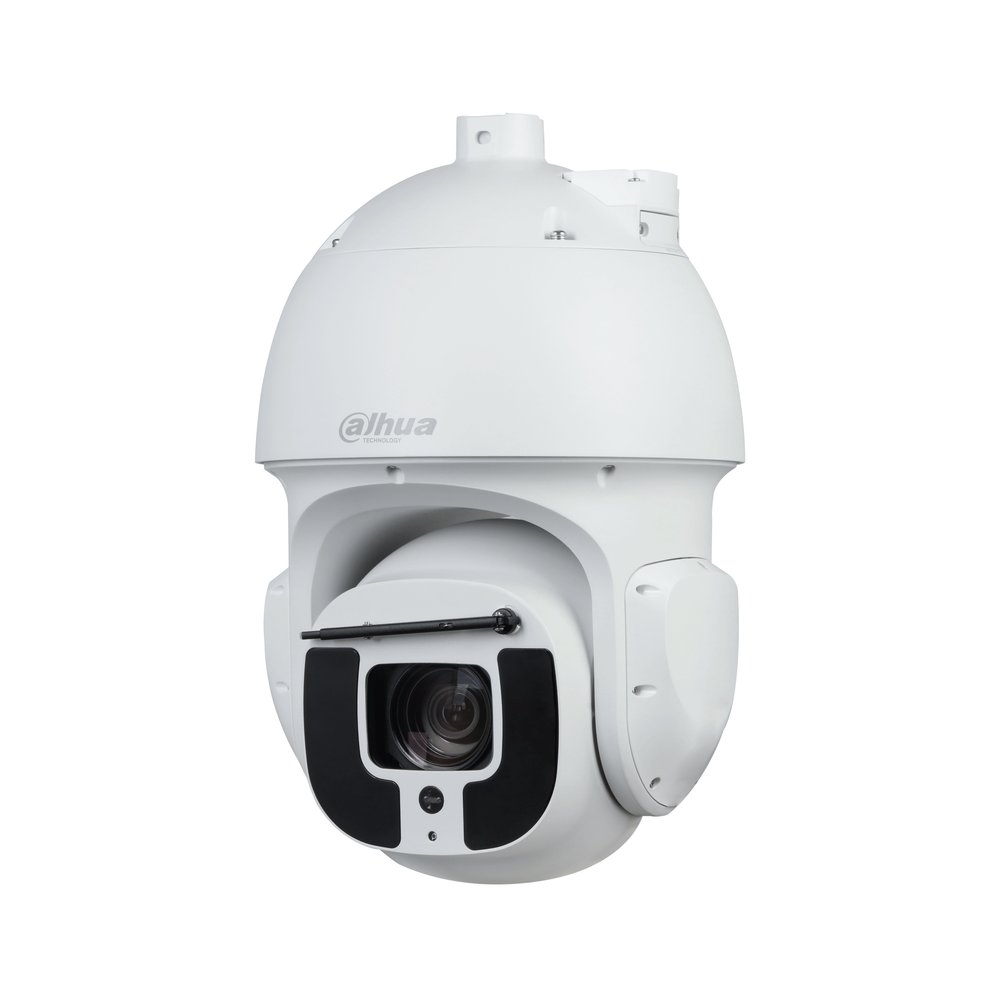

Speed dome IP AI WizMind 5G Starlight 8" da interno/esterno IP67, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 40x (5.6~233 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4 (0 con IR On), portata IR fino a 500 m, 1 porta di rete 100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 uscita BNC, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati video, face recognition, auto tracking, slot micro SD card (fino a 512 GB), tergiottica smart, alimentazione 36 Vdc <53 W, alimentatore e staffa da muro PFB306W inclusi
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| ROM | 8G |
| RAM | 2G |
| Scanning System | Progressive Color: 0.005 lux@F1.4 |
| Min. Illumination | B/W: 0.0005 lux@F1.4 0 lux (IR light on) |
| Illumination Distance | 500 m (1,640.42 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual |
| Illuminator Number | 10 (IR) |
| Lens | |
| Focal Length | 5.6 mm–223 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4° |
| Optical Zoom | 40× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto; Manual Detect Observe Recognize Identify 4,400.0 m 1,738.0 m 880.0 m 440.0 m (14,435.69 ft) (5,702.10 ft) (2,887.14 ft) (1,443.57 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –30° to +90°, auto flip 180° Pan: 0.1°/s–240°/s |
| Manual Control Speed | Tilt: 0.1°/s–75°/s |
| Preset Speed | Pan: 220°/s; Tilt: 100°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour DH-SD |
| PTZ Protocol | Pelco-P/D (Auto recognition) |
| Intelligence | |
| Video Metadata | and annual inspection sticker. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella. Face attributes: Gender, age, facial expressions, glasses, face mask, and mustache. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; |
| IVS (Perimeter Protection) | parking detection; people gathering; vehicle/human alarm classification; linkage tracking Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; |
| Face Recognition | Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces. |
| Auto Tracking | Yes |
| Video | |
| Video Compression | Stream);Smart H.264+;H.264M |
| Streaming Capability | 3 streams 4K (3840 × 2160);4M (2560 × 1440); 1080p (1920 × |
| Resolution | 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Main stream: 4K/4M/1080p/960p/720p @(1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF@ (1–25/30 fps) Sub stream 2: 1080p/960p/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H.264: 512 kbps–16384 kbps |
| Video Bit Rate | H.265: 256 kbps–9984 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes Auto; indoor; outdoor; ATW; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Region of Interest (RoI) | Yes |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G7221; G726; MP2L2; G729 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| 4G | Yes |
| Carrier Network System | 4G;5G 5G NR: N1/2/3/5/7/8/25/38/40/41/48/66/77/78/79 |
| Wireless Carrier Frequency | LTE-TDD: Band 34/38/39/40/41/42/48 |
| Band | LTE-FDD: Band 1/2/3/4/5/7/19/25/30/32/66 UMTS: Band 1/2/3/4/5/8/19 5G: Power class2: 26 dBm + 2/-3 dB Power class3: 23 dBm ± 2 dB |
| Max Transmission Power | 4G: Power class2: 26 dBm + 2/-3 dB Power class3: 23 dBm ± 2 dB 3G: Power class3: 24 dBm + 1/-3 dB TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; |
| Network Protocol | IGMP; HTTP; DHCP; SMTP; SNMPv1/v2c/v3 (MIB-2); Qos; RTSP; ARP |
| Interoperability | ONVIF (ProfileS&G&T); CGI; Dahua SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 50 and later versions iOS 10 and later versions |
| Management Software | DMSS; DSS pro |
| Mobile Client | iOS; Android |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) Capture; preset; tour; pattern; recordings; alarm |
| Alarm Linkage | digital input; send email Motion/Tampering detection; audio detection; network disconnection detection; IP conflict |
| Alarm Event | detection; memory card state detection; memory space detection |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 36 VDC/3 A±25% Basic: 22 W |
| Power Consumption | Max.: 53 W (illuminator + PTZ + pulling stream in 5G) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | ≤95% IP67, TVS 8000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Product Dimensions | 415.9 mm × Φ262.0 mm (16.37" × Φ10.32") |
| Net Weight | 8.5 kg (18.74 lb) |
| Gross Weight | 13.3 kg (29.32 lb) |
| Ordering Information | |
| Type | Model Description |
| 8M | 8MP 40x 5G Starlight WizMind Network PTZ |
| WizMind | DH-SD8A840PA-HNF-5G |
| Camera | |
| PTZ Camera | DC36V/2.23A Power Adapter PFB306W Wall Mount Bracket PFA118 Mount Adapter PFB710C Ceiling Mount Bracket |
| Included: | |
| DC36V/2.23A | PFB306W |
| Power Adapter | Wall Mount Bracket |
| Optional: | |
| PFA118 | PFB710C PFA150 |
| Mount Adapter | Ceiling Mount Pole Mount Bracket Bracket PFA120 PFB301C |
| PFB301S-E | Junction Box Ceiling Mount |
| Plane Mount Bracket | Bracket |
| Bracket | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
