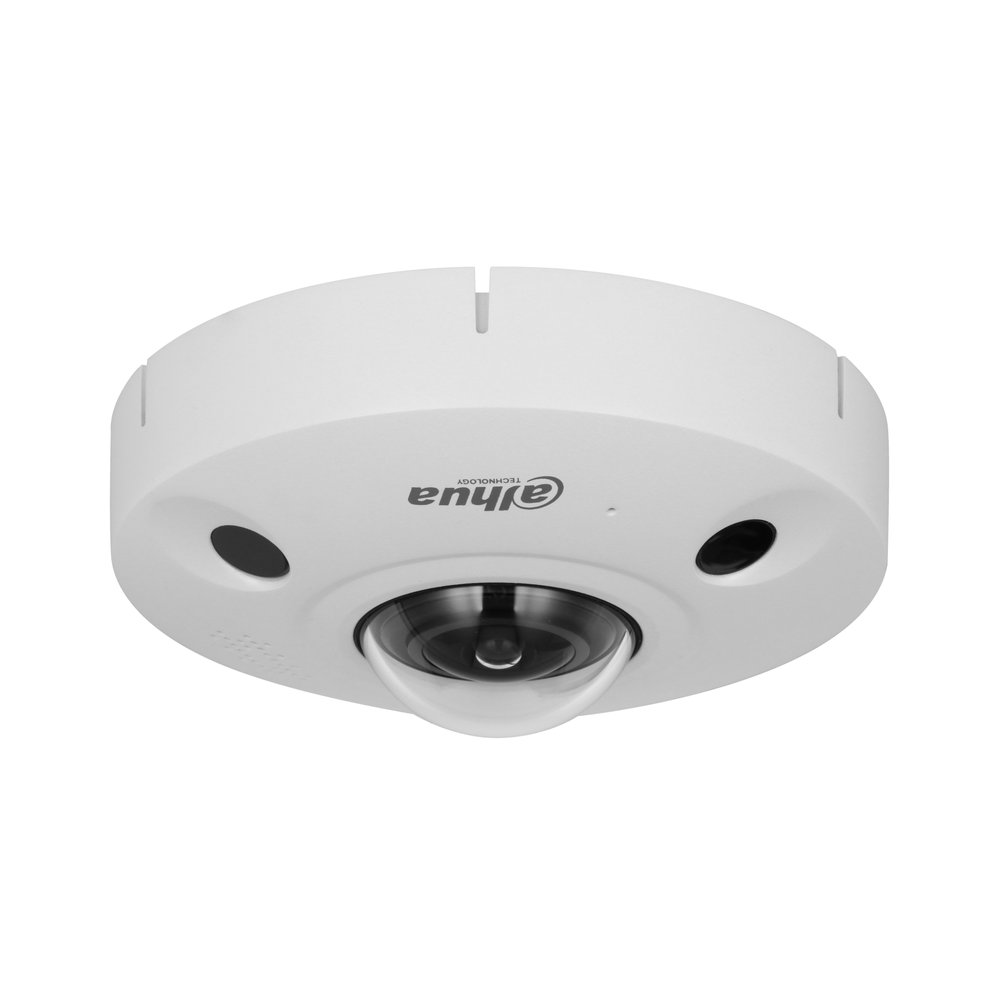

Fisheye IP AI 12 MP 1.29 mm IR mic

Name: Fisheye IP AI 12 MP 1.29 mm IR mic
Brand: Dahua
SKU: IPC-EBW81242-AS-IVC-S2
Price: 1214.51 EUR
Availability: BackOrder

Dahua

COD: IPC-EBW81242-AS-IVC-S2 Categoria: Telecamere IP speciali Tag: 12MP+

1.214,51 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 2.429,02 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera dome Fisheye IP AI WizMind da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.7", risoluzione 12 MP a 25fps, H.265+, ICR, ottica fissa M12 panomorfica 1.29 mm ƒ2.0, luminosità 0.01 lux ƒ2.0 (0 con IR On), portata IR fino a 10 m, 1 porta LAN 10/100/1000 Mbps, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, privacy mask 4 aree, 3D NR, micro SD card (256 GB), IVS (protezione perimetrale), people counting multi-area, gestione code, heat map, alimentazione 12 Vdc/PoE+ <13.9 W

Camera
Image Sensor	1/1.7" CMOS
Max. Resolution	4000 (H) × 3000 (V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.01 lux@F2.0 (Color, 30 IRE);
Min. Illumination	0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	> 56 dB
Illumination Distance	1.29 mm: Up to 10 m (32.81 ft) (IR LED)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	3 (IR LED)
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	1.29 mm
Max. Aperture	F2.2
Field of View	1.29 mm: H: 185°; V: 180°
Iris Control	Fixed
Close Focus Distance	1.29 mm: 0.2 m (0.66 ft)
Smart Event
Heat Map	Yes
Intelligence
IVS (Perimeter Protection)	detection of human) Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can
People Counting	display and export reports based on year, month, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average
People Counting	of people queuing and queue time in real time, and it will trigger alarm linkage when the number of people queued or queue time exceeds the threshold. It can display and export reports based on month, week, day or custom time. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos.
Fisheye
Installation	Ceiling mount; wall mount; ground mount
Decoding Mode	Front-dewarp;Back-dewarp Front-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+3R. 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye image view; P: Panoramic image view; R: Region image view.
Display mode	Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid).
Video
Video Compression	sub stream)
Smart Codec	Smart H.265+; Smart H.264+ Main stream: 4000 × 3000@(1–25/30 fps) sub stream: 704 × 576@(1–25/30 fps) third stream: 1280 × 960@(1–17/17 fps) Fisheye mode: 1O (4000 × 3000) 1P (4096 × 1024) 2P (2432 × 2432)
Video Frame Rate	1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	3 streams 12M (4000 × 3000); 8M (3280 × 2480); 6M (2880 ×
Resolution	2160); 3M (2048 × 1536) ; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H264: 8 kbps–16384 kbps
Video Bit Rate	H265: 3 kbps–16384 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Defog
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Built-in Speaker	Yes
Audio Compression	G.711a; G.711Mu; G.726; PCM; G.723
Alarm
Alarm Event	intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception
Network
Network Port	RJ-45 (10/100/1000 Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
Network Protocol	NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI
User/Host	20.0
Storage
Browser	Firefox: 48.0.2 Edge: 42.17134.1.0
Management Software	Smart PSS;DSS;DMSS Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509
Security	certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port) 2 channels in: supports wet contact connection (max
Alarm Input	load 5 mA 3–5 VDC); supports dry contact connection 2 channels out: dry contact, max load 1,000 mA 30
Alarm Output	VDC/500 mA 50 VAC
Power
Power Supply	12 VDC/PoE Basic: 6.5 W (12 V DC); 6.1 W (PoE)
Power Consumption	Max. (ICR + IR intensity): 13 W (12V DC); 13.9 W (PoE) Heating: 3 W (12 V DC); 3 W (PoE)
ePoE	No
Environment
Operating Temperature	–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity	≤ 95%
Storage Temperature	–30 °C to +70 °C (–22 °F to +158 °F)
Protection	IP67; IK10
Structure
Casing Material	Metal
Product Dimensions	59.8 mm × Φ149.8 mm (2.35" × Φ5.90")
Net Weight	0.79 kg (1.74 lb)
Gross Weight	1.21 kg (2.67 lb)
Ordering Information
Type	Model Description DH-IPC-EBW81242-AS-IVC- 12MP IR Fisheye WizMind
IP CAMERA	S2 Network CAMERA DH-PFB300C Ceiling Mount Bracket DH-PFA100 Mount Adapter DH-PFB302S Wall Mount Bracket G3416GW G3/4" Water Joint DH-PFA151 Corner Mount Bracket DH-PFA150 Pole Mount Bracket
Accessories (Optional)	DH-PFA152-E Pole Mount Bracket DH-PFA132-E Junction Box DH-PFM320-020EN DC12V 2A Power Adapter DH-PFM320D-EN DC12V 2A Power Adapter PFM900-E Integrated Mount Tester DHI-TF-W100-256GB MicroSD Card DHI-TF-P100/256GB MicroSD Card
Accessories
DH-PFB300C	DH-PFA100 DH-PFB302S
Ceiling Mount Bracket	Mount Adapter Wall Mount Bracket
Optional:	DH-PFA151 DH-PFA150
G3/4" Water Joint	Corner Mount Bracket Pole Mount Bracket
DH-PFA152-E	DH-PFA132-E DH-PFM320-020EN
Pole Mount Bracket	Junction Box DC12V 2A Power Adapter
DH-PFM320D-EN	PFM900-E DHI-TF-W100-256GB
DC12V 2A Power Adapter	Integrated Mount Tester MicroSD Card
MicroSD Card	Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail.
