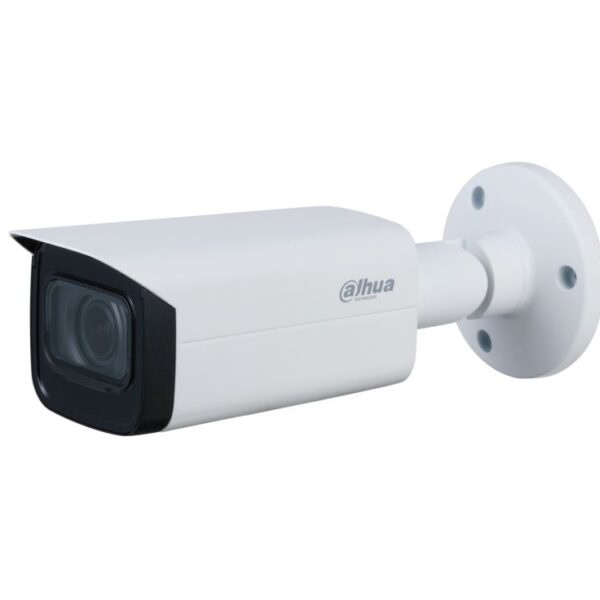

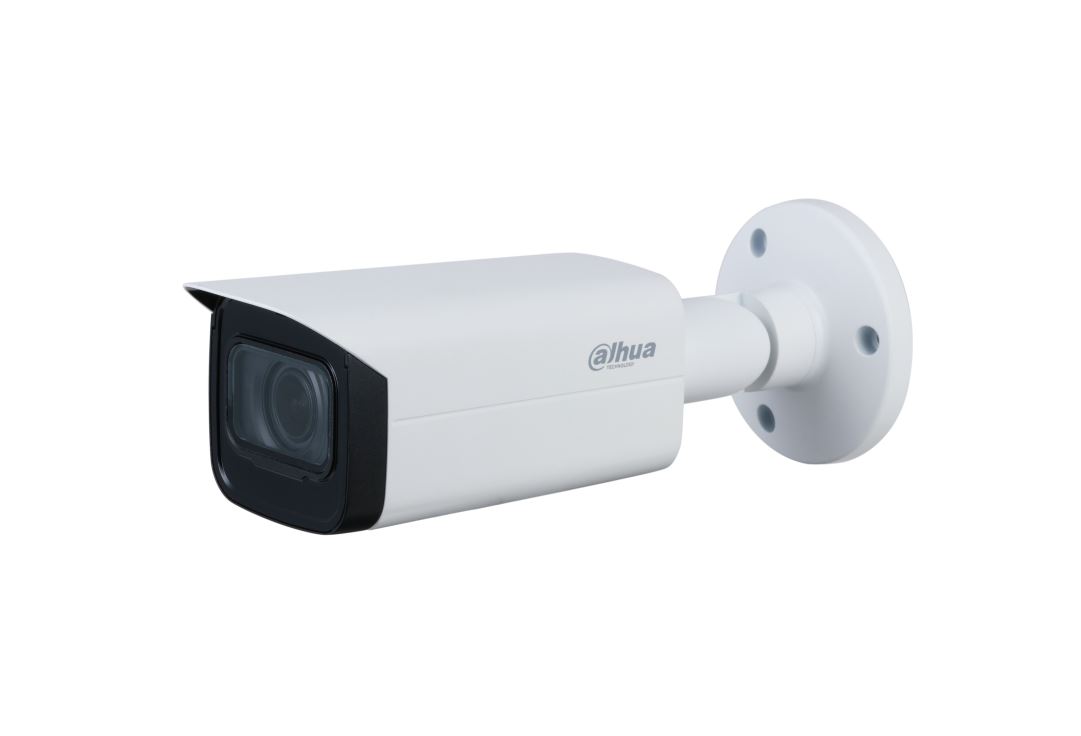

Telecamera bullet HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica motorizzata 2.7~13.5 mm, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 80 m, 2/3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su una porta BNC (DIP Switch), 1 ingresso audio con microfono integrato, OSD, alimentazione 12 Vdc <10.7 W
| Functions | |
| V4.001.0000001.0.R.200908 or later version. | Starlight |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive PAL: 1/3 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6; 30IRE; 0 Lux IR on |
| Illumination Distance | 80 m (262.5 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 4 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Auto Focus | Yes |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 Horizontal: 31.4°–113° |
| Field of View | Vertical: 17.6°–58° Diagonal: 36°–138° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Lens | |
| DORI distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Digital Zoom | 4x |
| Defog | |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Audio Interface | One channel built-in mic Video output choices of CVI/TVI/AHD/CVBS by one |
| Video Output | BNC port (DIP Switch) |
| Power | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 10.7W (12V DC, IR on) |
| Environmental | |
| Operating Temperature | (non-condensation) –30°C to +60°C (–22°F to +140°F); < 95% |
| Storage Temperature | (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing 244.1 mm × 90.4 mm × 90.4 mm |
| Camera Dimensions | (9.61" × 3.56" × 3.56") |
| Net Weight | 0.76 kg (1.7 lb) |
| Gross Weight | 1.07 kg (2.4 lb) |
| Ordering Information | |
| Type | Part Number DH-HAC- HFW2501TUP-Z-A 2.7 mm–13.5 mm |
| 5MP Camera | 5MP Starlight HDCVI IR Bullet Camera DH-HAC- HFW2501TUN-Z-A 2.7 mm–13.5 mm Junction Box PFA135 IP66 junction box PFA130-E Pole Mount Bracket PFA152-E |
| Accessories | |
| Optional: | PFA135 PFA130-E PFA152-E |
| Junction Box | IP66 junction box Pole Mount Bracket PFM904 PFM321D PFM800-4K Integrated Mount Tester 12V 1A Power Adapter |
| Passive HDCVI Balun | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
