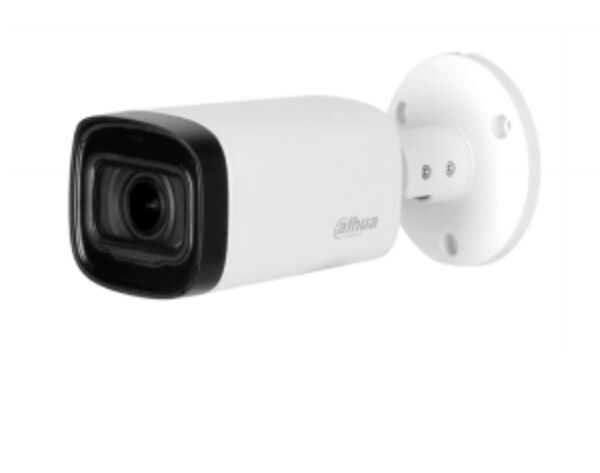

Telecamera HDCVI Bullet IR 5MP
Codice produttore: DH-HAC-HFW1500RN-Z-IRE6,DH-HAC-HFW1500RP-Z-IRE6
Datasheet
Documentazione
Manuali
Disegni
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2592 (H) × 1944 (V), 5MP |
| Scanning System | Progressive PAL: 1/25s–1/100000s |
| Electronic Shutter Speed | NTSC: 1/30s–1/100000s |
| S/N Ratio | >65dB |
| Minimum Illumination | 0.02Lux/F1.8, 30IRE, 0Lux IR on |
| Fill Light Working Distance | 60 m (196.85 ft) |
| IR On/Off Control | Auto; manual |
| IR LED Number | 4 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.8–F3.3 2.7 mm: 122° × 93° × 68° (diagonal x horizontal x |
| Angle of View | vertical) 12 mm: 37° × 30° × 22° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Auto Focus | N/A |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | 198.0 m 79.0 m 39 m 12.0 m 12mm (649.60 ft) (259.18 ft) (127.95 ft) (39.37 ft) |
| Video | |
| Frame Rate | TVI: PAL: 5M@20fps; 4M@25fps; 1080P@25fps; NTSC: 5M@20fps; 4M@30fps; 1080P@30fps CVBS: PAL: 960H; NTSC: 960H 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 |
| Resolution | ×1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 12W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) -40°C to +60°C (-40°F to 140°F);<95% (non- |
| Storage Temperature | condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | 209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56") |
| Net Weight | 570g (1.25lb) |
| Gross Weight | 740g (1.63lb) |
| Ordering Information | |
| Type | Part Number DH-HAC-HFW1500RP- 5MP HDCVI IR Bullet Camera, PAL Z-IRE6 |
| 5MP Camera | DH-HAC-HFW1500RN- 5MP HDCVI IR Bullet Camera, NTSC Z-IRE6 Junction box (For use alone) PFA130-E Pole mount (For use with PFB203W PFA152-E wall mount) UTC Controller PFM820 Passive HDCVI Balun PFM800-E |
| Optional: | |
| Junction box | UTC controller (For use with PFB203W |
| (For use alone) | wall mount) PFM800B-4K PFM800-E DH-PFM800-4K Passive Video Balun |
| Passive HDCVI Balun | Passive video balun PFM300 PFM321 PFM320D-015 12V 2A Power Adapter |
| 12V 1A Power Adapter | 12V 1.5A Power Adapter |
| Pole Mount | |
| PFA130-E | PFA130-E + PFA152-E |
