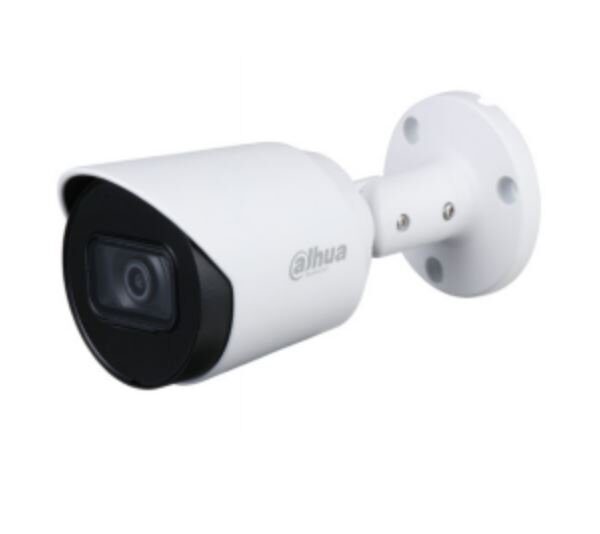

Telecamera HDCVI Bullet IR 5MP
Codice produttore: DH-HAC-HFW1500TP,DH-HAC-HFW1500TN
Datasheet
Documentazione
Manuali
Disegni
| Camera | |
| Image Sensor | 1/2.7" CMOS 2592(H)×1944(V), 5MP |
| Scanning System | Progressive PAL: 1/25~1/100000s |
| Electronic Shutter Speed | NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 1 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.85 |
| Angle of View | H: 77.5° (93°/49°) |
| Focus Control | N/A 1400mm (800mm 2800mm) / |
| Close Focus Distance | 55" (31.5''/110'') |
| Dori | |
| Detect | 3.6mm: 80m(262ft) (8px/ft) 6mm: 120m(394ft) 2.8mm: 22m(72ft) 63px/m |
| Observe | 3.6mm: 32m(105ft) (19px/ft) 6mm: 48m(157ft) 2.8mm: 11m(36ft) 125px/m |
| Recognize | 3.6mm: 16m(53ft) (38px/ft) 6mm: 24m(79ft) 2.8mm: 6m(21ft) 250ppm |
| Identify | 3.6mm: 8m(26ft) (76px/ft) 6mm: 12m(39ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
| Video | |
| Resolution | 5MP (2592×1944) |
| Frame Rate | 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P 1-channel BNC high definition video output / CVBS |
| Video Output | video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Interface | |
| Audio Interface | N/A |
| Eelectrical | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 3.7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 176mm×72.4mm×72.5mm (6.93"×2.85"×2.85") |
| Net Weight | 0.37kg (0.82lb) |
| Gross Weight | 0.48kg (1.06lb) |
| Ordering Information | |
| Type | Part Number Description DH-HAC-HFW1500TP 2.8mm DH-HAC-HFW1500TP 3.6mm 5MP HDCVI IR Bullet Camera, PAL DH-HAC-HFW1500TP 6mm |
| 5MP Camera | DH-HAC-HFW1500TN 2.8mm 5MP HDCVI IR Bullet Camera, DH-HAC-HFW1500TN 3.6mm NTSC DH-HAC-HFW1500TN 6mm Junction box (For use alone or PFA134 with PFA152-E pole mount) Pole mount (For use with PFA134 PFA150-E junction box) PFM800-E Passive HDCVI Balun PFM800-4K Passive Video Balun |
| Accessories | |
| PFA134 | PFA152-E PFM800-E |
| Junction box | Pole mount Passive HDCVI Balun |
| PFM800-4K | PFM800B-4K PFM321 |
| Passive Video Balun | Passive Video Balun 12V 1A Power Adapter PFM300 |
| PFM320D-015 | PFM820 |
| Power Adapter | 12V 2A Power Adapter UTC Controller |
