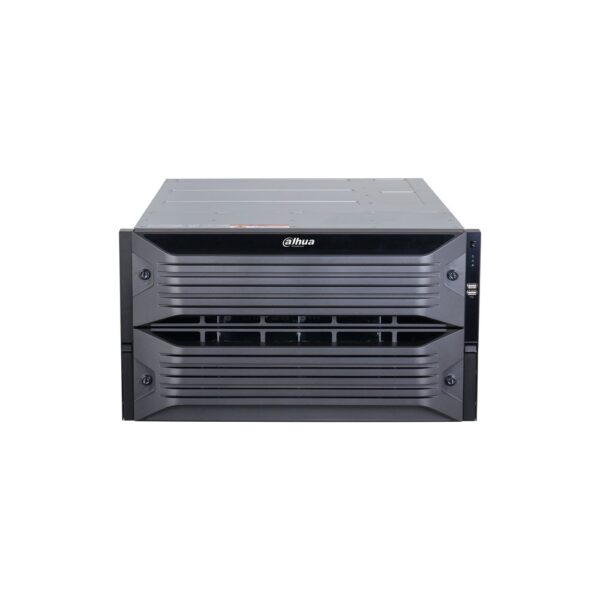

EVS IP 1024 ch 48 HDD 6U ridondante fibra ottica 10G
25.445,54 € IVA inclusa
Embedded Video Storage IP single controller, massima banda 2048 Mbps, fino a 1024 canali IP, predisposto per montaggio di 48 dischi (fino a 18 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, JBOD, 4 porte LAN 1000 Mbps + 1 1000 Mbps (gestione), estensione di rete con 4 porte fibra ottica 10 Gigabit, 1 porta eSATA, 4 porte USB (2 3.0 e 2 2.0), 1 porta RS232, 1 porta VGA (debug), 6U, alimentazione ridondante 100~240 Vac <1000 W
| System | |
| Main Processor | Dual 64-bit high-performance multi-core processor |
| Operating System | Embedded LINUX OS |
| Operating Interface | Web (PCAPP) |
| Controller | Single controller |
| Cache | 16 GB by default (extendable to 256 GB) |
| Ai Applications | |
| AI by Camera | vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Thermal | |
| People Counting | people counting and queue people counting Works with camera for manual tracking, auto tracking, |
| Bullet-PTZ Smart Track | click positioning and select positioning |
| Fisheye Dewarp | Supports dewarping for fisheye cameras |
| Cluster | |
| Cluster | N+M |
| Audio And Video | |
| Access Channel | 1024 |
| Multi-screen Display | Customized display, max 16-channel PCAPP live view |
| Third-party Camera | ONVIF; RTSP; Sony; Panasonic; Axis; Arecont; Pelco; |
| Access | Canon; Samsung |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711A; G.711U; PCM; G726 |
| Network | |
| Network Protocol | DHCP; DNS; DDNS; iSCSI; FTP; SMB; NFS; UPnP; SNMP; IPv6 |
| Interoperability | ONVIF (Profile S); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox Multiple-address mode; Load balance; Fault- |
| Network Mode | tolerance;Link aggregation |
| Recording Playback | |
| Multi-channel Playback | Web playback, max. 16-channel playback |
| Record Mode | Auto record; manual record; motion detection; IO alarm |
| Storage Method | Internal HDD Peripheral eSATA storage device; peripheral USB storage |
| Backup Method | device 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame |
| Playback Function | 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off |
| Storage | |
| Video Direct Storage | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| (Private Protocol) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps) |
| Video Direct Storage | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| (Onvif) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps) |
| Video Direct Storage (Auto | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| Register) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 400-channel (550 KB/picture) |
| Picture Direct Storage | Recording: 400-channel (550 KB/picture) Outgoing: 400-channel (550 KB/picture) |
| Disk Group | Yes |
| RAID | RAID0; RAID1; RAID5; RAID6; RAID10; RAID50; RAID60 Supports record control (continuous, event-based, |
| Record Management | scheduled, scheduled & event-based) |
| Storage Pool | Yes |
| Ipsan | |
| IPSAN Performance | 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) |
| Alarm | |
| General Alarm | Motion detect; tampering; IPC external alarm IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; |
| Anomaly Alarm | fan malfunction; no HDD; power exception; disk health exception; RAID exception; low quota space; storage pool exception; temperature alarm; share service Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking |
| Alarm Linkage | and warning light. Disarming alarm linkage action by period or one-click sync disarm configuration with channels |
| Port | |
| HDD Interface | hot swapping CMR support enterprise-grade HDD |
| eSATA | 1 port |
| RS-232 | 1 port |
| USB | 2 × USB3.0 and 2 × USB2.0 |
| VGA | 1 port, only for debug |
| Network Port | 1 × 1-GbE management port; 4 × 1-GbE LAN ports |
| Power | |
| Network Port Extension | 4×10-GbE optical fiber ports (optional) |
| General | |
| Disk Bay | 48 |
| Form Factor | 6U |
| Power Supply | 100–127 VAC/200–240 VAC, 50/60 Hz Working(all HDDs connected): ≤ 600W(2048 BTU/hr) |
| Power Consumption | Working(without HDD): ≤ 200W(682 BTU/hr) Rated: ≤ 1200W(4095 BTU/hr) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 38 kg (83.78 lb) |
| Gross Weight | 77 kg (169.76 lb) 737 mm × 483 mm (with hanger) × 262 mm (29.02" × |
| Product Dimensions | 19.02" × 10.31") (L × W × H) |
| Operating Temperature | 0 °C to 45 °C (+32 °F to +113 °F) |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Altitude | 5000 m (16404.20 ft) |
| Installation | Standard 19 inch rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN |
| Ordering Information | |
| Type | Model Description |
| Embedded | Dahua 1024CH 36-bay 4U Embedded |
| Panels | |
| 1 | 2 4 5 6 7 3 |
