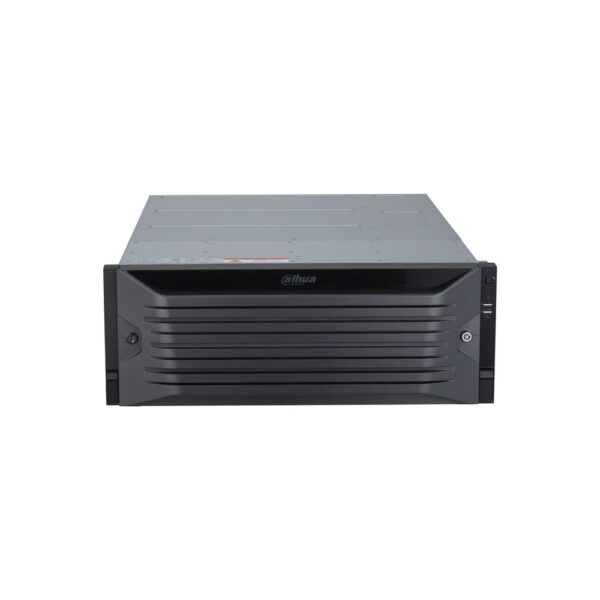

EVS IP dual controller 512 ch 24 HDD 4U ridondante
18.822,16 € IVA inclusa
Embedded Video Storage IP dual controller, massima banda 1024 Mbps, fino a 512 canali IP, predisposto per montaggio di 24 dischi (fino a 18 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, JBOD, 4 porte LAN 1000 Mbps + 1 1000 Mbps (gestione), 4 porte USB (2 2.0 e 2 3.0), 1 porta eSATA, 1 SAS, 1 porta RS232, 1 porta HDMI, 4U, alimentazione ridondante 100~240 Vac <500 W
| System | |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP) |
| Controller | Dual controllers |
| Cache | 16 GB by default (extendable to 64 GB)/controller |
| Ai Applications | |
| AI by Camera | vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Thermal | |
| People Counting | people counting and queue people counting Works with camera for manual tracking, auto tracking, |
| Bullet-PTZ Smart Track | click positioning and select positioning |
| Fisheye Dewarp | Supports dewarping for fisheye cameras |
| Audio And Video | |
| Third-party Camera | Onvif, Onvifs, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, |
| Access | Canon, Samsung, Hikvision |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711A; G.711U; PCM; G726 |
| Network | |
| Network Protocol | DHCP; DNS; DDNS; iSCSI; FTP ; SMB ; NFS |
| Interoperability | ONVIF (Profile S); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox NIC binding mode such as multiple-address mode, load |
| Network Mode | balance, fault-tolerance, link aggregation, etc |
| Recording Playback | |
| Multi-channel Playback | Web palyback, max. 16-channel playback Auto record; manual record; search video detection; IO |
| Record Mode | alarm; thermal imaging; intelligent event; all record file |
| Storage | |
| Backup | HDD, peripheral USB storage device 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame |
| Playback Function | 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off |
| Storage | |
| Video Direct Storage | Recording: 512-channel (bandwidth: 1024 Mbps) |
| (Private Protocol) | Outgoing: 512-channel (bandwidth: 1024 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 512-channel (bandwidth: 1024 Mbps) |
| Video Direct Storage | Recording: 512-channel (bandwidth: 1024 Mbps) |
| (Onvif) | Outgoing: 512-channel (bandwidth: 1024 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 512-channel (bandwidth: 1024 Mbps) |
| Video Direct Storage (Auto | Recording: 512-channel (bandwidth: 1024 Mbps) |
| Register) | Outgoing: 512-channel (bandwidth: 1024 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 512-channel (bandwidth: 1024 Mbps) |
| Video Direct Storage | Recording: 512-channel (bandwidth: 1024 Mbps) |
| (International Protocol) | Outgoing: 512-channel (bandwidth: 1024 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 250-channel (550 KB/picture) |
| Picture Direct Storage | Recording: 250-channel (550 KB/picture) Outgoing: 250-channel (550 KB/picture) |
| Disk Group | Yes |
| iSCSI | Supports client and Server |
| Network Disk | Supports client RAID 0/1/5/6/10/50/60; |
| RAID | (with enterprise-grade HDD) Supports record control (continuous, event-based, |
| Record Management | scheduled, scheduled & event-based). |
| Storage Pool | Yes |
| Ipsan | |
| IPSAN Performance | 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) |
| Alarm | |
| General Alarm | Motion detect; tampering; IPC external alarm IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; |
| Anomaly Alarm | power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking |
| Alarm Linkage | and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| HDD Interface | hot swapping CMR support enterprise-grade HDD |
| eSATA | 1 × eSATA/controller |
| SAS | 1 × SAS (up to 12 Gbps)/controller |
| RS-232 | 1 × DB9 /controller |
| USB | 2 × USB3.0 and 2 × USB2.0/controller |
| HDMI | 1 x HDMI/controller, only for debug 1 x 1-GbE management port/controller; 4 × 1-GbE LAN |
| Network Port | ports/controller |
| Power | |
| Network Port Extension | 2×10-GbE optical fiber ports/controller (optional) |
| General | |
| Power Supply | 100–127 VAC/200–240 VAC, 50/60 Hz, 5 A/2.5 A <120 W (without HDD, idling) |
| Power Consumption | <500 W (all HDDs connected) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 29 kg (63.93 lb) |
| Gross Weight | 44 kg (97.00 lb) Chassis: 446 mm × 175mm × 736.5 mm (17.56" × 6.89" × 29.00") (W × L × H) |
| Product Dimensions | Max. size: 482.6 mm (with hanger) × 175 mm × 736.5 mm (19.00" × 6.89" × 29.00") (W × L × H) Height: 4U With packaging: 687 mm × 962 mm × 526 mm (27.00" × |
| Packaging Dimensions | 37.87" × 20.70") (W × L × H) |
| Operating Temperature | 0 °C to 45 °C (+32 °F to +113 °F) |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Altitude | ≤5000 m (16404.20 ft) |
| Installation | Standard 19 inch rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN |
| Ordering Information | |
| Type | Model Description |
| 24-bay | DHI-EVS7124D-V2 24-bay Embedded Video Storage |
| EVS | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
Informazioni addizionali
Prodotti Correlati
Batteria a da 8700 mAh supplementare ISIWI ENERGY ISW-BT8700 per telecamera a batteria ISW-BFBTA4MP GEN1
26,78 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
ISW-BT8700
Batteria da 9600 mAh per telecamera Redi RECHARGE , ISW-BT9600
28,34 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
ISW-BT9600
Batteria supplementare ISIWI FILL ISW-BT5200 per telecamera a batteria FLIP
10,83 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
ISW-BT5200

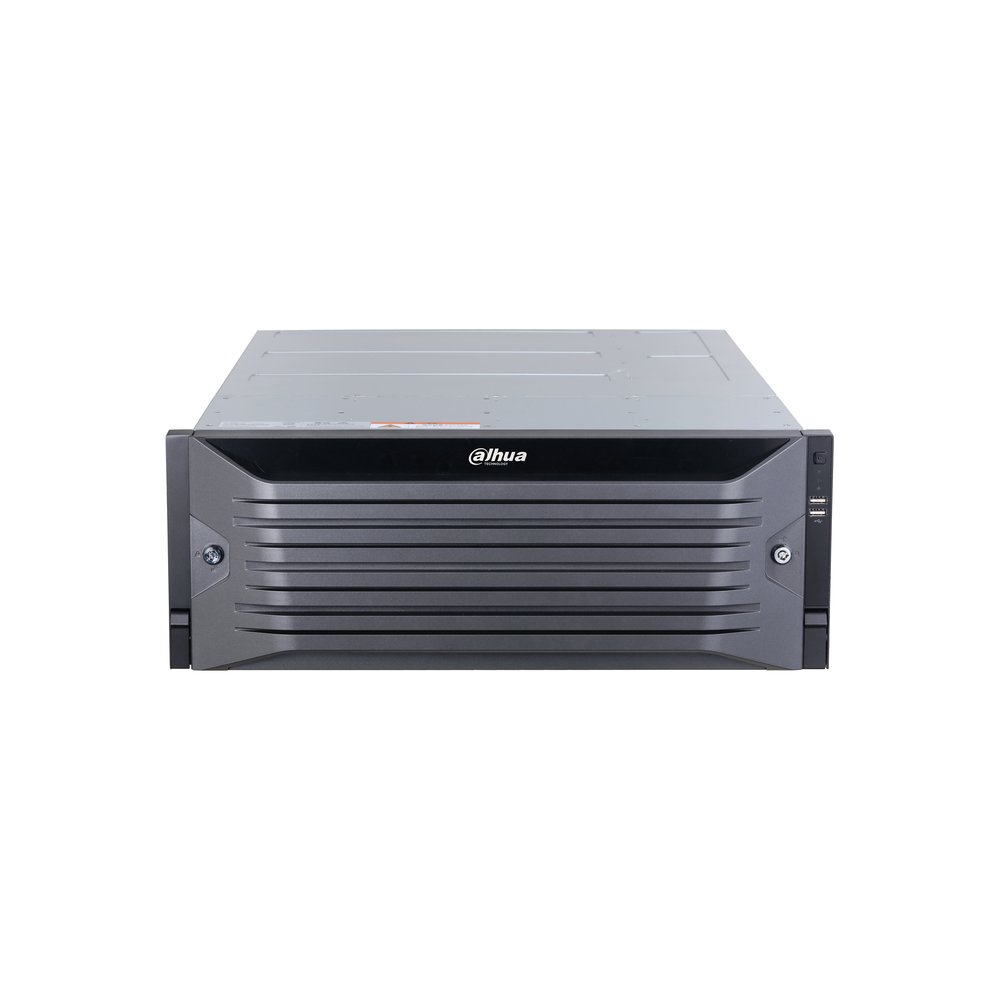

EVS IP 1024 ch 36 HDD 4U ridondante fibra ottica 10G
22.326,61 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS8236X-10G

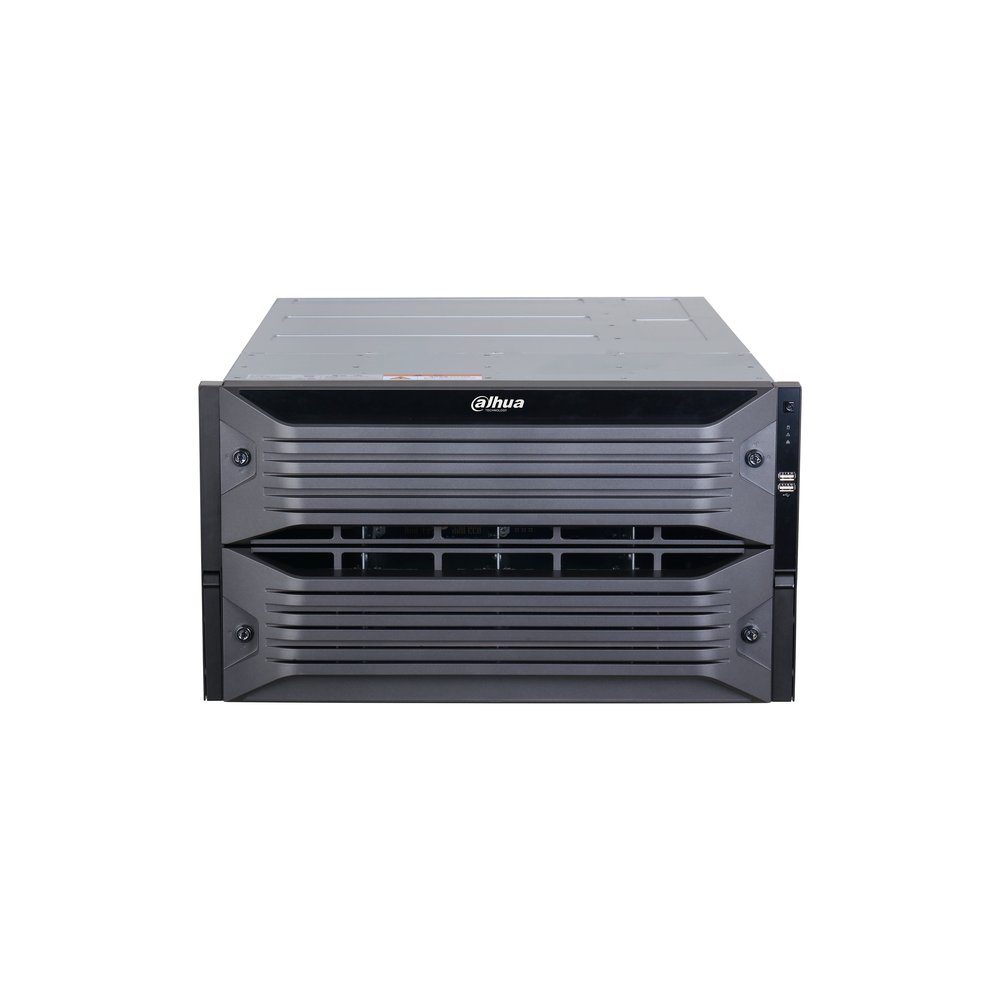

EVS IP 1024 ch 48 HDD 6U ridondante fibra ottica 10G
25.445,54 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS8248X-10G
EVS IP 512 ch 24 HDD 4U ridondante
9.636,17 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
EVS7124S

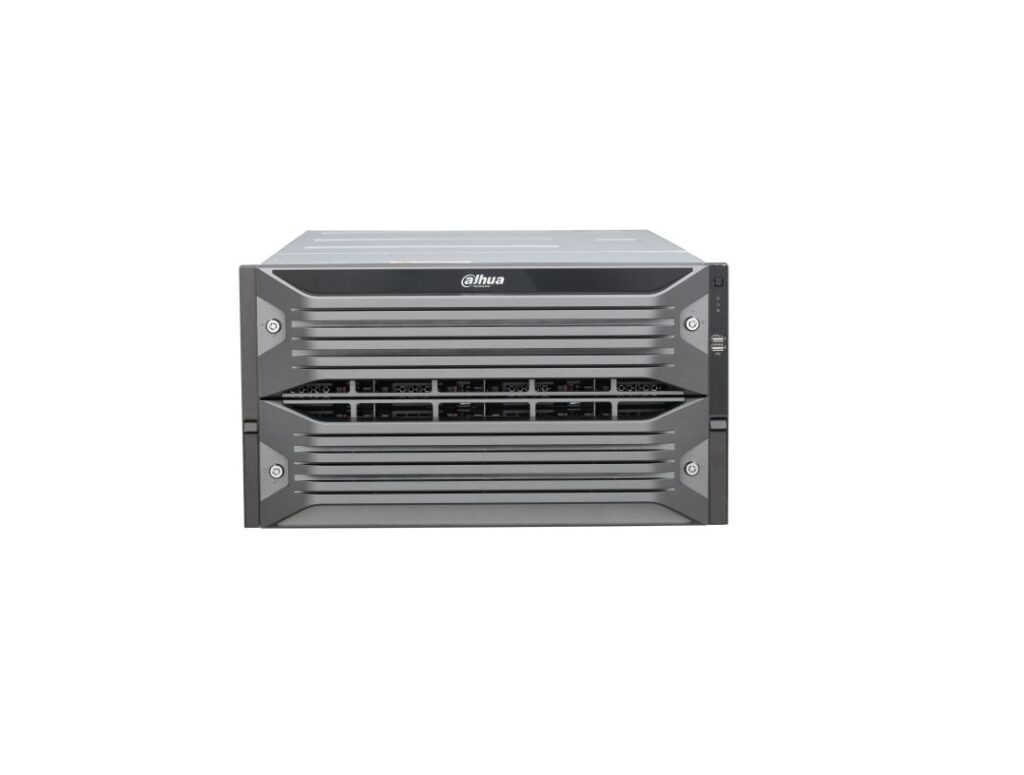

EVS IP 512 ch 48 HDD 6U ridondante
