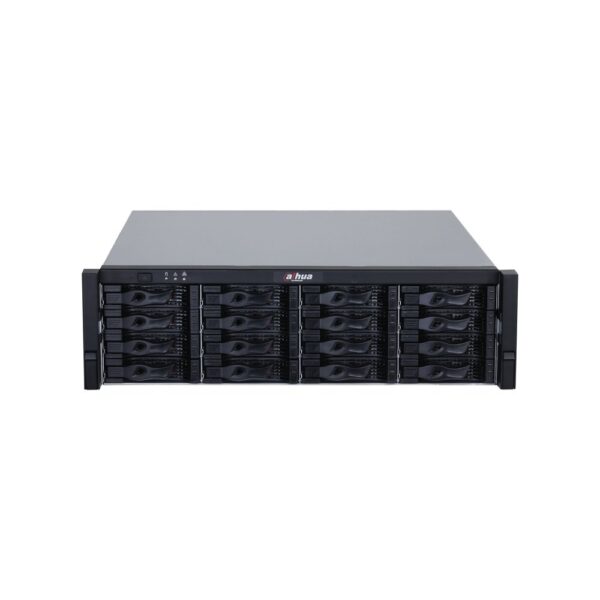

EVS IP 320 ch 16 HDD 3U

Name: EVS IP 320 ch 16 HDD 3U
Brand: Dahua
SKU: EVS5016S-V2
Price: 3937.55 EUR
Availability: BackOrder

Dahua

COD: EVS5016S-V2 Categoria: Accessori e storage videosorveglianza

3.937,55 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 7.875,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Embedded Video Storage IP single controller, massima banda 800 Mbps, fino a 320 canali IP, predisposto per montaggio di 16 dischi (fino a 18 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, 2 porte USB 3.0, 2 porte LAN 1000 Mbps, 1 porta eSATA, 1 porta RS232, 1 porta HDMI/VGA (debug), 3U, alimentazione 100~240 Vac <220 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

System
Main Processor	64-bit high-performance multi-core processor
Operating System	Embedded Linux OS Web (PCAPP)
Operating Interface	Single controller
Controller	8 GB by default (extendable to 32 GB)
Cache	Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people
AI by Camera	counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel- smoking detection) Works with camera for fire alarm, temperature alarm,
Thermal
People Counting	regional people counting and queue people counting Works with camera for manual tracking, auto tracking,
Bullet-PTZ Smart Track	click positioning and select positioning
Fisheye Dewarp	Supports dewarping for fisheye cameras
Cluster	N+M
Third-party Camera	Onvif, Onvifs, RTSP, Sony, Panasonic, Axis, Arecont,
Access	Pelco, Canon, Samsung, Hikvision
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711A; G.711U; PCM; G726
Network
Network Protocol	DHCP; DNS; DDNS; P2P; GAT1400; iSCSI; FTP ; SMB ; NFS
Mobile Phone Access	DMSS
Interoperability	ONVIF (Profile S); CGI; SDK
Browser	Chrome; PCAPP; IE9 or higher; Firefox NIC binding mode such as multiple-address mode, load
Network Mode	balance, fault-tolerance, etc
Multi-channel Playback	Max. 16-channel playback Auto record; manual record; search video detection; IO
Record Mode	alarm; thermal imaging; intelligent event; all record file
Storage Method	Internal HDD and network disk
Backup Method	HDD, peripheral USB storage device
Playback Function	2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off
Storage
Video Direct Storage	Recording: 320-channel (bandwidth: 800 Mbps)
(Private Protocol)	Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 320-channel (bandwidth: 800 Mbps)
Video Direct Storage	Recording: 320-channel (bandwidth: 800 Mbps)
(Onvif)	Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 320-channel (bandwidth: 800 Mbps)
Video Direct Storage (Auto	Recording: 320-channel (bandwidth: 800 Mbps)
Register)	Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 320-channel (bandwidth: 800 Mbps)
Video Direct Storage	Recording: 320-channel (bandwidth: 800 Mbps)
(International Protocol)	Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 120-channel (550 KB/picture) Recording: 120-channel (550 KB/picture)
Picture Direct Storage	Outgoing: 120-channel (550 KB/picture) Playback: 32-channel (550 KB/picture)
Disk Group	Yes
iSCSI	Supports client and Server
Network Disk	Supports client "RAID 0/1/5/6/10/50/60;
RAID	(with enterprise-grade HDD)" Supports record control (continuous, event-based,
Record Management	scheduled, scheduled & event-based).
Storage Pool	Yes 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 64 KB)
IPSAN Performance	400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 512 KB)
Alarm
General Alarm	Motion detect; tampering; IPC external alarm IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception;
Anomaly Alarm	power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; email, smart tracking
Alarm Linkage	and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels
Port
HDD Interface	hot swapping CMR support enterprise-grade HDD
eSATA	1 port
RS-232	1 port, for debug or COM data transmission
USB	2 ports. 2 USB3.0 ports at the rear panel
HDMI	1 port, only for debug
VGA	1 port, only for debug 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports.
Network Port	(gigabit electrica port)
Power
Network Port Extension	2 × 10-GbE optical fiber ports (optional)
General
Power Supply	100-240 VAC 50-60 Hz, 6.3A-3.5A <60 W (without HDD, idling)
Power Consumption	<220 W (all HDDs connected)
Fan	Intelligent speed regulation fan
Net Weight	15.5 kg (34.17 lb)
Gross Weight	17.2 kg (37.92 lb) Chassis: 484.6 mm × 133.2 mm × 473.6 mm (19.08" ×
Product Dimensions	5.24" × 18.65") (W × L × H) With packaging: 589mm × 619 mm × 290 mm (23.19" × 24.37" × 11.42") (W × L × H)
Packaging Dimensions	Protection box: 605 mm × 635 mm × 312 mm (23.82" × 25.00" × 12.28"") (W × L × H)
Operating Temperature	0 °C to 45 °C (+32 °F to +113 °F)
Operating Humidity	10%–80% (RH), non-condensing
Operating Altitude	5000 m (16404.20 ft)
Installation	Standard 19 inch rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
Ordering Information
Type	Model Description
16-bay EVS	DHI-EVS5016S-V2 16-bay Embedded Video Storage The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Panels
1	2 3 4 5 6 7 8 9 1 2 Power Input Ground 3 4 RS-232 Port Operation Indicator Light 5 6 eSATA Port Network Ports 7 8 HDMI Port USB Ports 9 10 VGA Port Power Switch
