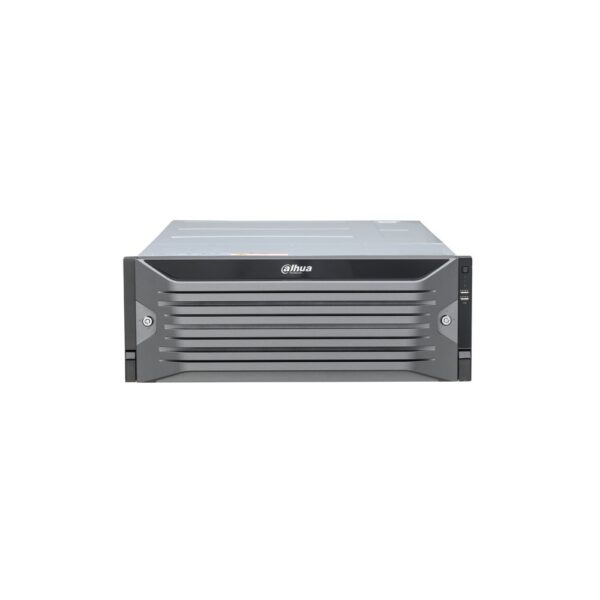

EVS IP 512 ch 24 HDD 4U ridondante fibra ottica 10G

Name: EVS IP 512 ch 24 HDD 4U ridondante fibra ottica 10G
Brand: Dahua
SKU: EVS7124S-10G
Price: 11299.64 EUR
Availability: BackOrder

Dahua

COD: EVS7124S-10G Categoria: Accessori e storage videosorveglianza

11.299,64 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 22.599,28 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Embedded Video Storage IP single controller, massima banda 1024 Mbps, fino a 512 canali IP, predisposto per montaggio di 24 dischi (fino a 16 TB cad.), Hot-Swap, RAID 0/1/5/6/10/50/60, JBOD, 4 porte LAN 1000 Mbps + 1 1000 Mbps (gestione), estensione di rete con 2 porte fibra ottica 10 GB, 1 porta eSATA, 2 mini SAS, 1 porta RS232, 1 porta HDMI, 4U, alimentazione ridondante 100~240 Vac <500 W

System
Main Processor	64-bit multi-core processor
Operating System	Embedded Linux
Operation Interface	Web
Controller	Single controller
RAM	8 GB by default (extendable to 64 GB)
Power Redundancy	1+1
External Ports
SAS	12Gb/s
Network
Network Extension	ports are optional
eSATA	1 × eSATA
RS-232	1 × DB9
HDMI	1 × HDMI
Internal Expansion
M.2 SSD	2 × NVMe SSD ports
PCI-E	1 × PCI-E X8; 1×PCI-E X4
Disk	1 × 2.5 inch SATA
Disk
Disk Bay	24 1TB; 2TB; 3TB; 4TB; 6TB; 8TB; 10TB; 12TB; 14TB; 16TB; 18TB; 20TB
Disk Type	2.5-inch and 3.5-inch HDD Support simultaneously connecting to SATA/SAS
Disk Installation	Independent disk tray
Hot Swapping	Support
RAID Type	RAID0, 1, 5, 6, 10, 50, 60, JBOD, Hot-Spare
Disk Processing	Dad sector mapping
Disk Management	Non-working disks automatic sleep
Disk Inspection	Inspection before use and during use
Performance
Video Direct Storage (Private	and forwarding; 32-channel (64 Mbps) online
Protocol)	playback Up to 512-channel (1024 Mbps) access, storage,
Video Direct Storage (ONVIF)	and forwarding; 32-channel (64 Mbps) online playback Up to 512-channel (1024 Mbps) access, storage,
Video Direct Storage (Auto	and forwarding; 32-channel (64 Mbps) online
Register)	playback Up to 512-channel access, storage, and
Picture Direct Storage	forwarding (250 KB/Picture) 360-channel × 2 Mbps video stream writing and
IPSAN Performance	24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB)
Function
IPSAN Mode	Yes
IPSAN Function	Dynamic online extension of logic volumes
Video Storage	Direct storage RTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI;
Network Protocol	FTP; SMB; NFS
RTSP	ONVIF
Cluster	N+M
Automatic Network	Videos during network failure upload to EVS
Replenishment (ANR)	automatically afterwards Multiple-address, link aggregation,
Network Mode	fault-tolerance, load balance
Quick RAID	Yes
RAID Instant Use	Yes
RAID Rebuilding	Self-adaptive rebuilding
RAID-write Synchronization	Yes Scheduled, manual, motion-triggered and alarm
Record Mode	triggered Web playback, concentrated playback, slice playback, synchronous playback
Video Playback	Search video by second Adjustable playback speed Access by cameras with encoding formats of MPEG4, MJPEG, H.264, H.265, and SVAC
Video Codec	Access by multi-sensor cameras, thermal cameras, and panoramic cameras
Video Backup	Back up video through USB, network, and eSATA
General
Power Supply	100–127V/200–240 VAC, 50/60 Hz, 5A/2.5A
Fan	Dual ball-bearing fans <80 W (without HDD, idling)
Power Consumption	<500 W (all HDDs connected)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity	10%–80% (RH) (non-condensation)
Storage Temperature	–20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity	5%–90% (RH) (non-condensation)
Operating Altitude	≤ 5000 (16,404.20 ft) m CE: EN 55024; EN 55032; EN 55035; EN 50130-4;
Certifications
Chassis	Independent developed pull-out disk tray With hanger: 482.6 mm × 175 mm × 736.5 mm (19" × 6.89" × 29") (W × H × D)
Dimensions	Without hanger: 446 mm × 175 mm × 736.5 mm (17.56" × 6.89" × 29") (W × H × D)
Net Weight	29 kg (63.93 lb)
Gross Weight	44 kg (97 lb)
Installation	Standard 19 inch rack
Ordering Information
Type	Model Description
24-bay EVS	DHI-EVS7124S 24-bay Embedded Video Storage
24-bay ESS	ESS3124S-JR 24-bay Expansion Storage Cabinet
