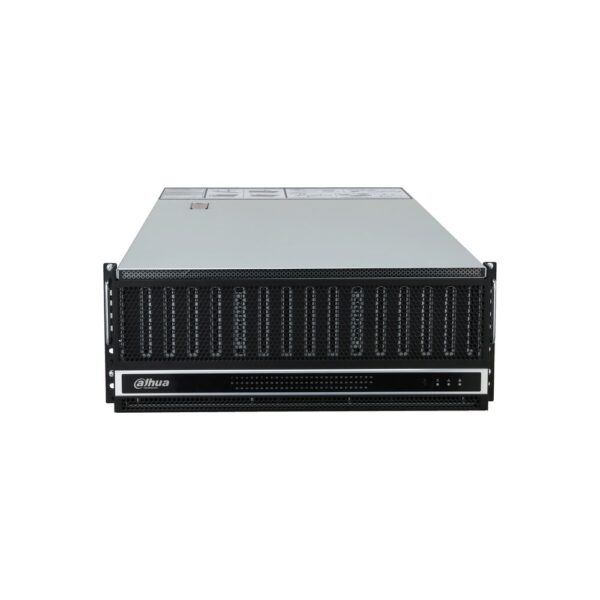

Storage video embedded a 85 alloggiamenti
Codice produttore: DHI-EVS7285S
| System | |
| Main Processor | 64-bit high-performance multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP) Single controller |
| Controller | Single controller |
| Cache | 16 GB by default (extendable to 128 GB) |
| Ai Applications | |
| AI by Camera | vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Thermal | |
| People Counting | regional people counting and queue people counting Works with camera for manual tracking, auto tracking, |
| Bullet-PTZ Smart Track | click positioning and select positioning |
| Fisheye Dewarp | Supports dewarping for fisheye cameras |
| Cluster | |
| Cluster | N+M |
| Audio And Video | |
| Third-party Camera Access | non,Samsung,Hikvision |
| Compression Standard | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264;MJPEG |
| Audio Compression | G.711a;G.711u;G.729;AAC;G.726;MP2L2;G.7221 |
| Network | |
| Network Protocol | IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;iSCSI;FTP ;SMB;NFS;GAT1400 |
| Interoperability | ONVIF (Profile S); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox Multiple-address mode;Load balance;Fault- |
| Network Mode | tolerance;Link aggregation |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback Auto record; manual record; search video detection; IO |
| Record Mode | alarm; thermal imaging; intelligent event; all record file |
| Storage Method | Internal HDD and network disk |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | play, frame by frame 2. Full-screen, backup (clip; file), snapshot, digital zoom, audio on; off |
| Storage | |
| Video Direct Storage | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| (Private Protocol) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps) |
| Video Direct Storage | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| (Onvif) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps) |
| Video Direct Storage (Auto | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| Register) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) Incoming: 1024-channel (bandwidth: 2048 Mbps) |
| Video Direct Storage | Recording: 1024-channel (bandwidth: 2048 Mbps) |
| (International Protocol) | Outgoing: 1024-channel (bandwidth: 2048 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) ） Incoming: 512-channel (550 KB/picture Recording: ） |
| Picture Direct Storage | 512-channel (550 KB/picture Outgoing: 512-channel ） (550 KB/picture |
| Disk Group | Yes |
| iSCSI | Supports client and Server |
| Network Disk | Supports client RAID0;RAID1;RAID5;RAID6;RAID10;RAID50;RAID60;JRAI |
| RAID | D Supports record control (continuous, event-based, |
| Record Management | scheduled, scheduled & event-based). |
| Storage Pool | Yes |
| Ipsan | |
| IPSAN Performance | Write-through: 900 Mbps Write-back: 1200 Mbps |
| Alarm | |
| General Alarm | Motion detect; tampering; IPC external alarm IPC offline alarm; storage error; HDD full; video frame loss; SSD exception; IP conflict; MAC conflict; login lock; fan malfunction; no HDD; network security exception; |
| Anomaly Alarm | power exception; disk health exception; RAID exception; storage pool exception; temperature alarm; share service Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; |
| Alarm Linkage | email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| Disk Interface | Max.20 TB/HDD , hot swapping, CMR, support enterprise-grade HDD |
| eSATA | 1 port |
| RS-232 | 1 port, for debug or COM data transmission |
| USB | 2 ports. 2 USB3.0 ports at the rear panel |
| Network Port | 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) |
| Power | |
| Network Port Extension | 2 × 10-GbE optical fiber ports (optional) |
| General | |
| Disk Bay | 85 |
| Form Factor | 4U |
| Power Supply | 100–127/200–240 VAC, 50/60 Hz, 16/8A |
| Power Consumption | <1600 W (include disks) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 55.2kg (121.7 lb) |
| Gross Weight | 75kg (165.3 lb) Chassis:446mm x 177mm x 932.9mm (17.56" × 6.96" × |
| Product Dimensions | 36.73") (W × H × D) With packaging:482.6mm x 177mm x 932.9mm (19" × |
| Packaging Dimensions | 6.96" × 36.73") (W × H × D) ℉ ℉ |
| Operating Temperature | 0°C to +35°C (+32 to +95 ) |
| Operating Humidity | 10%–80% (RH), non-condensing |
| Operating Altitude | ≤3000m |
| Installation | Standard 19 inch rack, with slide rail CE: CE-LVD: EN 62368-1/IEC 62368-1 CE-EMC: EN |
| Ordering Information | |
| Type | Model Description Dahua 1024CH 4U |
| Embedded Video Storage | DHI-EVS7285S Embedded Video Storage 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
