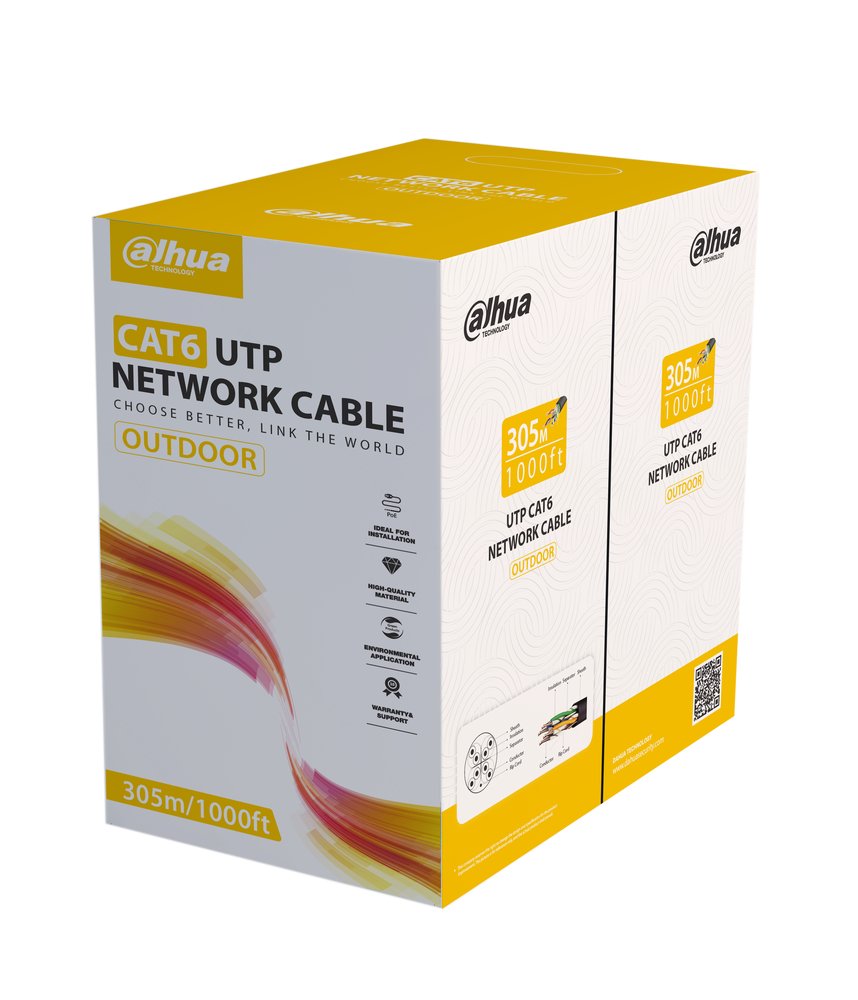

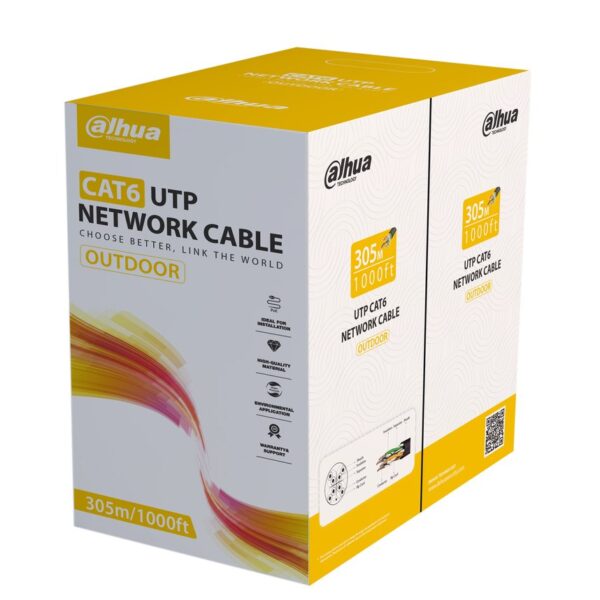

Cavo UTP CAT6 esterno 305 m PVC+MDPE rip cord nero
324,52 € IVA inclusa
Matassa cavo UTP CAT6 per utilizzo esterno, lunghezza 305 m, con rip cord, conduttori in OFC 99.97%/0.53 mm, guaina in PVC+MDPE (CPR F Class), colore nero
Datasheet
Disegni
Manuali
| Conductor | |
| Material | Oxygen free copper (99.97% purity) |
| Conductor Structure | 0.53 mm ± 0.02 mm (0.02" ± 0.0008") |
| American Wire Gauge | 24AWG |
| Insulation | |
| Insulating Material | HDPE |
| Min. Average Thickness | 0.21 mm (0.0083") |
| Insulation Diameter | 0.95 mm ± 0.06 mm (0.04" ± 0.0024") 8 cores, Blue, white/blue; Orange, white/orange; Green, |
| Insulation Color | white/green; Brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 3 × 150D |
| Separator | |
| Material | PE |
| Specification | Translucent 4.3 × 0.35 mm |
| Inner Sheath | |
| Material | PVC |
| Min. Average Thickness | 0.45 mm (0.02") |
| Sheath Material | MDPE |
| Sheath Diameter | 6.8 mm ± 0.4 mm (0.27" ± 0.02") |
| Sheath Color | Black |
| Electrical | |
| Max. DC Resistance of a | 9.5 Ω@100 m (328.08 ft) |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.30 dB/100 m@250 MHz |
| Max. Attenuation | 34.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa, ≥100% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 433 mm × 433 mm × 230mm (17.05" × 17.05" ×9.06") (L |
| Packaging Dimensions | × W × H) |
| Transport Package | 495 mm × 457mm × 466mm (19.49" × 17.99" × 18.35") (L × W × H) |
| Net Weight | 13.5 kg ± 0.6 kg (29.76 lb ± 1.32 lb) |
| Gross Weight | 14.5 kg ± 0.6 kg (31.97 lb ± 1.32 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024 |
| Ordering Information | |
| Type | Model Description 305m Outdoor U/UTP CAT6 |
| Network Cable | Network Cable (Black, PE DH-PFM920-6UN sheath) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
