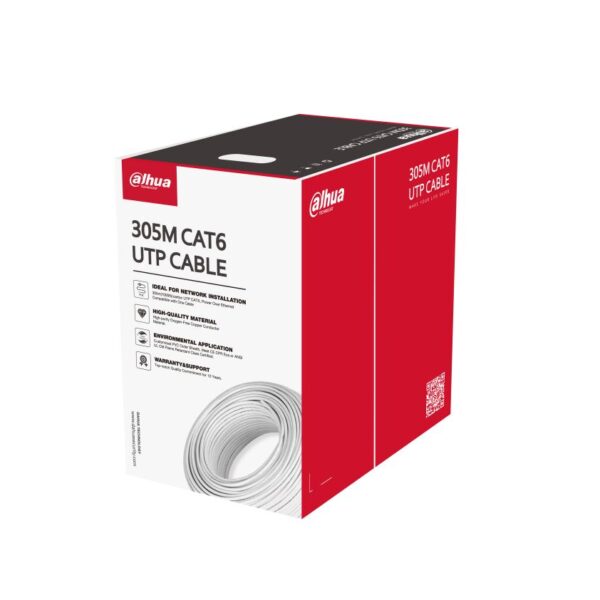

Cavo UTP CAT6 305 m LSZH rip cord (Classe Cca – s1a, d0, a1)
324,52 € IVA inclusa

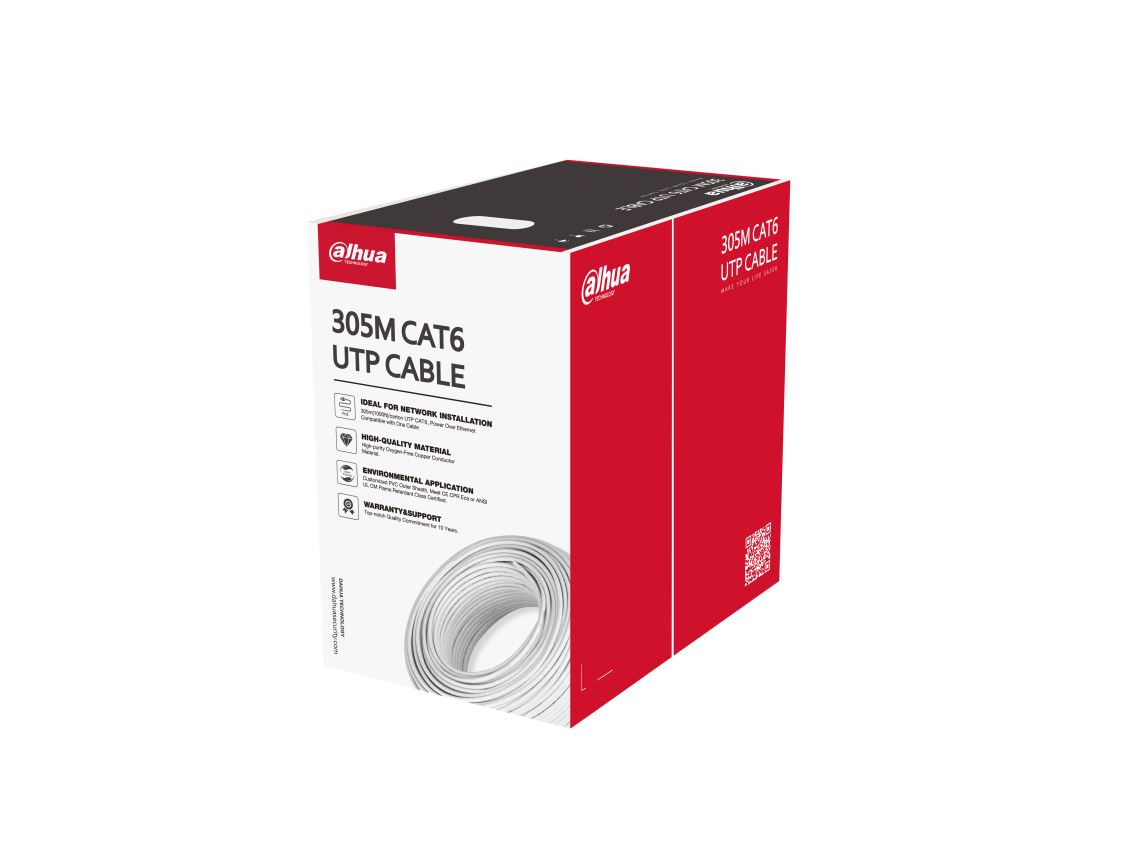

Matassa cavo UTP CAT6, lunghezza 305 m, con rip cord, conduttori in OFC 99.97%/0.53 mm, guaina in LSZH (CE CPR classe Cca – s1a, d0, a1), colore bianco
Datasheet
Documentazione
Disegni
Manuali
| Conductor | |
| Material | Oxygen free copper (99.97% purity) |
| Conductor Structure | 0.53 mm ± 0.01 mm (0.0209" ± 0.0004") |
| American Wire Gauge | 24AWG |
| Insulation | |
| Insulating Material | HDPE |
| Min. Average Thickness | 0.21 mm (0.0083") |
| Insulation Diameter | 0.95 mm ± 0.1 mm (0.0374" ± 0.0039") 8 cores, Blue, white/blue; Orange, white/orange; Green, |
| Insulation Color | white/green; Brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 500D |
| Separator | |
| Material | PE |
| Specification | Translucent 4.5 mm × 0.4 mm (0.18" × 0.0157") |
| Sheath | |
| Min. Average Thickness | 0.5 mm (0.02") |
| Sheath Material | LSZH |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥39.3 dB/100 m@250 MHz |
| Max. Attenuation | 34.8 dB/100 m@250 MHz |
| Return Loss | ≥17.3 dB/100 m@250 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥10 MPa, insulation≥16 Mpa |
| Elongation at Break | Sheath≥125%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at | ≥10% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥8 MPa,≥100% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Comply with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft) 305 m (1,000 ft) a carton, one carton with 2 inner |
| Packaging Method | cartons 406 mm × 404 mm × 216 mm (15.98" × 15.91" × 8.5") (L |
| Packaging Dimensions | × W × H) |
| Transport Package | 455 mm × 435 mm × 436 mm (17.91" × 17.13" × 17.17") (L × W × H) |
| Net Weight | 11.0 kg ± 0.5 kg (24.25 lb ± 1.10 lb) |
| Gross Weight | 12.0 kg ± 0.5 kg (26.46 lb ± 1.10 lb) |
| Compliance Standard | |
| Compliance Standard | Q/DXJ 067-2024, EN50575 |
| Flame-Retardant Standard | |
| Compliance Standard | EN50575 |
| Ordering Information | |
| Type | Model Description 305m U/UTP CAT6 Network |
| Network Cable | DH-PFM923I-6UN-CC Cable (White, LSZH, CPR Cca) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
