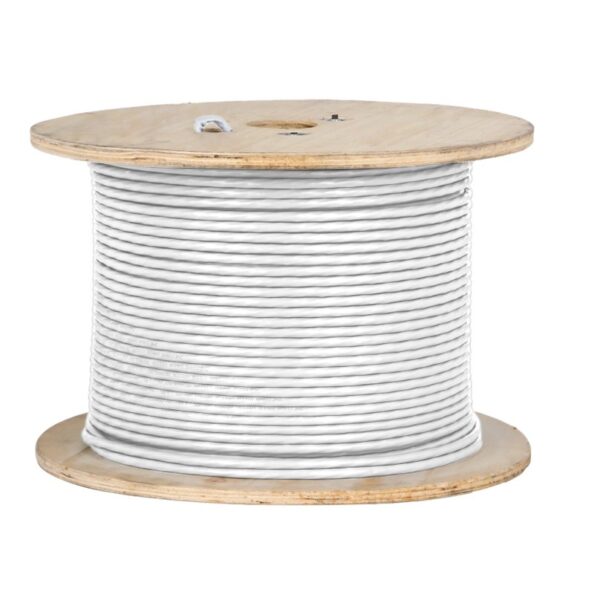

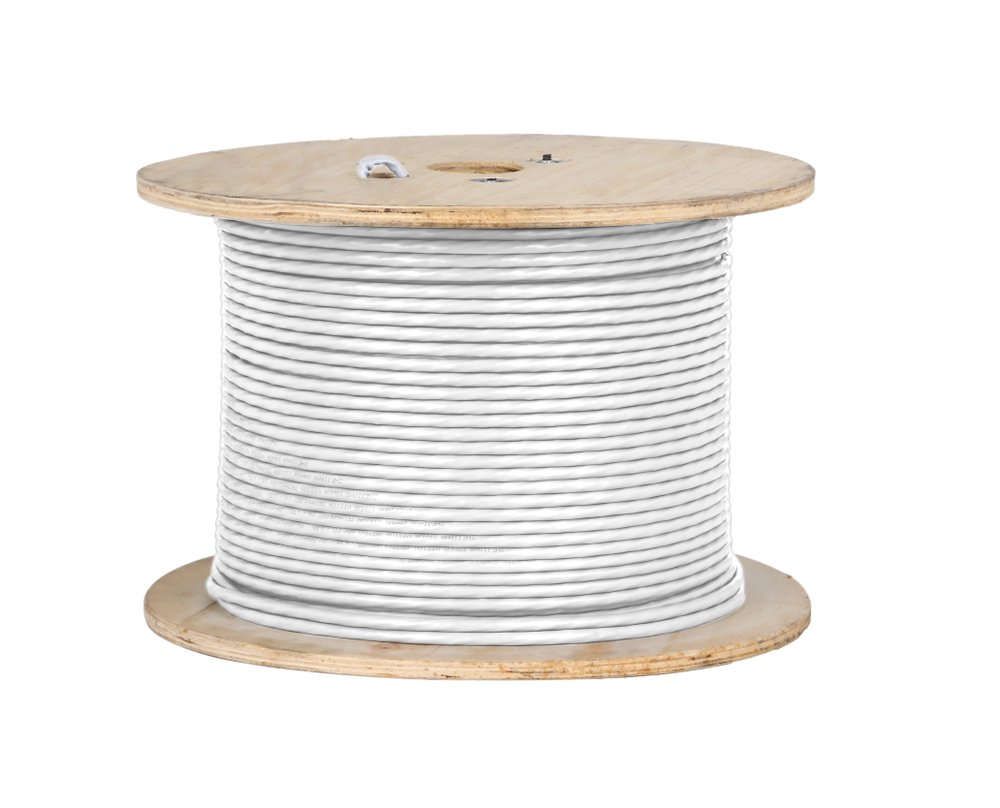

Matassa cavo UTP CAT6A, lunghezza 305 m, con rip cord, conduttori in OFC 99.97%/0.57 mm, guaina in PVC (CPR E Class), colore bianco
Datasheet
Documentazione
Manuali
| Conductor | |
| Material | Oxygen free copper (99.97% purity) |
| Conductor Structure | 0.57 mm ± 0.01 mm (0.0224" ± 0.0004") |
| American Wire Gauge | 23AWG |
| Insulation | |
| Insulating Material | Foaming PE |
| Min. Average Thickness | 0.21 mm (0.0083") |
| Insulation Diameter | 1.07 mm ± 0.1 mm (0.0421" ± 0.004") 8 cores, Blue, white/blue; Orange, white/orange; Green, |
| Insulation Color | white/green; Brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 150D × 3 |
| Separator | |
| Material | PE |
| Specification | Translucent 4.7 mm × 0.6 mm (0.1850" × 0.0236") |
| Wrapping Tape | |
| Material | Plastic-aluminum-plastic |
| Thickness | 0.07 mm × 24 mm (0.0028" × 0.9449") |
| Sheath Color | White |
| Electrical | |
| Max. DC Resistance of a | 7.35 Ω/100 m |
| Min. Insulation Resistance | 5000 MΩ·km |
| Max. DC Resistance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1kV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 Ω ± 15 Ω |
| Near-end Crosstalk | ≥33.8 dB/100 m@500 MHz |
| Max. Attenuation | ≥45.3 dB/100 m@500 MHz |
| Return Loss | ≥15.2 dB/100 m@500 MHz |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥10 Mpa |
| Elongation at Break | Sheath≥150%, insulation≥200% |
| Installation Bending Radius | >15 times of outer cable diameter |
| Conductor Elongation at | ≥15% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Color Migration Resistance | No migration |
| Elongation at Break after | ≥12.5 MPa,≥125% |
| Low Temperature Bending | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Installation Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Storage Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Storage Humidity | <60% (RH) |
| Security | |
| Vertical Flame Test | Complies with IEC 60332-1-2 |
| Packaging | |
| Cable Length | 305.0 m ± 2 m (1,000.66 ft ± 6.56 ft) |
| Packaging Method | 305.0 m (1000.66 ft) a roll, plywood wooden shaft 300 mm × 300 mm × 320 mm (11.81" × 11.81" × 12.60") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | 13 kg ± 0.50 kg (28.66 lb ± 1.10 lb) |
| Gross Weight | 14.50 kg ± 0.50 kg (31.97 lb ± 1.10 lb) |
| Compliance Standard | |
| Compliance Standard | ANSI/TIA-568.2-D |
| Flame-Retardant Standard | |
| Compliance Standard | EN50575 |
| Ordering Information | |
| Type | Model Description 305m U/UTP CAT6A Network |
| Network Cable | DH-PFM920I-6AU-C Cable (White, CPR Eca) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
