Pannello solare monocristallino 275 W
535,58 € IVA inclusa

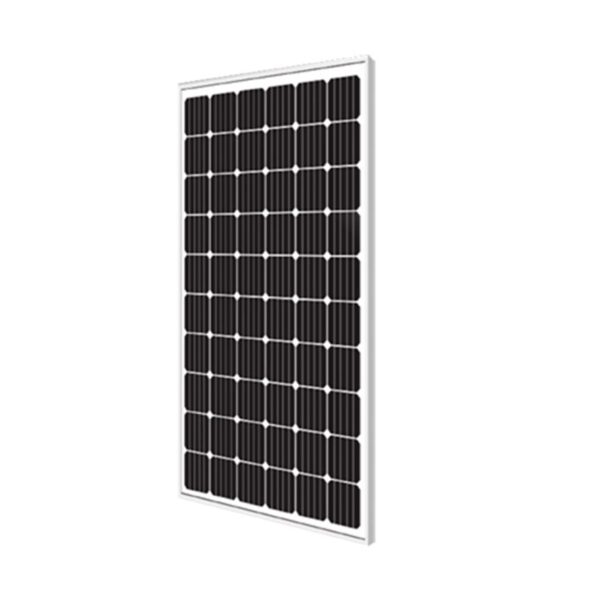

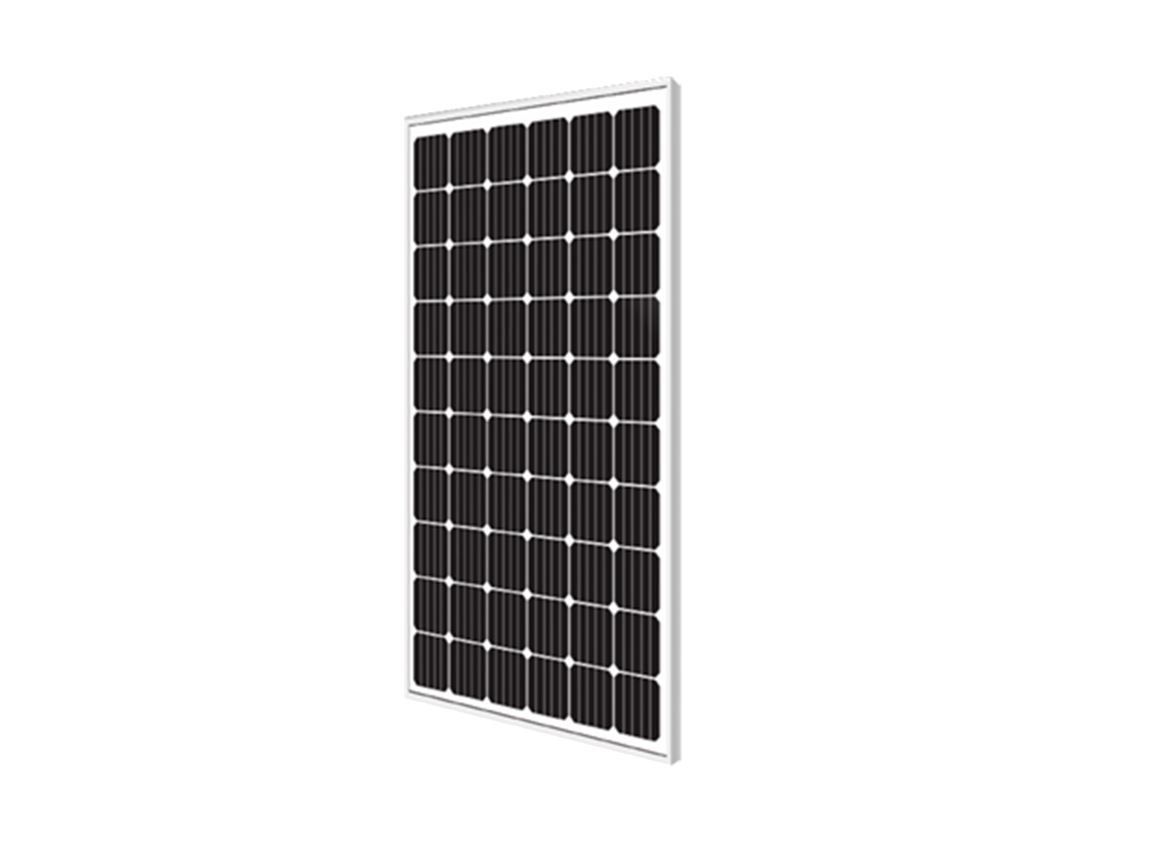

Pannello solare monocristallino da 275 W
Datasheet
Disegni
| Solar Panel | |
| Type | Monocrystalline silicon |
| Max. Power | 275 W |
| Operating Voltage | 32.66 V |
| Operating Current | 8.42 A |
| Short Circuit Current | 8.9 A |
| Open Circuit Voltage | 39.63 V |
| Conversion Rate of Solar Panel | 19.29% |
| Light Conversion Rate of Silicon | ≥22% |
| Chips | Front side: 5400 Pa |
| Max. Mechanical Load | Rear side: 2400 Pa |
| Dielectric Strength | 1000 V |
| Protection | IK07 |
| Power-to-temperature | –0.42%/K |
| Current-to-temperature | 0.04%/K |
| Voltage-to-temperature | –0.3%/K |
| Main Body Material | Silicon; tempered glass; aluminium frame |
| Silicon Chip Size | 105 mm × 210 mm (4.13" × 8.27") (L × W) |
| Silicon Chip Array | 4 × 15 |
| Port | |
| Output Port | Compatible MC4 connector |
| General | |
| Product Dimensions | 1.38") (L × W × H) 1659 mm × 919 mm × 166 mm (65.31" × 36.18" × |
| Packaging Dimensions | 6.54") (L × W × H) |
| Packaging Method | 2 pieces in each carton |
| Net Weight | 14 kg (30.86 lb) |
| Gross Weight | 49.5 kg (109.13 lb) |
| Environment | |
| Operating Altitude | <3000 m (9842.52 ft) Locations with exposure to solar radiation for more |
| Applicable Area | than 3.5 hours per day |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Operating Humidity | <95% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | <95% (RH) |
| Ordering Information | |
| Type | Model Description 275W Monocrystalline Silicon |
| Solar Series | DH-PFM371-M275 Solar Module |
| Dimensions (Mm[Inch]) | |
| 830.0 [32.68] | 35.0 [1.38] The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
