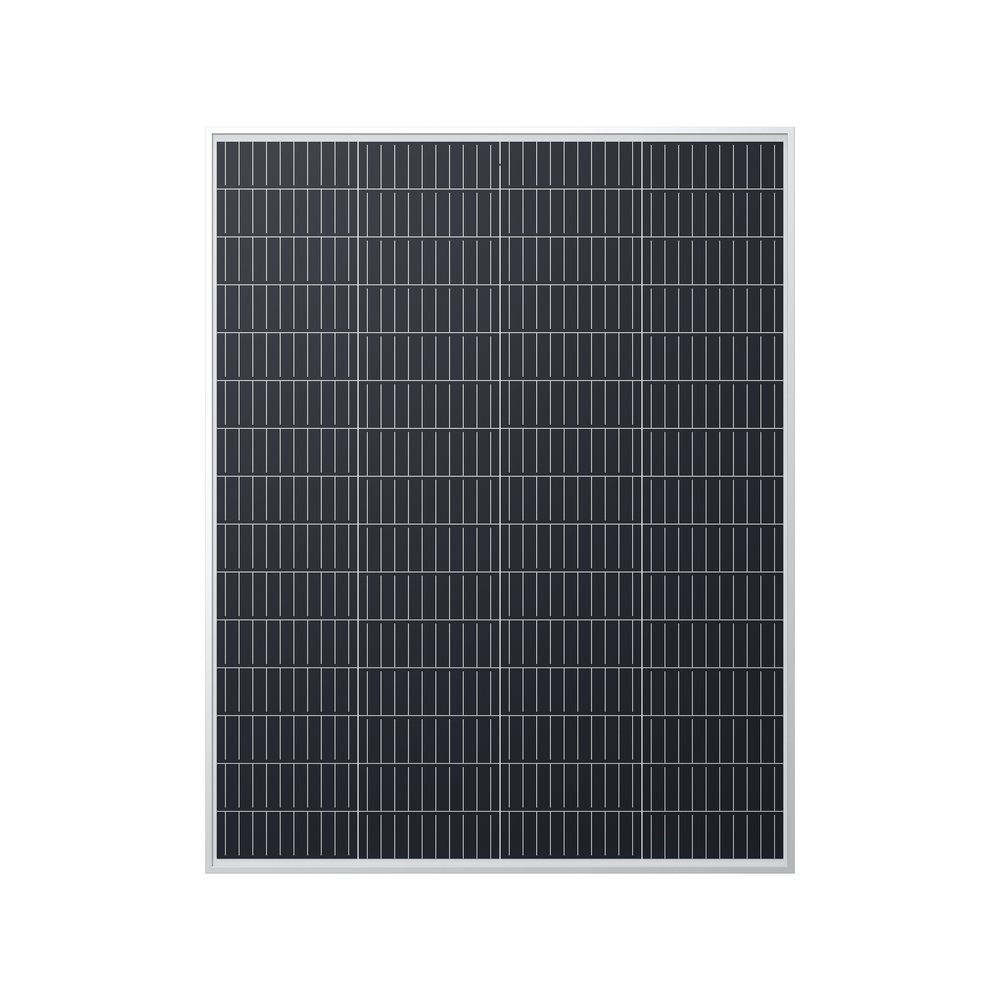

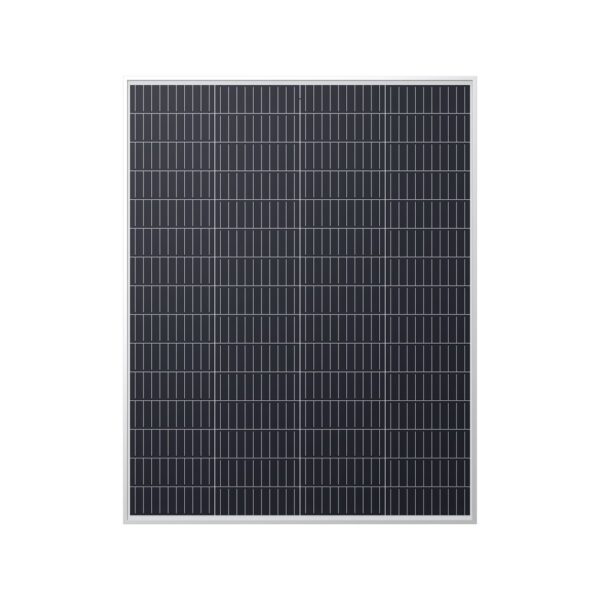

Pannello solare monocristallino da 180 W
Datasheet
Disegni
| Type | Monocrystalline silicon |
| Max. Power | 180W |
| Output Voltage | 32.66 V |
| Operating Current | 5.51 A |
| Short Circuit Current | 6.0 A |
| Open Circuit Voltae | 39.63 V |
| Conversion Rate of Solar | 18.34% |
| Light Conversion Rate of | ≥22% |
| Silicon Chips | Front side: 5400 Pa |
| Max. Mechanical Load | Rear side: 2400 Pa |
| Dielectric Strength | 1000 V |
| Protection | IK07 |
| Power-to-temperature | -0.42%/K |
| Current-to-temperature | 0.04%/K |
| Voltage-to-temperature | -0.3%/K |
| Main Body Material | Silicon; tempered glass; aluminium frame |
| Silicon Chip Size | 70 mm × 210 mm (2.76" × 8.27") (L × W) |
| Silicon Chip Array | 4 ×15 |
| Port | |
| Output Port | Compatible MC4 connector |
| General | |
| Product Dimensions | 1.38") (L × W × H) 1164 mm × 929 mm × 148 mm (45.83" × 36.57" × |
| Packaging Dimensions | 5.83") (L × W × H) |
| Packaging Method | 2 pieces in each carton |
| Net Weight | 9.5 kg (20.94 lb) |
| Gross Weight | 38 kg (83.78 lb) |
| Operating Altitude | <3000 m (9842.52 ft) Locations with exposure to solar radiation for more |
| Applicable Area | than 3.5 hours per day |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Operating Humidity | < 95% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | < 95% (RH) |
| Ordering Information | |
| Type | Model Description 180W Monocrystalline Silicon Solar |
| Solar Series | DH-PFM371-M180 Module |
