Alimentatore enclosed 12V 2A
25,62 € 10,25 € IVA inclusa
Alimentatore enclosed 12V 4A
39,04 € 15,62 € IVA inclusa

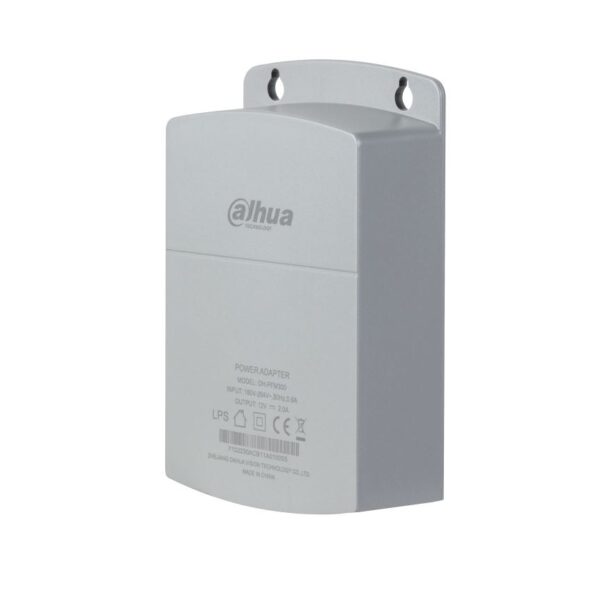

Alimentatore enclosed 12 Vdc 2A, 1 uscita a morsetti, protezione V0
Datasheet
Disegni
| Model | DH-PFM300 |
| Rated input | AC180~264V, 50/60Hz, 0.6A |
| Efficiency | 82% |
| no-load power consumption | <0.5W |
| Output voltage | DC12V (±5%) |
| Output current | 2A (±2%) |
| Protection | Accurate over current, voltage load protection |
| Working temperature | -30℃~+70℃(-22℉~+158℉) |
| Working humidity | <90% RH |
| Weight | 160g(0.35lb) |
| Dimension(LxWxH) | 88mmx37mmx138mm (3.46”x1.46“x5.43”) |
| Installation | Wall mount |
| Color | Grey |
| Input | Palisade terminal |
| Output | DC output wire 60mm (interface: φ5.5×φ2.1) |
| Certification | CE |
