Alimentatore box 12 Vdc 10A, 9 uscite a morsetti
208,62 € 104,31 € IVA inclusa
Alimentatore box 12 Vdc 4A, 5 uscite a morsetti
101,26 € 50,63 € IVA inclusa
Alimentatore box 12 Vdc 20A, 19 uscite a morsetti
COD:
PFM343-19CH
Categoria: Alimentatori e batterie
269,62 € 134,81 € IVA inclusa

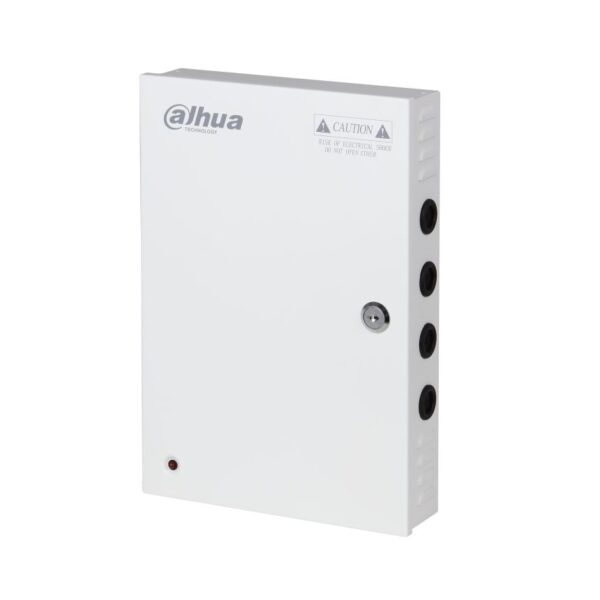

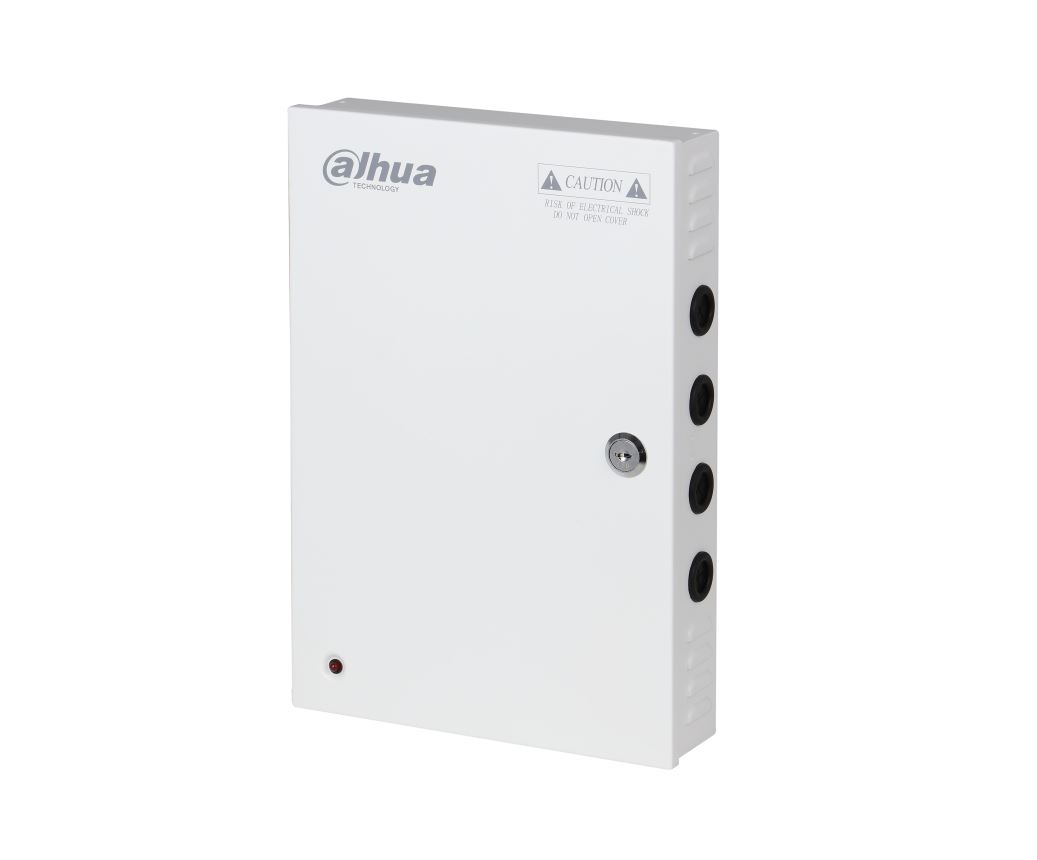

Alimentatore box 12 Vdc 20A, 19 uscite a morsetti
Datasheet
| Model | DH-PFM343-19CH |
| Input Voltage Range | AC90~264V |
| Outputs | 19 x 12VDC (-3%~+7%) outputs |
| Max. output | 20A, 240W |
| Output Protection | 19 replacement fuses, max. per output 3A |
| Efficiency | 87% |
| No Load Power Consumption | <0.21W |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Surge Protected | Line to ground: 4000V Line to line: 2000V |
| ESD | Contact discharge: 6000V Air discharge: 8000V |
| Working Temperature | – 20 ℃ ~+ 45 ℃ ( -4 ℉ ~+ 113 ℉ ) |
| Working Humidity | <90% RH |
| Weight | 2.52kg(5.56lb) |
| Dimension(LxWxH) | 315mmx215mmx53mm (12.4”x8.46”x2.09”) |
| Installation | Wall mount |
| Color | White |
| Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
