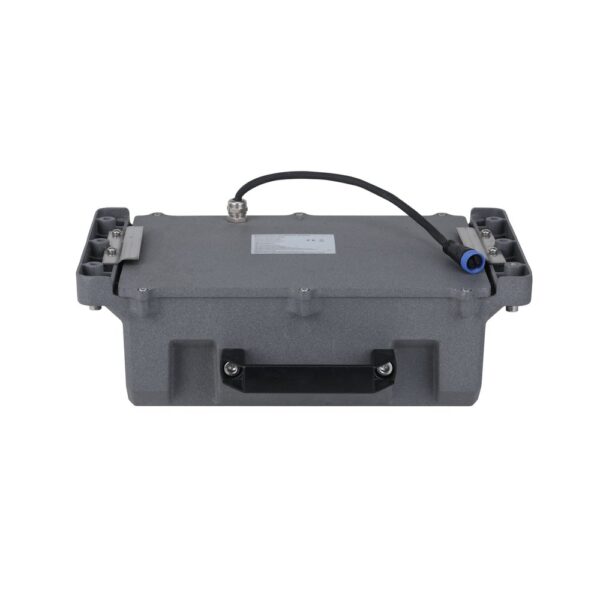

Batteria al litio 9A per pannelli solari, grado di protezione IP66
| Grade | M15 female connector |
| Connection | DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363L- |
| Applicable Device | SD1 |
| General | |
| Product Dimensions | Inner: 282.0 mm × 209.0 mm × 98.5 mm (11.10" × 8.23" × 3.88") |
| Material | Die casting aluminum |
| Color | Grey |
| Net Weight | 8.5 kg (18.74 lb) |
| Gross Weight | 9.8 kg (21.61 lb) 459 mm × 349 mm × 209 mm |
| Packaging Dimensions | (18.07" × 13.74" × 8.23") |
| Packaging Method | 1 pc in each carton |
| Operating Temperature | –20°C to 60°C (–4°F to 140°F) |
| Operating Humidity | <95% (RH) |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Humidity | <95% (RH) |
| Charging Voltage | Max.DC14.6V |
| Max.Current | Charging: 10A, Discharging: 10A CE: EN 61000-6-3, EN IEC 61000-6-1 |
| Certification | FCC: FCC Part 15, Subpart B |
| Ordering Information | |
| Type | PFM372-L45-4S14P Integrated Solar Lithium Bttery |
| Package Information | |
| S5.0L Wrench | 6 |
