Alimentatore DIN 48V 5A 240 W
303,78 € 121,51 € IVA inclusa
Alimentatore enclosed 12V 2A
25,62 € 10,25 € IVA inclusa

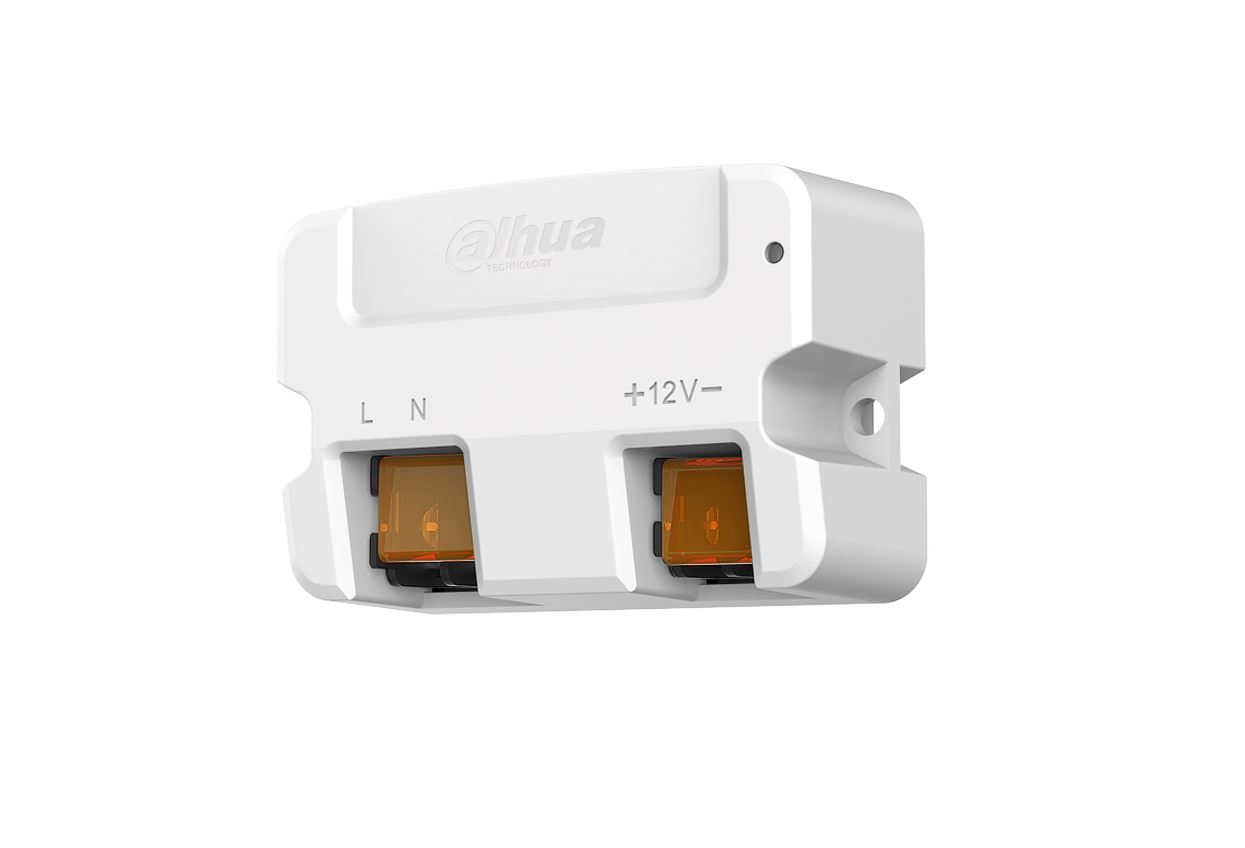

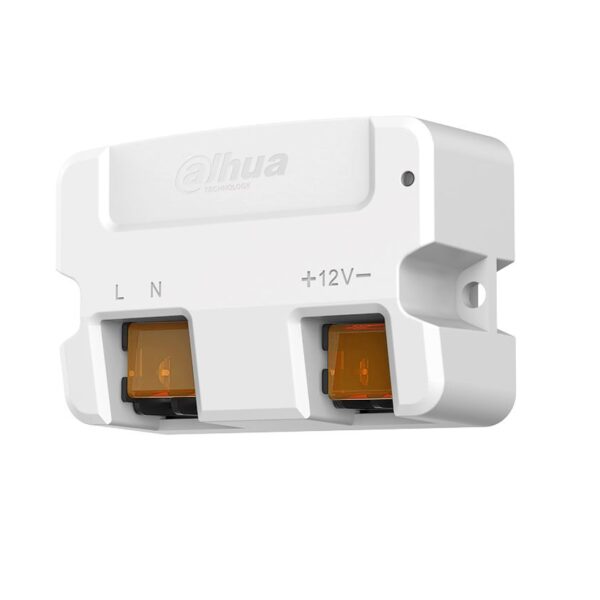

Alimentatore enclosed 12 Vdc 1.5A, 1 uscita a morsetti
Datasheet
| Model | DH-PFM320D-015 |
| Rated input | AC100~240V, 50/60Hz, 0.6A |
| Output voltage | DC12V (+7%, -3%) |
| Output current | Max. 1.5A (+70℃) |
| Protection | Surge protection, over temperature protection, over current, voltage load protection |
| Working temperature | -30℃~+70℃(-22℉~+158℉) |
| Working humidity | 5%~95% RH |
| Weight | 95g(0.21lb) |
| Dimension(LxWxH) | 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“) |
| Installation | Plane installation, can be installed in junction boxes and wall mount brackets |
| Color | White |
| Input plug | 2-pin plug(L/N) |
| Output plug | 2-pin plug(+12V-) |
| Certification | CE, FCC |
Informazioni addizionali
