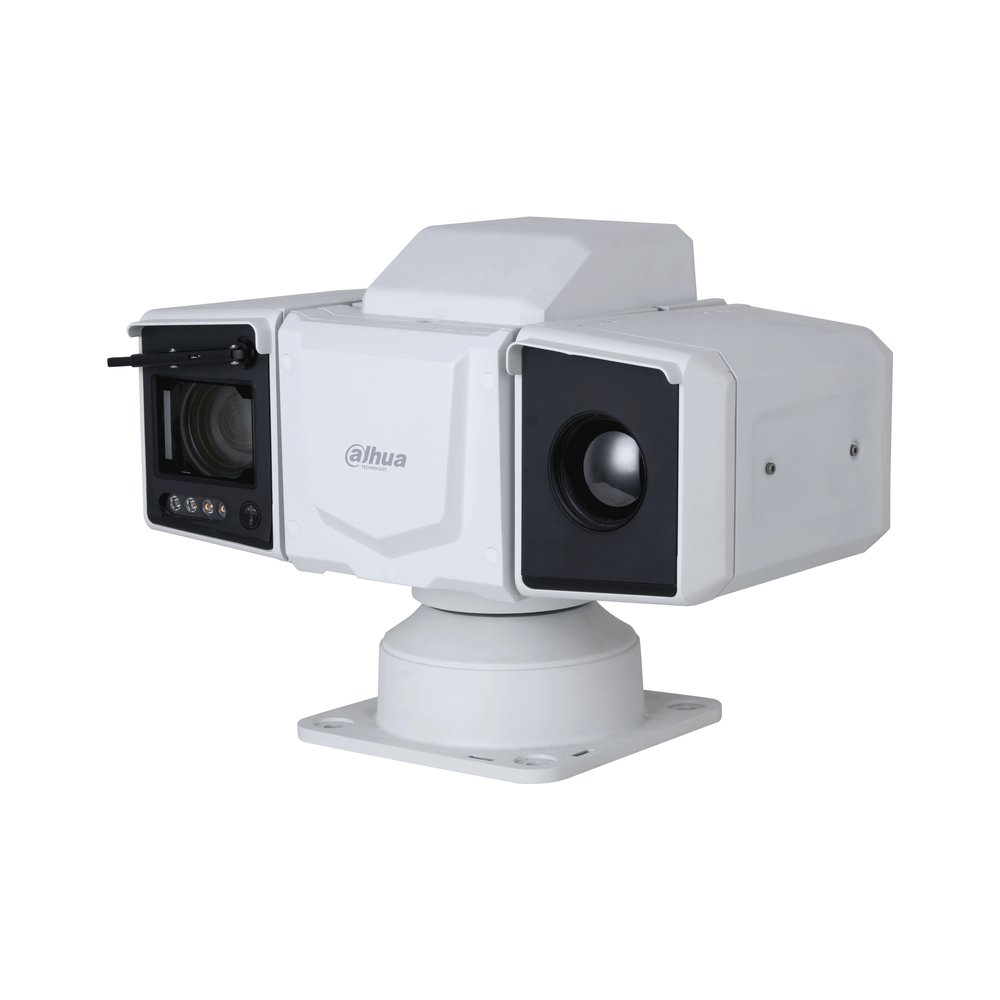

Mini PTZ termica ibrida IP AI 400x300/4 MP 50 mm/zoom 45x temp. - immagine 1

Mini PTZ termica ibrida IP AI 400×300/4 MP 50 mm/zoom 45x temp.

Name: Mini PTZ termica ibrida IP AI 400x300/4 MP 50 mm/zoom 45x temp.
Brand: Dahua
SKU: TPC-PT8441MA-TB50Z45
Price: 19638.34 EUR
Availability: BackOrder

Dahua

COD: TPC-PT8441MA-TB50Z45 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

19.638,34 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 39.276,68 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera termica ibrida brandeggiata IP AI da interno/esterno IP66 con heater, risoluzione termica 400×300 a 25fps, sensibilità 35 mK, ottica termica 50 mm, spettro visivo 8~14 µm, sensore standard 1/1.8" 4 MP, ottica standard 5.5~248 mm, zoom ottico 45x, luminosità 0.001 lux F1.4, portata illuminazione fino a 100 m, ICR, PAN 360° endless, TILT -90°~+90° con 300 preset, 5 scan, 8 tour e 5 pattern, 1 porta LAN 10/100 Mbps, 1 porta RS485, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, WDR, 2/3D NR, IVS (protezione perimetrale), rilevamento calore e temperature (12 regole punto/linea/area, range -20°~+150°/0°~+550°), traccia punti caldi/freddi, classificazione persone/veicoli, slot micro SD card (512 GB), alimentazione 10~36 Vdc <50 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Effective Pixels	400 (H) × 300 (V)
Pixel Pitch	17 μm
Spectral Range	8 μm–14 μm
Sensitivity (NETD)	≤35 mK (@f/1.0)
Focal Length	7.5 mm; 13 mm; 25 mm; M25 mm; 50 mm 7.5 mm: H: 51.2°; V: 38.4° 13 mm: H: 30.4°; V: 22.5°
Field of View	25 mm/M25 mm: H: 15.49°; V: 11.65° 50 mm: H: 7.78°; V: 5.84° 7.5 mm: Athermalized 13 mm: Athermalized
Thermal Focus Control	25 mm: Athermalized M25 mm: Auto/semi-auto/Manual 50 mm: Athermalized 7.5mm: 0.9 m (2.95 ft) 13 mm: 2.5 m (8.2 ft)
Close Focus Distance	25 mm: 9.2 m (30.18 ft) M25 mm: 0.5 m (1.64 ft) 50 mm: 37 m (121.39 ft)
Digital Detail Enhancement	Yes
Thermal Image	Electronic Image Stabilization (EIS)
Digital Zoom	19 levels
Thermal AGC	Auto/Manual
Thermal Noise Reduction	2D NR/3D NR
Image Flip	180° 18 (white hot/black hot/fusion/rainbow/golden autumn/
Color Palettes	midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter) Low temperature mode: –20 °C to +150 °C (–4 °F to +302 °F)
Temperature	High temperature mode:
Measurement Range	0 °C to +550 °C (+32 °F to +1022 °F) Auto mode: –20 °C to +550 °C (–4 °F to +1022 °F) Max. (±2 °C, ±2%);
Temperature	Operating temperature: –20 °C (–4°F) to
Measurement Accuracy	+60 °C (+302 °F) Spot: 12
Temperature	Line: 12
Measurement Mode	Area: 12 Supports 12 rules simultaneously
Visible
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
Pixel	4 MP Center ≥ 1200 TVL
Horizontal Definition	Edge ≥ 900 TVL Color: 0.001 lux@F1.4
Min. Illumination	Black & white: 0.0001 lux@F1.4 0 lux (IR on)
Visible AGC	Auto/Manual
Visible Noise Reduction	2D NR/3D NR
S/N Ratio	>55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp;
White Balance	street lamp; natural
Defog
Image Stabilization	Electronic Image Stabilization (EIS)
Electronic Shutter Speed	1 s–1/30,000 s (auto/manual)
BLC	Yes
WDR	Yes
HLC	Yes
Day/Night	Auto (ICR); Color; B/W
Iris Control	Auto
Image Flip	180°
Exposure Compensation	Yes
Visible Focus Control	Auto/semi-auto/manual
Focal Length	5.5 mm–248 mm H: 63.5°–1.9°
Field of View	V: 37.4°–1.1°
Close Focus Distance	0.5 m–2 m (1.64 ft–6.56 ft)
Illuminator On/Off Control	Auto/Manual 100 m (328.08 ft, IR)
Illumination Distance	50 m (164.04 ft, white light)
Audio And Video
Video Compression	H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300
Resolution	(default) Visible: Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default) Sub stream: 704 × 576; 352 × 288; 352 × 288 (default) Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default
Video Frame Rate	Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Image Encoding Format	JPEG
Ptz
Pan/Tilt Range	Tilt: –90° to +90° Pan: 0.1°/s –100°/s
Manual Control Speed	Tilt: 0.1°/s –80°/s Pan: 0.1°/s –100°/s
Preset Speed	Tilt: 0.1°/s –80°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Privacy Masking	4 blocks
Idle Motion	Preset; auto pattern; auto tour; pan; progressive scan
Function
Two-way Audio	Yes HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
Network Protocol	FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP; Multicast; SFTP; 802.1x
Region of Interest (RoI)	Yes
Storage
Micro SD Card (Max.)	512 GB
Interoperability	ONVIF; CGI; Dahua SDK IE: IE8 and later (includes 360 brower and sogou brower)
Browser	Chrome: 42 and earlier Firefox: 42 and earlier
User/Host	Up to 12 (total bandwidth: 64 MB) Authorized username and password; attached MAC
Security	address; HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2
User Management	levels): management group and user group Network disconnection detection; IP conflict detection;
Malfunction Detection	memory card state detection; memory space detection
PIP	Yes (Intelligence automatically turns off when PIP is on)
Intelligence
Heat Detection	Yes
Cold/Hot Spot Trace	Yes
IVS (Perimeter Protection)	Yes. Supports tripwire and intrusion.
Target Distinction	Human/Vehicle Classification
Port
Analog Output	1 × CVBS output; BNC port
Network Port	1 × RJ-45 (10/100 Base-T)
Alarm Input	2
Alarm Output	2
Audio Input	1
Audio Output	1
RS-485	1
Power
Power Supply	Wide input voltage 10–36 VDC Basic: 30 W (illuminator off, heating off)
Power Consumption	Max: 43 W (illuminator on, heating off); 50 W (illuminator on, heating on)
Environment
Operating Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +80 °C (–40 °F to +176°F)
Physical Characteristics
Protection	IP66 Surge protection: 6 kV
Reliability	Air discharge: 15 kV Contact discharge: 8 kV
Structure
Product Dimensions	10.9") (L × W × H) 485 mm × 360 mm × 390 mm (19.09" × 14.17" × 15.35")
Packaging Dimensions	(L × W × H)
Net Weight	≤9 kg (19.84 lb)
Gross Weight	≤12 kg (26.46 lb)
Focal Length	Min. Distance Max. Distance
7.5 mm	1 m (3.28 ft) 5 m (16.40 ft)
13 mm	2 m (6.56 ft) 10 m (32.81 ft)
25 mm	4 m (13.12 ft) 20 m (65.62 ft)
M25 mm	4 m (13.12 ft) 21 m (68.90 ft)
50 mm	9 m (29.53 ft) 45 m (147.64 ft)
Dri Distance
Focal Length	Distance Distance Distance ① ② ③ Vehicle: 676 m Vehicle: 169 m Vehicle: 85 m (2,217.85 ft); (554.46 ft); (278.87 ft);
7.5 mm	Human: 221 m Human: 55 m Human: 28 m (725.07 ft) (180.45 ft) (91.86 ft) Vehicle: 1,173 m Vehicle: 293 m Vehicle: 147 m (3,848.43 ft); (961.29 ft); (482.28 ft);
13 mm	Human: 382 m Human: 96 m Human: 48 m (1,253.28 ft) (314.96 ft) (157.48 ft) Vehicle: 2,255 m Vehicle: 564 m Vehicle: 282 m (7,398.29 ft); (1,850.39 ft); (925.20 ft);
25 mm/M25mm	Human: 735 m Human: 184 m Human: 92 m (2,411.42 ft) (603.67 ft) (301.84 ft) Vehicle: 4,510 m Vehicle: 1 127 m Vehicle: 564 m , (14,796.59 ft); (3,697.51 ft); (1,850.39 ft);
50 mm	Human: 1,471 m Human: 368 m Human: 184 m (4,826.12 ft) (1,207.35 ft) (603.67 ft)
Ordering Information
Type	Model Description Thermal: 7.5 mm; DHI-TPC-PT8441MA-TB7Z45V1- Visible: 5.5 mm–248 mm BC-IR-S22 PTZ outlet: side Illuminator type: IR Thermal: 13 mm; DHI-TPC-PT8441MA-TB13Z45V1- Visible: 5.5 mm–248 mm BC-IR-S22 PTZ outlet: side Illuminator type: IR Thermal: 25 mm;
