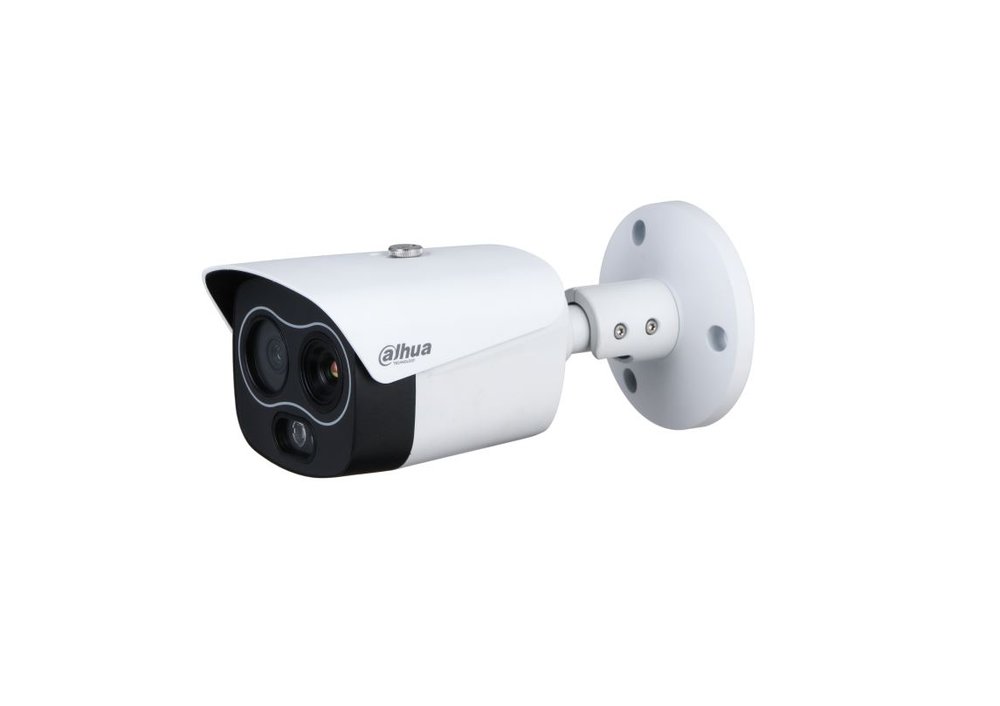

Bullet termica ibrida IP/Wi-Fi AI 256x192/4 MP 3.5/4 mm - immagine 1

Bullet termica ibrida IP/Wi-Fi AI 256×192/4 MP 3.5/4 mm

Name: Bullet termica ibrida IP/Wi-Fi AI 256x192/4 MP 3.5/4 mm
Brand: Dahua
SKU: TPC-BF1241-B3F4-DW-WIFI-S8
Price: 887.55 EUR
Availability: BackOrder

Dahua

COD: TPC-BF1241-B3F4-DW-WIFI-S8 Categorie: Telecamere termiche, Videosorveglianza Tag: Termica

887,55 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.775,10 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

TPC-BF1241-B3F4-DW-WIFI-S8 – Telecamera di videosorveglianza Termica WiFi – IP PoE ONVIF – Eureka – Rilevamento fumo, incendi e allarme – Doppia ottica: termica (3.5mm) / visibile (4mm) – Risoluzione 4MP per l’ottica vis

Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download

ONVIF® PoE IP – Telecamera Termica Professionale WiFi – Dahua – TPC-BF1241-B3F4-DW-WIFI-S8

Tecnologia Dual-Lens, doppia ottica (Termica 3.5mm / Visibile 4mm 4MP )

Tecnologia Dual-Sensor , doppio sensore (Vanadium Oxide Uncooled Focal Plane Detector – Termica / 1/2.7″ 4MP CMOS – Visibile)

Risoluzione 256×192 (ottica termica) / 4MP (ottica visibile)

Datasheet

Scheda Tecnica

Thermal
Detector Type	Vanadium oxide uncooled focal plane detector
Max. Resolution	256 (H) × 192 (V)
Pixel Pitch	12 μm
Spectral Range	8 μm–14 μm
Thermal Sensitivity	< 40 mK (@f/1.0, 25 Hz, 300 K)
(NETD)	3.5 mm: H: 50.6°; V: 37.8°
Field of View	7 mm: H: 24°; V: 18° 10 mm: H: 17.3°; V: 13.1° 3.5 mm: 0.5 m (1.64 ft)
Close Focus Distance	7 mm: 1 m (3.28 ft) 10 mm: 2 m (6.56 ft) 3.5 mm: Vehicle: 389 m (1,276 ft); Human: 146 m (479 ft) 7 mm: Vehicle: 778 m (2,552 ft);
Detection Distance	① Human: 292 m (958 ft) 10 mm: Vehicle: 1,111 m (3,645 ft); Human: 417 m (1,368 ft) 3.5 mm: Vehicle: 97 m (318 ft); Human: 38 m (125 ft) 7 mm: Vehicle: 194 m (636 ft) ;
Recognition Distance	② Human: 75 m (246 ft) 10 mm: Vehicle: 278 m (912 ft); Human: 107 m (351 ft)
Identification Distance	③ Human: 38 m (125 ft) 10 mm: Vehicle: 139 m (456 ft) ; Human: 54 m (177 ft)
Aperture	F1.0
Digital Detail	Yes
Digital Zoom	16 levels
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
Image Flip	90°; 180°; 270° 18 (white hot/black hot/fusion/rainbow/golden autumn/
Color Palettes	midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter)
Fusion Mode	3 (Warm color; Cool color; Ironred)
Visible
Image Sensor	1/2.7'' CMOS
Max. Resolution	2336 (H) × 1752 (V)
Pixel	4 MP
Electronic Shutter Speed	1/30,000 s–1 s Color: 0.05 lux
Min. Illumination	Black & white: 0.005 lux 0 lux (IR on)
IR Illumination Distance	≥30 m (98.43 ft)
IR Illuminator On/Off	Auto; Manual
Control	4 mm: F1.6
Aperture	8 mm: F2.0 12 mm: F2.0 4 mm: H: 71.2°; V: 52°
Field of View	8 mm: H: 33.4°; V: 25° 12 mm: H: 22°; V: 16.6°
Focus Control	Fixed 4 mm: 1 m (3.28 ft)
Close Focus Distance	8 mm: 2.5 m (8.2 ft) 12 mm: 2.5 m (8.2 ft)
Day/Night	Auto (ICR); Color; B/W
BLC	Yes
WDR	DWDR
HLC	Yes Auto; Manual; Indoor; Outdoor; Tracking; Street lamp;
White Balance	Natural
AGC	Auto; Manual
Noise Reduction	2D NR; 3D NR
S/N Ratio	≥55 dB
Region of Interest (RoI)	Yes
Image Flip	90°; 180°; 270°
Exposure Compensation	Yes
Intelligence
General Intelligence	Tripwire; Intrusion Heat Detection & Alarm Cold & Hot Spot Trace
Advanced Intelligence	Human & Vehicle Classification Smoking Detection Call Detection
Video And Audio
Video Compression	H.265; H.264M; H.264H; H.264B; MJEPG Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default)
Resolution	Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
Thermal
Frame Rate	Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression	G.711a; G.711mu; PCM
Protocol
Edge Storage	Micro SD card (256 G)
Interoperability	ONVIF; CGI IE: IE 8 and later
Browser	Google: 42 and earlier Firefox: 42 and earlier
User/Host	10 Authorized username and password; attached MAC
Security	address; encrypted HTTPS; IEEE 802.1x; controlled network access
Network
Audio Input	1
Audio Output	1
Alarm Input	1
Alarm Output	1
RS-485	1 pair Standard No.: 802.11 Frequency: 2.4 GHz
Wi-Fi Optional	Transmission rate: 150 Mbps Transmission distance: 150 m (no shield, no disturbance)
Power
Power Supply	12 VDC (± 20%); PoE Basic: < 8 W (LED off, 12 VDC); 12 W (LED off, PoE)
Power Consumption	Max: < 14 W (LED on, 12 VDC); 20 W (LED on, PoE)
Environment
Operating Temperature	–30 °C to +50 °C (–22 °F to +122 °F)
torage Temperature	–30 °C to +70 °C (–22 °F to ﹢158 °F)
Operating Humidity	≤95%
Protection	IP67
Structure
Product Dimensions	(L × W × H)
Packaging Dimensions	(L × W × H)
Net Weight	≤ 0.9 kg (1.98 lb)
Gross Weight	≤ 1.3 kg (2.87 lb)
Heat Detection Distance
Focal Length	Recommended Distance Max. Distance
3.5 mm	14.6 m (47.9 ft) 22 m (72.18 ft)
7 mm	29.2 m (95.8 ft) 40 m (131.23 ft)
10 mm	41.7 m (136.81 ft) 60 m (196.85 ft)
Perimeter Protection Distance
Focal Length	Distance (Human) Distance (Vehicle)
3.5 mm	24.5 m (80.38ft) 72.5 m (237.86 ft)
7 mm	49 m (160.76 ft) 146.5 m (480.64 ft)
10 mm	70 m (229.66ft) 209 m (685.70 ft)
Ordering Information
Type	Part Number Description Thermal: 256 × 192 3.5 mm lens DHI-TPC-BF1241-B3F4-DW-S2 Visible: 4 MP 4 mm lens Thermal: 256 × 192 7 mm lens DHI-TPC-BF1241-B7F8-DW-S2 Visible: 4 MP 8 mm lens DHI-TPC-BF1241-B10F12- Thermal: 256 × 192 10 mm lens DW-S2 Visible: 4 MP 12 mm lens
Accessories
(Optional)	PFM320D Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
Optional:
Pole-mount bracket	Junction box Power adapter
