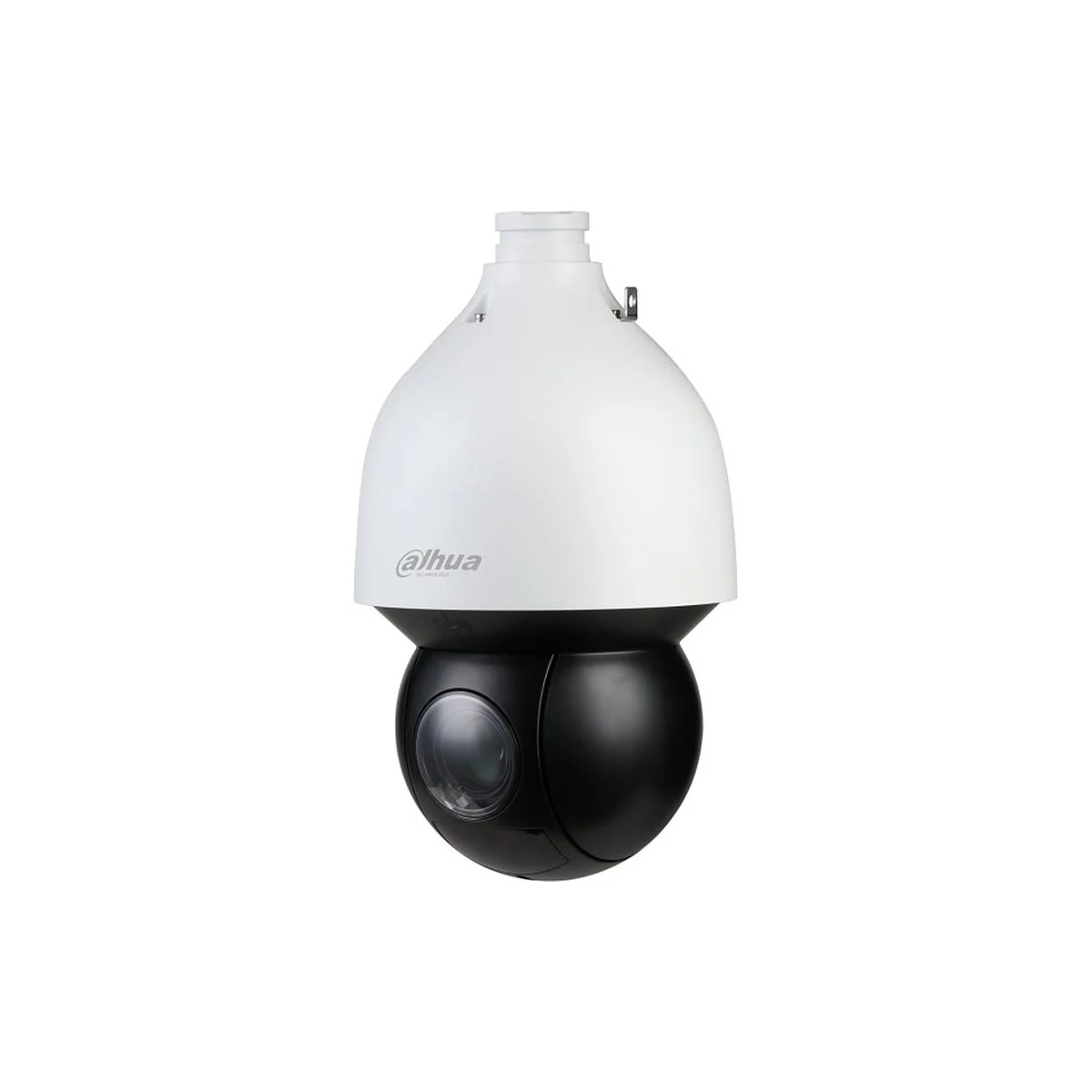

Telecamera PTZ IP AI WizSense Starlight, sensore CMOS progressivo 1/2.8″ da 4 MP, risoluzione 2560×1440 a 25/30 fps, ottica motorizzata 5~125 mm F1.6~F3.6 con zoom ottico 25x (angolo orizzontale 51.9°~3°), luminosità 0.005 lux F1.6 (0 lux con IR acceso), portata IR fino a 150 m, protezione perimetrale basata su deep learning, auto-tracking 3.0, IVS, SMD 4.0, velocità preset pan 400°/s e tilt 300°/s, 300 preset, 8 tour, 5 pattern, 5 scan, alimentazione PoE+, IP67, IK10
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1s–1/30,000s |
| Scanning System | Progressive 0.005 lux@F1.6 (Color, 30 IRE); |
| Min. Illumination | 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 5 mm–125 mm |
| Max. Aperture | F1.6–F3.6 |
| Field of View | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.6 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 2,500 m 987.5 m 500 m 250 m (8202.10 ft) (3239.83 ft) (1640.42 ft) (820.21 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | 180° Pan: 0.1°/s–300°/s |
| Manual Control Speed | Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | parking detection; people gathering; vehicle/human alarm classification; linkage tracking Supports face detection, capturing snapshots, uploading face snapshots, enhancing face images, |
| Face Detection | and selecting a preferred image among a group of snapshots. Attribute extraction is also supported Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes |
| Video Metadata | snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep |
| People Counting | learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy. |
| Auto Tracking | Yes |
| SMD | SMD 4.0 It triggers the IVS rule when a target is detected and |
| Auto Patrol | makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. Uses deep learning algorithms and works with back- end devices to accurately match targets, such as |
| Acupick | people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Video | |
| Video Compression | H.264+;MJPEG |
| Streaming Capability | 3 streams 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1920 × 960); 720p |
| Resolution | (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF/VGA @ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H264: 96 kbps–14848 kbps |
| Video Bit Rate | H265: 38 kbps–8960 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium |
| White Balance | lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | EIS |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view; multiple colors available |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G722.1; G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;R |
| Network Protocol | TP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP; UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Interoperability | CGI;SDK;ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DSS;DMSS;Easy4ip;Smart PSS;IVSS |
| Mobile Client | iOS;Android |
| Port | |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) Capture; recording; send email; preset; tour; pattern; |
| Alarm Linkage | alarm digital output; audio Motion/tampering detection; audio detection; network disconnection detection; IP conflict |
| Alarm Event | detection; memory card status detection; memory space detection |
| Power | |
| Power Supply | PoE+ (802.3at) Basic: 12 W |
| Power Consumption | Max: 21 W (illuminator + PTZ + Heater + Fan) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% IP67, IK10, TVS 6000 V lightning proof; surge |
| Protection | protection; voltage transient protection |
| Structure | |
| Product Dimensions | Φ190.0 mm × 332.0 mm (Φ7.48" × 13.07") |
| Net Weight | 4.7 kg (10.36 lb) |
| Gross Weight | 8.0 kg (17.64 lb) |
| Ordering Information | |
| Type | Model Description 4MP 25× Starlight IR WizSense Network PTZ DH-SD5A425GB-HNR |
| Camera | |
| PTZ Camera | 4MP 25× Starlight IR WizSense Network PTZ SD5A425GB-HNR |
| Included: | |
| PFB305W | DC24V/2.5A |
| Wall Mount Bracket | Power Adapter |
| Optional: | |
| PFA111 | Power Box Ceiling Mount Bracket |
| Mount Adapter | PFB301S-E |
| PFB301C | PFB303S Plane Mount |
| Ceiling Mount | Parapet Mount Bracket |
| Bracket | Bracket PFA151 |
| PFA120 | PFA150 Corner Mount Bracket |
| Junction Box | Pole Mount Bracket The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
